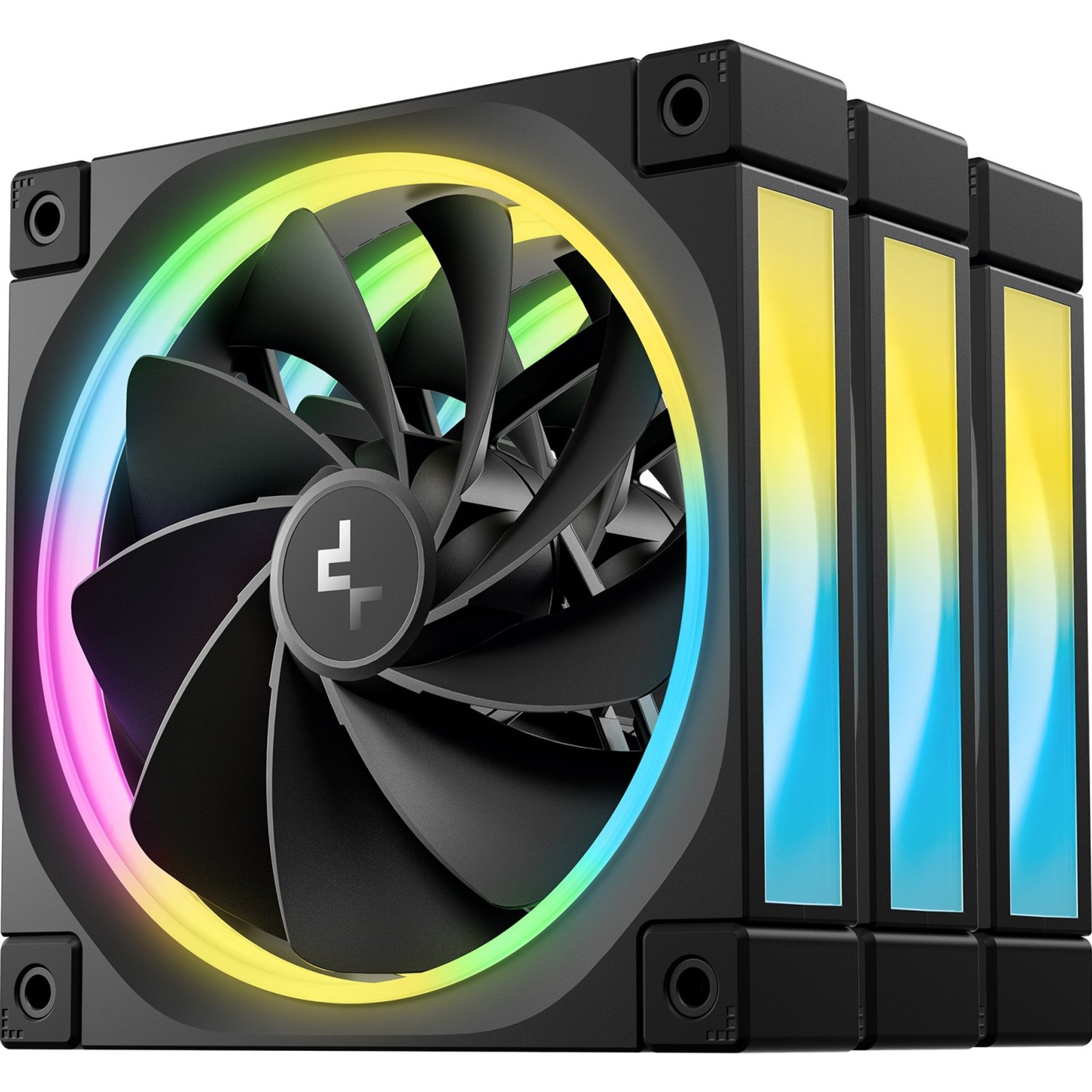

This 3-pack 120mm fan kit is engineered for optimized airflow, quiet operation, and eye-catching addressable RGB lighting. Featuring reverse blade designs, the fans present a clean and uniform lighting effect regardless of airflow direction, eliminating visible support struts on one side.
Each fan includes 36 addressable RGB LEDs that produce vibrant, customizable effects. The integrated 8-pin connectors streamline setup by combining PWM control and ARGB lighting into a single chainable connection, making installation neat and efficient.
Built with durable materials and supported by fluid dynamic bearings, these fans ensure long-lasting reliability and quiet performance. Anti-vibration rubber pads at each corner help dampen operational noise and reduce vibration transfer to the case.
Key Features:
Reverse Blade Design: Clean lighting effect from either intake or exhaust view
Addressable RGB LEDs: 36 LEDs per fan for customizable lighting
Daisy-Chain Design: Simplified wiring with 8-pin combined connectors
Quiet Operation: Fluid dynamic bearing and rubber isolation pads
High Performance: Balanced airflow and static pressure for optimized cooling
Durable Construction: Reinforced frame and blades made from composite materials
Specifications:
General:
Model Number:
R-FL12R-BKAPN3-G
Color:
Black
Quantity:
3 Fans
Fan Dimensions:
Size:
120 × 120 × 25 mm
Weight (Total):
543 g
Performance:
Speed:
500–2150 RPM ±10%
Airflow:
55 CFM
Static Pressure:
2.59 mmAq
Noise Level:
=33.9 dB(A)
Electrical:
Rated Voltage:
12 VDC (Fan) / 5 VDC (LED)
Rated Current:
0.15 A (Fan)
Fan Power Consumption:
1.8 W
LED Power Consumption:
2.75 W
Connectors:
Fan Connector:
4-pin PWM
LED Connector:
3-pin (+5V-D-G)
8-Pin Daisy-Chain:
Combines fan and lighting in one cable
Lighting:
Type:
Addressable RGB (36 LEDs per fan)
Lighting Control:
Compatible with 5V ARGB headers
Bearing Type:
Fluid Dynamic Bearing
Materials:
Frame:
PBT composite
Blades:
Polycarbonate
Noise Dampening:
Rubber Pads:
Full-coverage anti-vibration pads at each corner
Package Contents:
3 × 120mm ARGB Reverse Blade Fans
Mounting Screws
User Guide
Warranty:
2 Years
Warranty:
2 Year Return To Base Warranty
|
DESIGN
|
| Product colour |
Black |
| Fan connector |
4-pin |
| Illumination LED |
Yes |
| LED connector type |
3-pin |
ENERGY MANAGEMENT
|
| Power consumption (typical) |
1.8 W |
| Rated current |
0.15 A |
| Rated voltage |
12 V |
| LED voltage |
5 V |
PERFORMANCE
|
| Type |
Fan |
| Airflow |
93.45 m³/h |
| Fan diameter |
12 cm |
| Suitable location |
Computer case |
| Maximum airflow |
55 cfm |
| Maximum air pressure |
2.59 mmH2O |
| Noise level (high speed) |
33.9 dB |
| Rotational speed (max) |
2150 RPM |
| Rotational speed (min) |
500 RPM |
| Bearing type |
Fluid Dynamic Bearing (FDB) |
| Quantity per pack |
3 pc(s) |
| Pulse-width modulation (PWM) support |
Yes |
WEIGHT & DIMENSIONS
|
| Weight |
543 g |
| Fan dimensions (W x D x H) |
120 x 120 x 25 mm |
