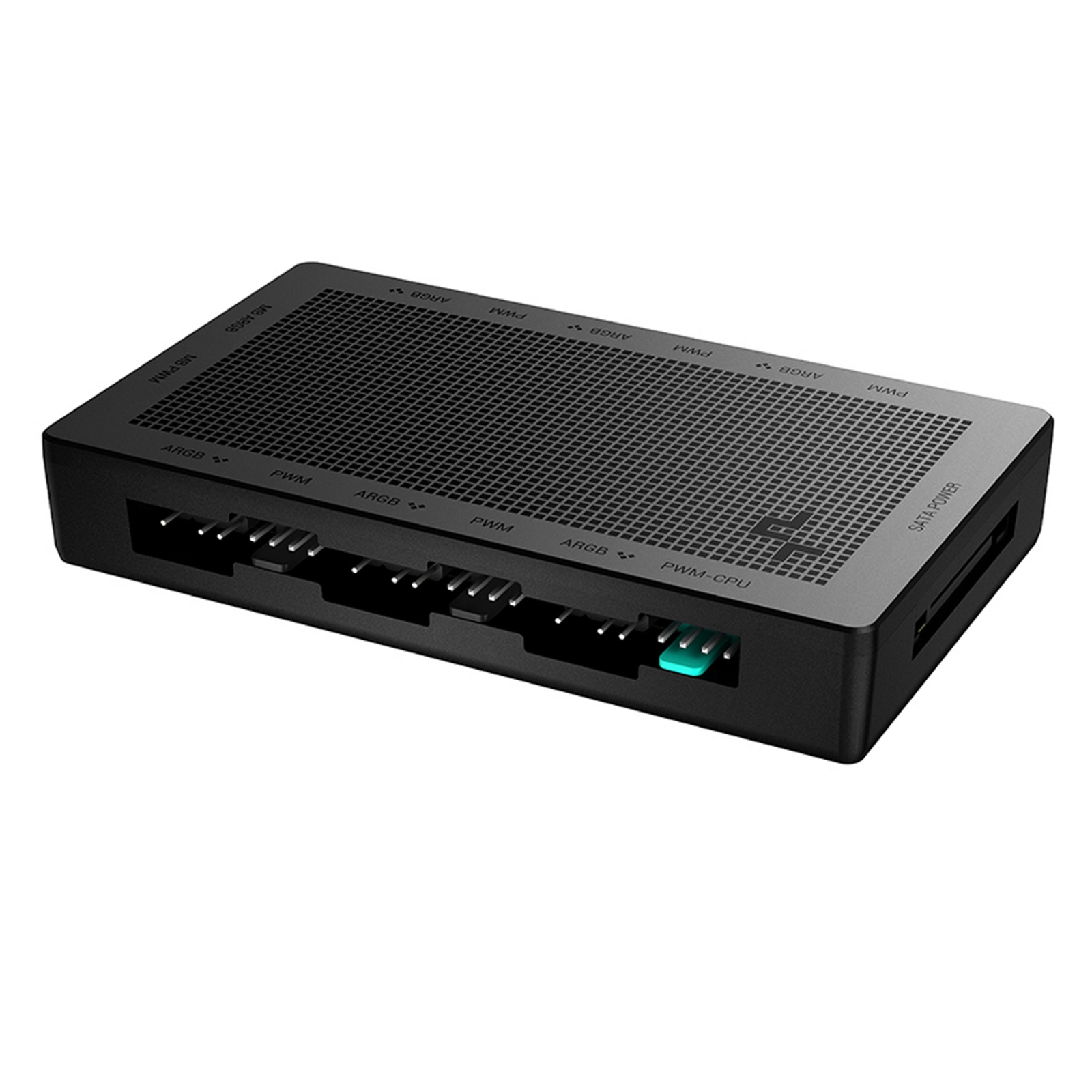

SC790
2-in-1 PWM & RGB Hub
The DeepCool SC790 2-in-1 PWM & RGB hub provides fan and lighting control for up to 6 total PWM ARGB fans simultaneously while occupying minimal headers on a motherboard.

Compatible with...
- Asus Aura Sync
- Gigabyte RGB Fusion
- MSI Mystic Light Sync
- ASRock Polychrome Sync

PWM & ARGB SPLITTER HUB
The SC790 connects to a 3-pin 5V ARGB header and 4-pin PWM header on a motherboard and extends their signal to connect up to 6 PWM ARGB fans for total synchronization. The included SATA interface ensures stable continuous power for all connected devices.
- The compact and sturdy case is also magnetic, allowing it to be conveniently tucked away behind the motherboard tray or positioned anywhere else.
- Supports ASUS Aura, GIGABYTE Fusion, MSI Mystic Light, and ASRock Polychrome.
- This product is NOT compatible with 12V 4-Pin RGB devices.

Product Dimension
102 x 60 x 17 mm

Net Weight
69g

Port Type
ARGB 3-Pin
PWM 4-Pin

Fan Ports
6 Ports x 4-Pin PWM

Length of Fan Connector Cable
24AWG 500 mm

Fan Rated Voltage
12V DC

Fan Rated Current
2.0A (1 Port) / Total 4.5A (6 Ports)

Addressable RGB Ports
6 Ports x 3-Pin Addressable RGB

Length of ARGB Connector Cable
24 AWG 538mm (Asus Asrock MSI) + 50mm (Gigabyte)

RGB Rated Voltage
5V DC

RGB Safety Current
2.0A (1 Port) / Total 4.5A (6 Ports)

Power Connector
SATA Power

Power Safety Current
4.5A Max

Mounting Method
Magnetic

Product Colour
Black
