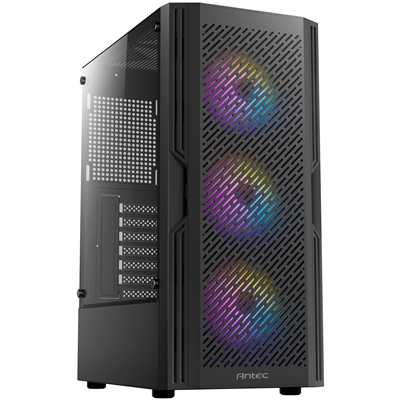

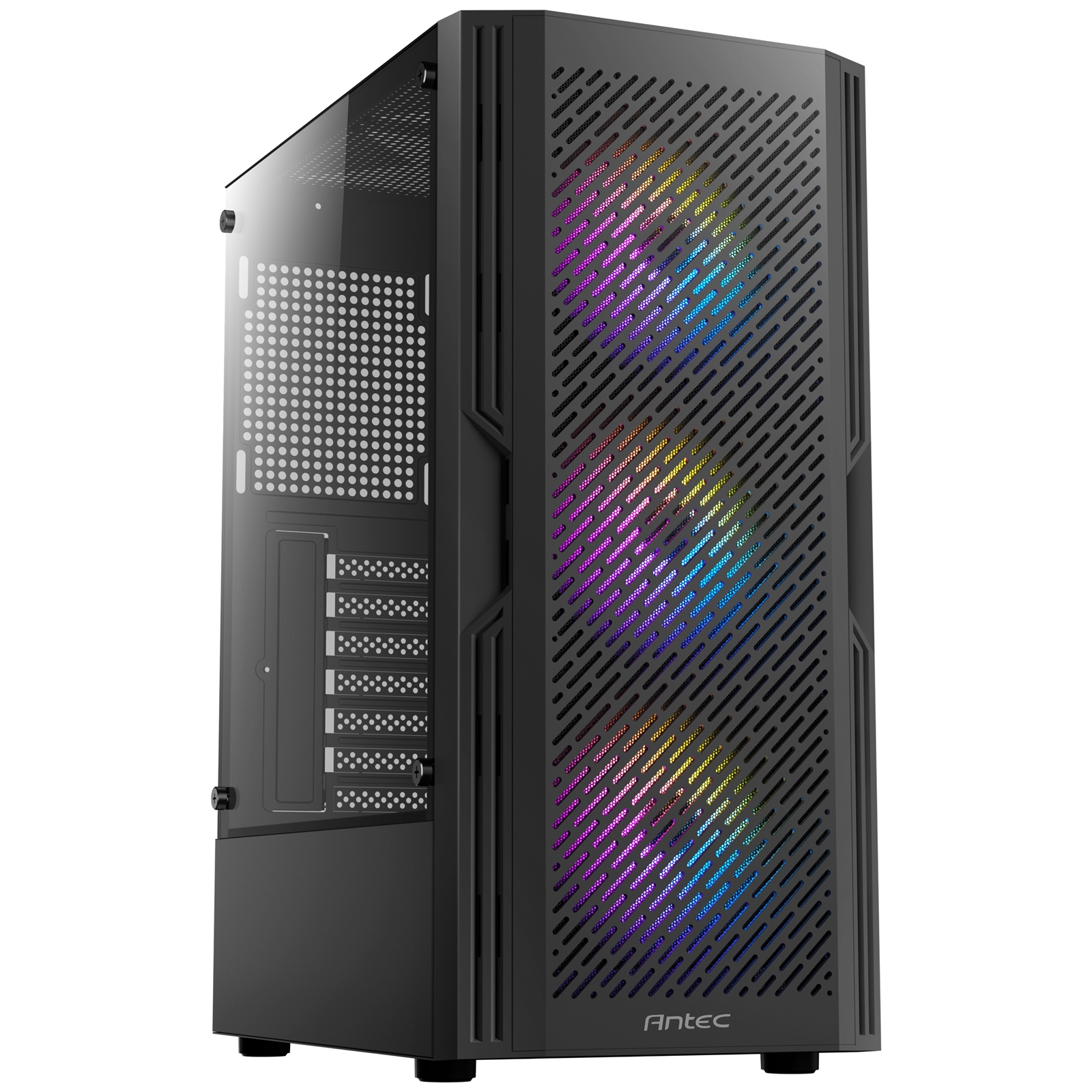

AX20
Mid-Tower Gaming Case

Unique Design & Powerful Heat Dissipation
AX20 features a slanted bar air intake design and an exceptional dense mesh for massive heat dissipation. The half-view tempered glass side panel design allows you to show off your gaming configurations without obstacles. The AX20 supports up to 8 x 120 mm fans simultaneously and provides users with diverse cooling options.

Slanted Bar Air Intake Design
Featuring dense mesh for massive airflow and efficient dust prevention.

High-Airflow Front Panel
Massive air intake at the front, top, and bottom. Creating multiple airflow paths.

Pre-Installed
3 x 120mm RGB Fixed Model Fans

Form Factor
Mid Tower

Materials
Steel
Plastic

Mainboard Support
ATX
Micro ATX
Mini-ITX

RGB
FRGB so no header

I/O Panel
Power
Reset
2 x USB 2.0
1 x USB 3.0
MIC / HD-AUDIO

Side Panel
Tempered glass

Drive Bays
3.5" / 2.5": 2 / 1
2.5": 2

Expansion
Slots: 7

Fan Support
Front: 3 x 120mm / 2 x 140mm
Top: 2 x 120mm
Power Supply Shroud: 2 x 120mm
Rear: 1 x 120mm

Included Fans
3 x 120 RGB fixed model fans in front

Radiator Support
Front: 120 / 140 / 240 / 280mm

Clearance
Max GPU Length: = 270mm
Max CPU Cooler Height: = 155mm
Max PSU Length: = 170mm (with HDD) / = 295mm (without HDD)

Dust Filter
Front

Weight
Net: 4 Kgs
Gross: 4.71 Kgs

Dimensions ( D x W x H )
358 x 207 x 451mm

Manufacturer's Website:

www.antec.com

Warranty:

1 Year Return To Base Warranty

COOLING
Front fans installed	3x 120 mm
Number of front fans supported (max)	3
Front fans diameters supported	120,140 mm
Rear fans diameters supported	120 mm
Top fans diameters supported	120 mm
Number of rear fans supported (max)	1
Number of top fans supported (max)	2
Front radiator fan sizes supported	120,140,240,280 mm
DESIGN
Type	PC
Form factor	Midi Tower
Material	Plastic, Steel, Tempered glass
Product colour	Black
Reset button	Yes
Supported motherboard form factors	ATX, ITX, micro ATX
Anti-dust filter	Yes
Number of 3.5" bays	2
Side window	Yes
Maximum CPU cooler height	15.5 cm
Maximum graphics card length	27 cm
Number of expansion slots	7
Maximum PSU length	17 cm
Number of 2.5" bays	3
On/off button	Yes
PACKAGING DATA
Package weight	4.71 kg
PORTS & INTERFACES
Audio input	Yes
Audio output	Yes
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
POWER SUPPLY
Power supply included	No
WEIGHT & DIMENSIONS
Weight	4 kg
Height	451 mm
Width	207 mm
Depth	358 mm
