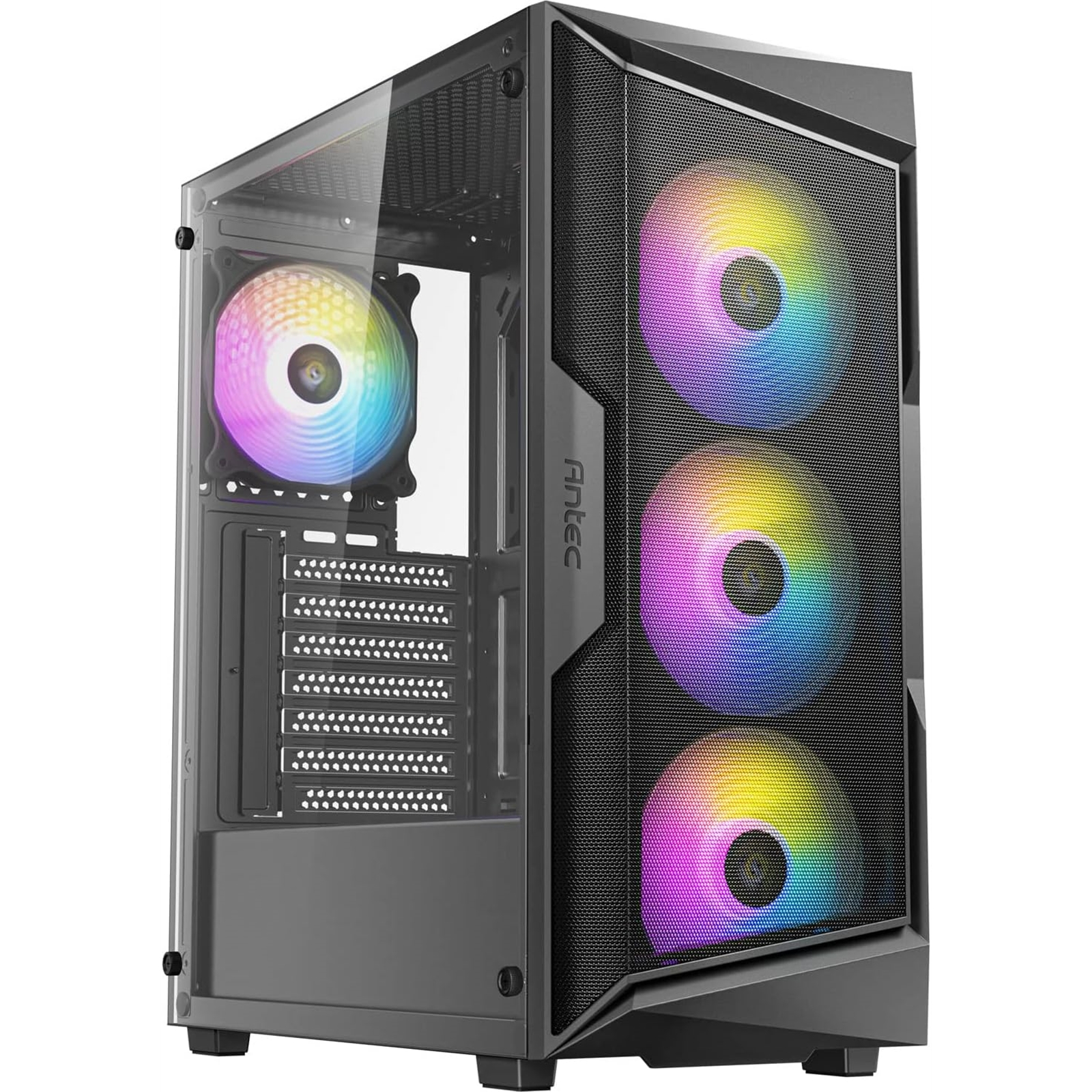

Antec AX61 Elite: Mid-Tower ATX Gaming Case with High-Airflow Mesh Front Panel, 4 x 120mm ARGB Fans, Tempered Glass Side Panels, Support for Up to 8 Fans,

Key Specifications
Form FactorMid Tower
Motherboard SupportATX
PSU IncludedNone
Case ColourBlack
LED ColourAddressable RGB
USB 3.01
Side PanelTempered Glass
/productImages/80/CAANT-AX61ELITE.JPG
/productImages/80/194819.JPG
/productImages/80/194820.JPG
/productImages/80/194821.JPG
/productImages/80/194822.JPG
/productImages/80/194823.JPG
/productImages/80/194824.JPG
/productImages/80/194825.JPG
/productImages/80/194826.JPG
/productImages/80/194827.JPG
Manufacturer : ANTEC
EAN : 0761345100694
Manufacturer Part Code : 0-761345-10069-4
Weight : 7.9 kg
Login For Pricing

Key Specifications
Form FactorMid Tower
Motherboard SupportATX
PSU IncludedNone
Case ColourBlack
LED ColourAddressable RGB
USB 3.01
Side PanelTempered Glass
Manufacturer :
ANTEC

EAN :
0761345100694

Manufacturer Part Code :
0-761345-10069-4

Weight :
7.9 kg
Recommended Products
1451Liquid Cooling
See details
1283Case Lighting & Mods
See details
1284Power Supplies
See details
1289Motherboards
See details

AX61 ELITE
Mid-Tower Gaming Case

Unique Design & Powerful Heat Dissipation
The front panel adopts an ample mesh design with geometrical styling for increasing airflow and dust prevention. The ARGB lighting creates various visual effects.

High-Airflow Front Panel
All-round airflow paths provide highly efficient cooling. Air intakes at the front and bottom ensure outstanding heat dissipation.

Pre-Installed 4 x 120mm ARGB fans
Work in sync with the motherboard.
Front
3 x 120 mm ARGB Fans
Rear
1 x 120 mm ARG Fans

In Sync with Motherboard for ARGB Lighting
Use the main case fan to daisy-chain the other two fans for ARGB sync and create your personal style.

I/O Panel
Power, LED Control Button, USB2.0 x 2, MIC/HD-AUDIO, USB3.0 x 1

Neat Build within Reach
There are 24mm depth on the left side and 13mm on the right side for easy cable management.

Powerful Cooling Compatibility
Max. CPU Cooler Height : 160mm. Supports most of the high-end air coolers.

Unlimited Performance
Max. GPU Length : 320mm

Specifications

Dimensions
405 x 200 x 449mm (DWH)

Form Factor
Mid Tower

Materials
Steel + Plastic

Mainboard Support
ATX, Micro-ATX, ITX

Front Access & Controls
Power, LED Control Button, 2 x USB 2.0, 1 x USB 3.0 , HD-AUDIO

Side Panel
4MM Tempered glass

Drive Bays

Expansion Slots
7

3.5" /2.5"
2/1

2.5"
2

Fan Support

Front
3 x 120mm

Top
2 x 120mm / 2 x 140mm

Power supply
2 x 120mm

Rear
1 x 120mm

Included Fan(s)
3 x 120mm ARGB fans in front + 1 x 120mm ARGB fan in rear

Radiator Support

Front
120 / 240 / 360mm

Clearance

Max GPU Length
= 320mm

Max CPU Cooler Height
= 160mm

Max PSU Length
(Include cable) = 165mm(with HDD)
(Include cable) = 345mm(without HDD)

Miscellaneous

Dust Filter
Top / Bottom

Net Weight
4.84 Kgs

Gross Weight
5.62 Kgs

Warranty
1 Year
Manufacturer's Website:
Warranty:
1 Year Return To Base Warranty

Return-to-Base warranty returns are processed within 14 business days of confirmed date of receipt - see our Returns Policy for more information.
COOLING
Front fans installed 3x 120 mm
Number of front fans supported (max) 3
Front fans diameters supported 120 mm
Rear fans diameters supported 120 mm
Top fans diameters supported 120,140 mm
Bottom fans diameters supported 120 mm
Number of rear fans supported (max) 1
Number of top fans supported (max) 2
Number of bottom fans supported (max) 2
Rear fans installed 1x 120 mm
Front radiator fan sizes supported 120,140,360 mm
Top radiator fan sizes supported 120,240 mm
DESIGN
Type PC
Form factor Midi Tower
Material Plastic, Steel
LED indicators HDD, Power
Product colour Black
Illumination Yes
Supported motherboard form factors ATX, ITX, micro ATX
Number of 5.25" bays 0
Number of 3.5" bays 2
Side window Yes
Maximum CPU cooler height 16 cm
Maximum graphics card length 32 cm
Number of expansion slots 7
Maximum PSU length 34.5 cm
Illumination location Case fans
Number of 2.5" bays 2
On/off button Yes
RGB control button Yes
PACKAGING DATA
Package weight 5.62 kg
PORTS & INTERFACES
Audio input Yes
Audio output Yes
USB 2.0 ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 0
USB 3.2 Gen 2x2 Type-C ports quantity 0
POWER SUPPLY
Power supply location Bottom
Power supply included No
STORAGE
Supported HDD sizes 2.5,3.5"
WEIGHT & DIMENSIONS
Weight 4.84 kg
Height 449 mm
Width 200 mm
Depth 405 mm
