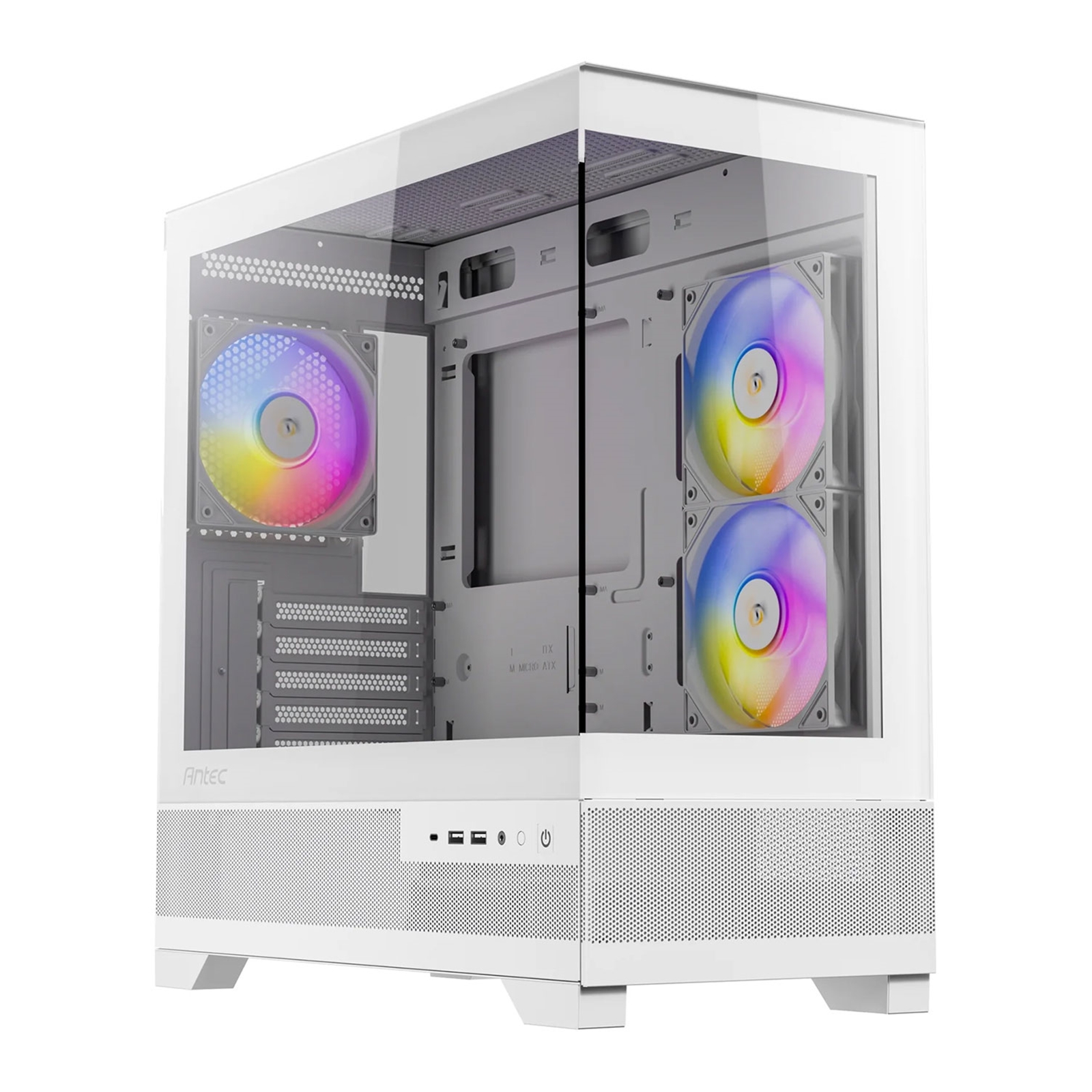

The Antec CX500M ARGB is a stylish and functional mid-tower gaming case designed for Micro-ATX and ITX motherboards. Its standout feature is the panoramic 270° view, achieved through seamless steel-tempered glass panels on the left and front sides, offering an unobstructed showcase of your build. The case is equipped with three pre-installed 120mm ARGB fans, which can be synchronized for customizable lighting effects. It supports vertical cooling with a bottom-up airflow design, ensuring efficient heat dissipation. The tool-free panel design simplifies assembly and reduces the risk of glass breakage.

Specifications
Form Factor:
Mid-Tower

Motherboard Support:
Micro-ATX, ITX

Dimensions:
436mm (D) x 210mm (W) x 446mm (H)

Material:
Steel + Tempered Glass

Side Panel:
4mm Tempered Glass

Drive Bays:
2/1 x 3.5"/2.5"
1 x 2.5"

Expansion Slots:
5

Cooling Support:
Top:
Up to 3 x 120mm or 2 x 140mm

Side:
2 x 120mm

Rear:
1 x 120mm

Power Supply Shroud:
3 x 120mm

Radiator Support:
Up to 360mm (top)

Included Fan(s)
2 x 120mm ARGB reverse fans on right side + 1 x 120mm ARGB fan in rear

Clearance:
Max GPU Length:
415mm

Max CPU Cooler Height:
165mm

Max PSU Length:
210mm (with HDD) / 270mm (without HDD)

I/O Panel:
1 x USB 3.2 Gen 2 Type-C
2 x USB 3.0
1 x Headphone/Mic Combo Jack
1 x LED Control Button
1 x Power Button

Dust Filters:
Top and bottom

Weight:
Net: 6.34 kg
Gross: 8.2 kg

Warranty:
1 year
