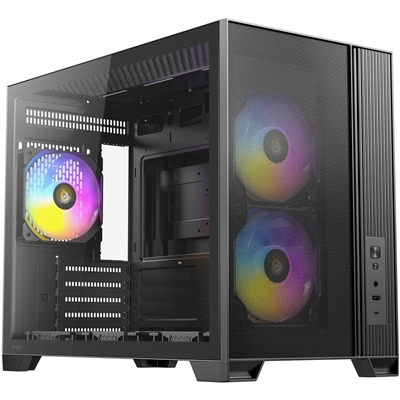

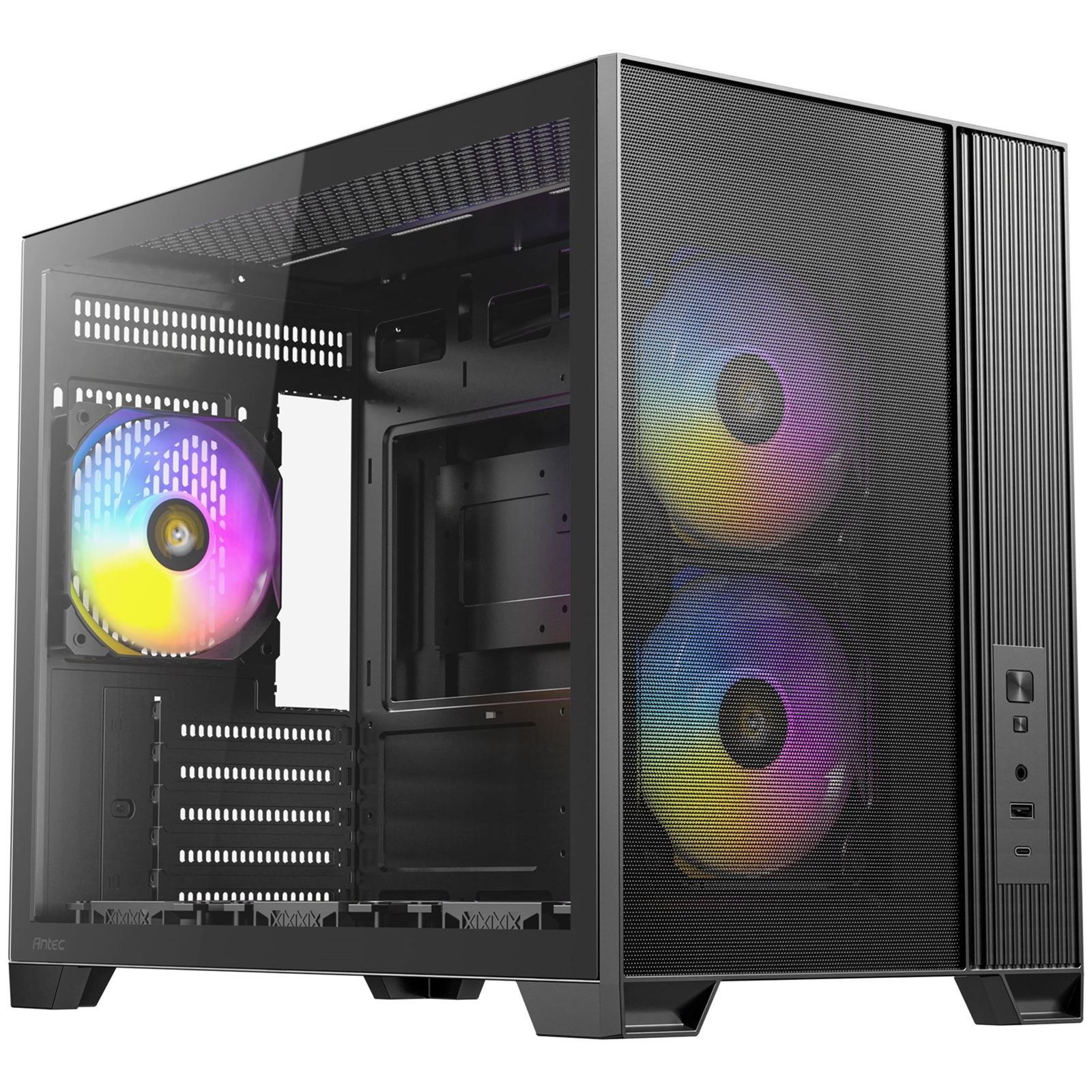

Antec Flux M Mini Tower PC Case

Features

Airflow
F-LUX Platform with vertical airflow design accelerates heat exhaust from bottom to top.

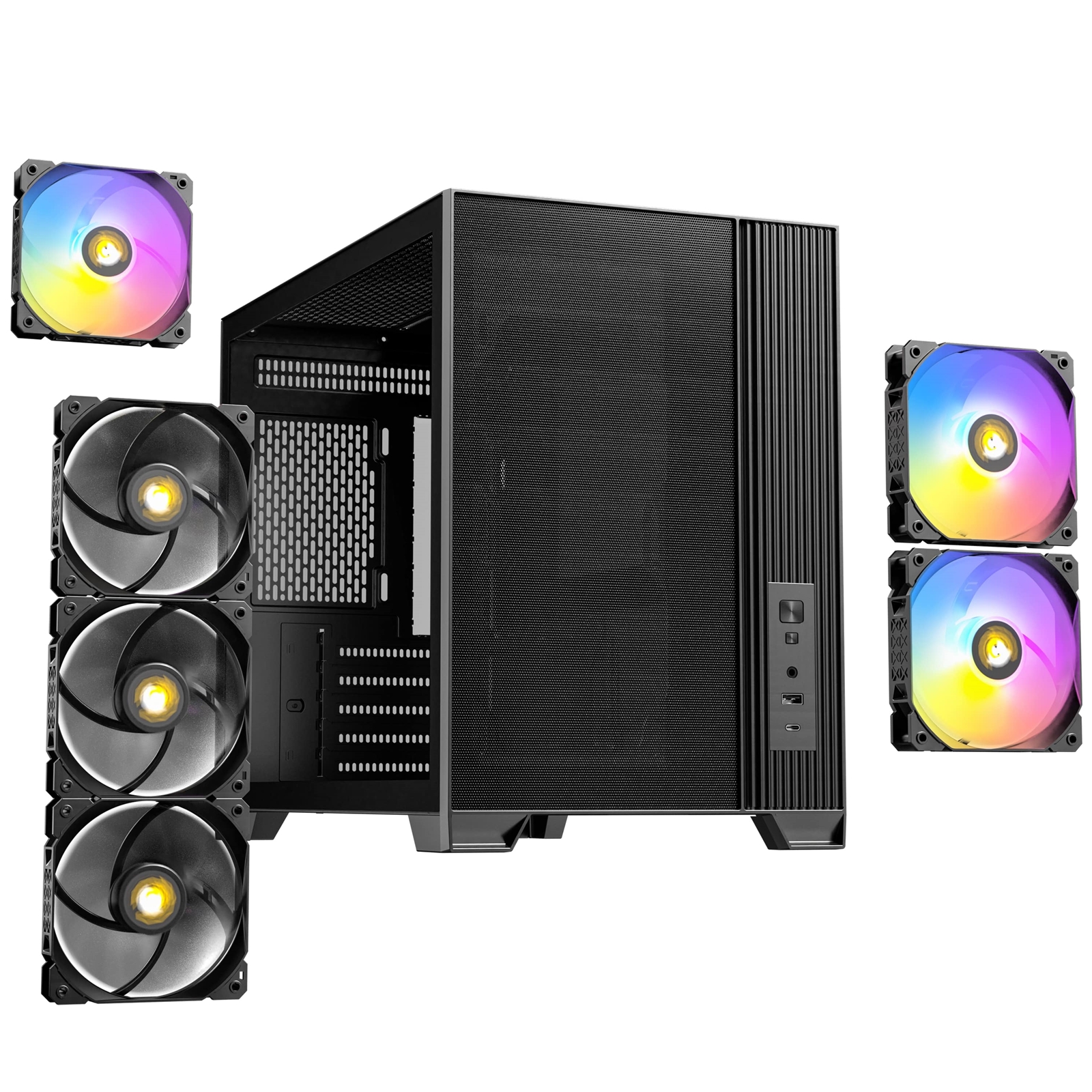

Pre-installed fans include 2 x 120mm ARGB PWM fans at the front, 3 x 120mm reverse PWM fans, and 1 x 120mm ARGB PWM fan at the rear.
Supports up to a 360mm radiator at the top.
-0mm clearance between GPU and bottom fans ensures optimal airflow circulation.

Appearance
Large front panel mesh for enhanced cooling.

Functionality
Cable management space behind the motherboard provides up to 59mm at the front and 49mm at the rear.
Equipped with a 13A extension cable for stable power delivery and support for high-wattage PSUs.

Specifications

Dimensions
459 x 247 x 365mm (DWH)

Form Factor
Mini Tower

Materials
Steel + Plastic

Mainboard Support
Micro-ATX , ITX

Front Access & Controls
Power, Reset , USB3.0 x 1, Type-C 3.2 Gen 2 (10 Gbps) x 1, Headphone/Mic Combo Jack

Side Panel
3mm Tempered Glass

Drive Bays
Expansion Slots 5
3.5" / 2.5" 2 / 2

Fan Support
Front 2 x 120mm
Top 3 x 120mm
Bottom 3 x 120mm
Rear 1 x 120mm
Included Fan(s) 2 x 120mm ARGB PWM fans at the front + 3 x 120mm PWM reverse fans at the bottom + 1 x 120mm ARGB PWM fan at the rear

Radiator Support
Top 120 / 240 / 360mm
Rear 120mm

Clearance
Max GPU Length =405mm
Max CPU Cooler Height =175mm
Max PSU Length (Cable not included)=160mm

Miscellaneous
Dust Filter Top / Bottom
Net Weight 6.35 Kg
Gross Weight 7.41 Kg
Warranty 2 Years
