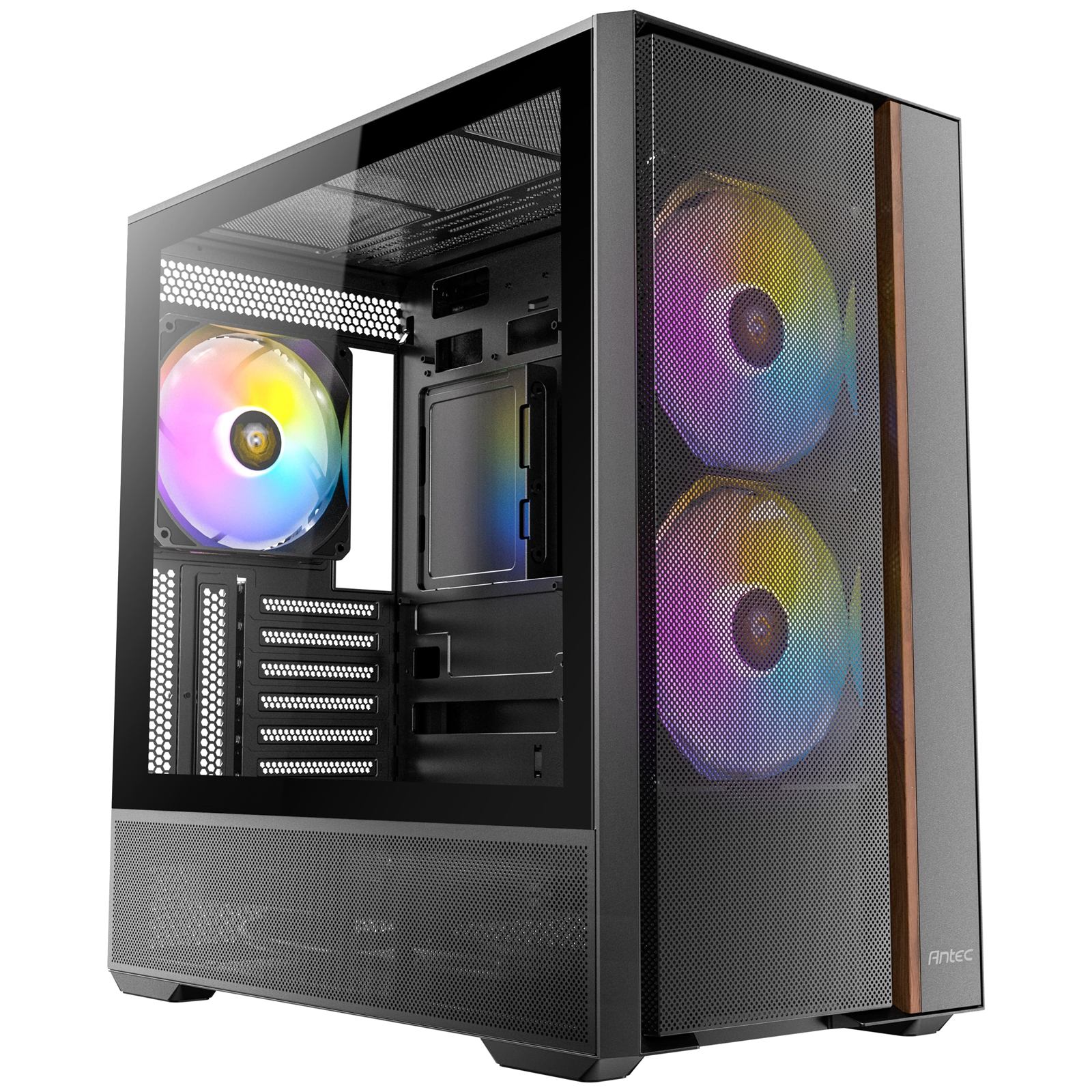

Antec FLUX Rear Mid Tower PC Case - Tempered Glass, Steel/Plastic/Wood, 5 PWM Fans, USB-C, ATX/Mirco-ATX/ITX Compatibility

CAANT-FLUXREAR
Key Specifications
Form FactorMid Tower
Motherboard SupportATX
PSU IncludedNone
Case ColourBlack
LED ColourNone
USB 3.02
Side PanelTempered Glass
/productImages/80/CAANT-FLUXREAR.JPG
/productImages/80/211208.JPG
/productImages/80/211209.JPG
/productImages/80/211210.JPG
/productImages/80/211211.JPG
/productImages/80/211212.JPG
/productImages/80/211213.JPG
/productImages/80/211214.JPG
/productImages/80/211215.JPG
/productImages/80/211216.JPG
/productImages/80/211217.JPG
/productImages/80/211218.JPG
/productImages/80/211219.JPG
/productImages/80/211220.JPG
/productImages/80/211221.JPG
/productImages/80/211222.JPG
/productImages/80/211223.JPG
Manufacturer : ANTEC
EAN : 0761345102414
Manufacturer Part Code : 0-761345-10241-4
Weight : 8.18 kg
Login For Pricing

Key Specifications
Form FactorMid Tower
Motherboard SupportATX
PSU IncludedNone
Case ColourBlack
LED ColourNone
USB 3.02
Side PanelTempered Glass
Manufacturer :
ANTEC

EAN :
0761345102414

Manufacturer Part Code :
0-761345-10241-4

Weight :
8.18 kg
Recommended Products
1281Cases
See details
1283Case Lighting & Mods
See details
1410Antec
See details
1333Power Cables
See details

Antec Flux Rear Mid Tower PC Case



Airflow
Large mesh front panel enhances cooling performance
The F-LUX Platform with front-mounted PSU delivers enhanced airflow and superior GPU cooling.
Includes 2 × 140mm ARGB PWM fans at the front, 2 × 120mm PWM fans on the PSU shroud, and 1 × 140mm ARGB PWM fan at the rear.
Supports up to 360mm radiator at the top
Widened chassis with rear-mounted HDDs preserves bottom airflow path

Appearance
Walnut wood-style accents blend aesthetics with performance.

Functionality
Tool-free installation for both tempered glass and steel side panels
Cable management space behind the motherboard supports up to 37mm depth
Reversed rear I/O design hides cable routing for a cleaner build
Equipped with a 13A extension cable for stable power delivery and support for high-wattage PSUs
Includes 7 individual PCIe slot covers

Additional Features
Bottom ventilation with full-size dust filter
Built-in GPU support bracket

Specifications

Dimensions
460 x 240 x 460mm

Form Factor
Mid tower

Materials
Steel + Plastic + Wood

Mainboard Support
ATX, Micro-ATX , ITX

Front Access & Controls
Power, LED Control Button, USB3.0 x 2, Type-C 3.2 Gen 2 (10Gbps) x 1, Headphone/Mic Combo Jack

Side Panel
4mm Tempered Glass

Drive Bays
Expansion Slots 7
3.5" 1
2.5" 2

Fan
Front 2 x 140mm
Top 3 x 120mm / 2 x 140mm
Power Supply Shroud 2 x 120mm
Rear 1 x 120mm / 1 x 140mm
Included Fan(s) 2 x 140mm ARGB PWM fans at the front + 2 x 120mm PWM reverse fans on the PSU shroud + 1 x 140mm ARGB PWM fan at the rear

Radiator Support
Top 120 / 140 / 240 / 280 / 360mm
Rear 120mm

Clearance
Max GPU Length =400mm
Max CPU Cooler Height =180mm
Max PSU Length (Without cable)= 170mm

Miscellaneous
Dust Filter Bottom
Net Weight 8.18 Kg
Gross Weight 9.72 Kg
Warranty 2 Years




Manufacturer's Website:
www.antec.com
Warranty:
2 Year Return To Base Warranty
COOLING
Front fans installed 2x 140 mm
Number of front fans supported (max) 2
Front fans diameters supported 140 mm
Rear fans diameters supported 120,140 mm
Top fans diameters supported 120,140 mm
Bottom fans diameters supported 120 mm
Number of rear fans supported (max) 1
Number of top fans supported (max) 3
Number of bottom fans supported (max) 2
Rear fans installed 1x 140 mm
Bottom fans installed 2x 120 mm
Liquid cooling capability Yes
Rear radiator fan sizes supported 120 mm
Top radiator fan sizes supported 120,140,240,280,360 mm
Pulse-width modulation (PWM) support Yes
DESIGN
Type PC
Form factor Midi Tower
Material Steel, Plastic, Wood
Product colour Black
Illumination Yes
Cable management Yes
Supported motherboard form factors ATX, ITX, micro ATX
Anti-dust filter Yes
Number of 5.25" bays 0
Number of 3.5" bays 1
Illumination colour Multi
Maximum CPU cooler height 18 cm
Maximum graphics card length 40 cm
Number of expansion slots 7
Maximum PSU length 17 cm
Illumination location Case fans
Number of 2.5" bays 2
On/off button Yes
Tempered glass panel(s) Yes
RGB control button Yes
PACKAGING DATA
Package weight 9.72 kg
PORTS & INTERFACES
Combo headphone/mic port Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
POWER SUPPLY
Power supply included No
STORAGE
Supported HDD sizes 2.5,3.5"
WEIGHT & DIMENSIONS
Weight 8.18 kg
Height 460 mm
Width 240 mm
Depth 460 mm
