Target Components

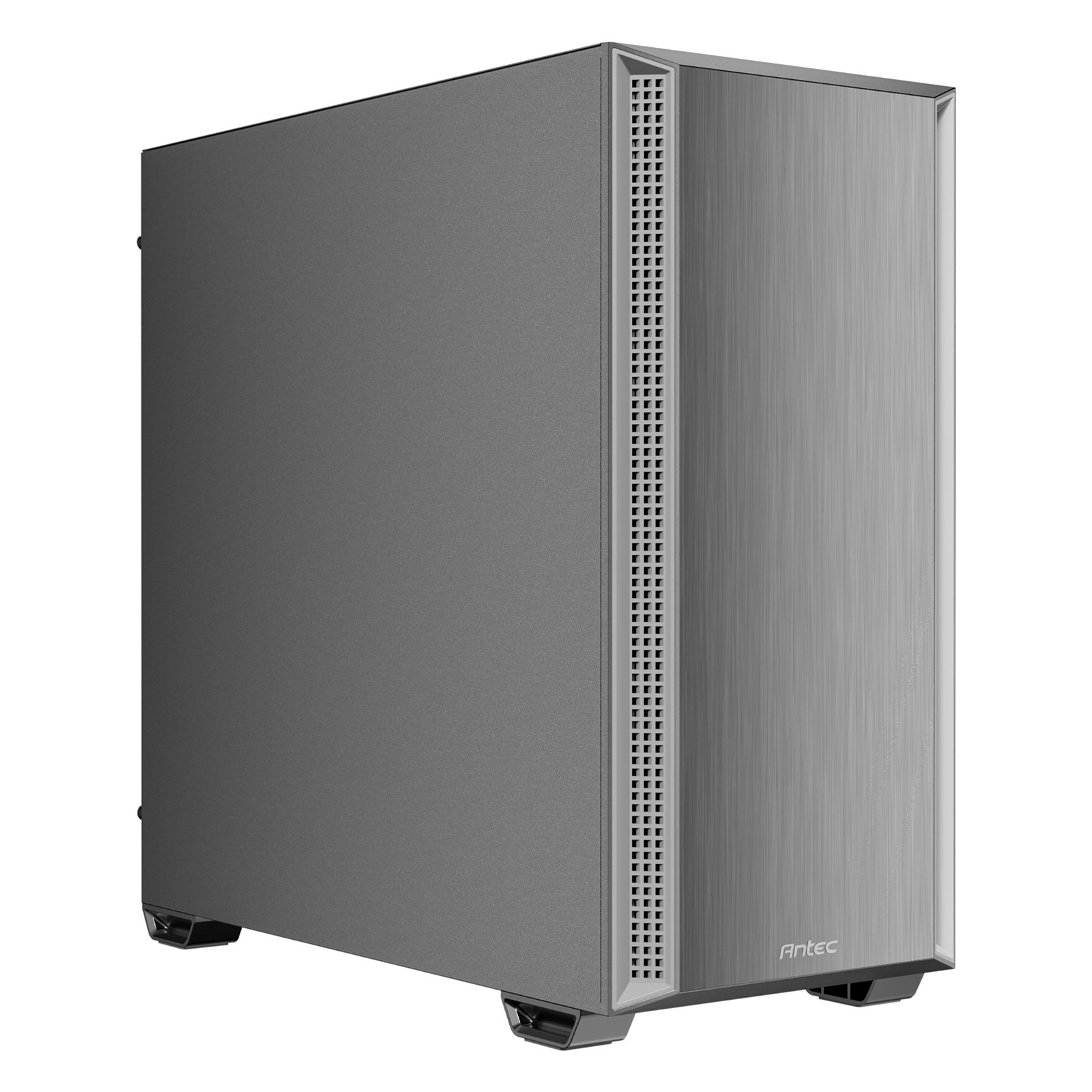

Antec P7 S
ATX Mid Tower Case

Airflow
Dual side mesh design enhances intake and improves overall cooling efficiency. Pre-installed with four PWM daisy-chain fans for optimized airflow.

Sound Dampening
Both side panels are lined with sound-dampening foam to effectively reduce system noise for a quieter build.

Flexible Cooling Support
Supports multiple fan and radiator configurations, including up to a 360mm radiator at the top for high-performance liquid cooling setups.

Smart Cable Management
Includes 4 rubber grommets for clean cable routing and 3 Velcro straps to keep cables organized and protected.

Model
P7 S
0-761345-10258-2

Form Factor
Mid Tower

Materials
Steel
Plastic

Motherboard Support
ATX
Micro ATX
Mini-ITX

I/O Port
2 x USB 3.0
1 x USB Type-C 3.2 Gen 2 (10Gbps)
Headphone / Mic Combo Jack
Power
Reset

Side Panel
Steel side panels with sound-dampening foam

Expansion Slots
7 (Reusable)

Drive Bays
3.5" / 2.5" (Convertible): 2 / 1
2.5": 1

Fan Support
Front: 3 x 120mm or 2 x 140mm
Top: 3 x 120mm or 2 x 140mm
PSU Shroud: 2 x 120mm
Rear: 1 x 120mm

Included Fans
Front: 3 x 120mm PWM fans
Rear: 1 x 120mm PWM fan

Radiator Support
Front: 120 / 140 / 240mm
Top: 120 / 240 / 360mm
Rear: 120mm (Length =160mm)

Clearance
Max GPU Length: =405mm
Max CPU Cooler Height: =175mm
Max PSU Length (Cable Included): =270mm

Dust Filters
Top
Bottom

Dimensions ( D x W x H )
478 x 222 x 465 mm

Weight
Net: 5.75Kg
Gross: 7.20Kg

Warranty
2 Years

Additional Features
Dual-mode removable top filter:
– Airflow Mode with mesh filter for maximum cooling
– Silent Mode with solid cover for noise reduction
Easy to remove and clean

Includes high-speed USB Type-C 10Gbps port for fast data transfer
