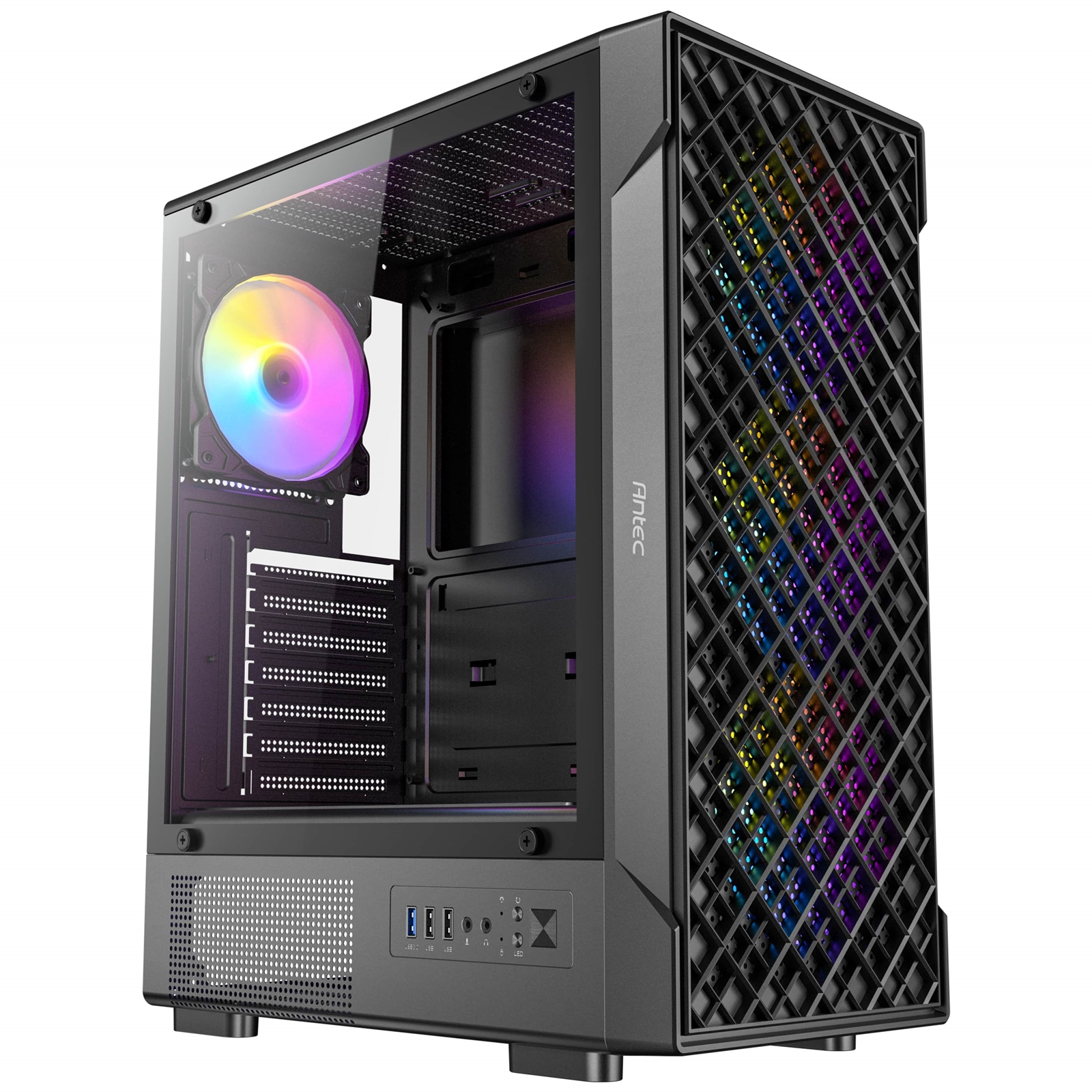

ANTEC Antec VX320 ARGB Mid-Tower Gaming PC Case
Unique Design & Powerful Heat Dissipation
The VX320 ARBG features a Ventilated front grille and a tempered glass side panel, offering excellent airflow and a stylish showcase for you build.
Stylish Mech Front Panel
Designed for superior ventilation, the mesh-style front panel enhances airflow to maintain system cooling efficiency.
High-Airflow Paths
All-round airflow paths provide highly efficient cooling. Air intakes at the front ensure outstanding heat dissipation.
Pre-Installed 4 X 120MM ARGB Fans
3 x 120mm ARGB fans at the front
1 x 120mm ARGB at the rear
Up to 8 x 120MM fans Simultaneously
Powerful Cooling Compatibility
Max CPU Cooler Height 165mm. Supports most the high-end air coolers.
Unlimited Performance
Max GPI Length 320mm
Specifications
Main Specifications
Motherboard Support - ATX, Micro-ATX,ITX
Form Factor - Mid Tower
Case Material - Steel + Plastic
Side Window Material - Tempered Glass Side Panel
O/I Ports - Power, Reset, LED Control Button, USB 3.0 x1, USB 2.0 x 2, MIC/HD-Audio
Compatibility & Clearances
CPU Cooler Max Height - 165mm
GPU Max Length - 320mm
Max PSE Length - 160mm (include cable + with HDD)
Max PSE Length - 325mm (include cable + with HDD)
Fan Support
Front - 3 x 120mm
Top - 2 x 140 / 2 x 120mm
Power Supply Shroud - 2 x 120mm
Rear - 1 x 120mm
Expansion Slots
Standard - 7
Drive Bays
3.5" - 1
2.5" - 3
Dimensions
Case Dimensions - 370 x 205x 450mm (DWH)
Box Dimensions - 480 x 240 x 414mm (DWH)
Net Weight - 3.62kg
Gross Weight - 4.62kg
Accessories
Included Fans :
3 x 120mm ARGB fans at the front
1 x 120mm ARGB at the rear
General
Dust Filter - Top
Warranty - 1 year
Warranty:
1 Year Return To Base Warranty
|
COOLING
|
| Front fans installed |
3x 120 mm |
| Top fans diameters supported |
120,140 mm |
| Bottom fans diameters supported |
120 mm |
| Number of top fans supported (max) |
2 |
| Number of bottom fans supported (max) |
2 |
| Rear fans installed |
1x 120 mm |
DESIGN
|
| Type |
PC |
| Form factor |
Midi Tower |
| Material |
Plastic, Steel |
| LED indicators |
Yes |
| Product colour |
Black |
| Illumination |
Yes |
| Reset button |
Yes |
| Supported motherboard form factors |
ATX, ITX, micro ATX |
| Number of 3.5" bays |
1 |
| Side window |
Yes |
| Maximum CPU cooler height |
16.5 cm |
| Maximum graphics card length |
32 cm |
| Number of expansion slots |
7 |
| Maximum PSU length |
32.5 cm |
| Illumination location |
Case fans |
| Number of 2.5" bays |
3 |
| On/off button |
Yes |
| Tempered glass panel(s) |
Yes |
| RGB control button |
Yes |
PACKAGING DATA
|
| Package weight |
4.35 kg |
PORTS & INTERFACES
|
| Audio input |
Yes |
| Audio output |
Yes |
| USB 2.0 ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
POWER SUPPLY
|
| Power supply location |
Bottom |
WEIGHT & DIMENSIONS
|
| Weight |
3.65 kg |
| Height |
450 mm |
| Width |
205 mm |
| Depth |
370 mm |
