Target Components

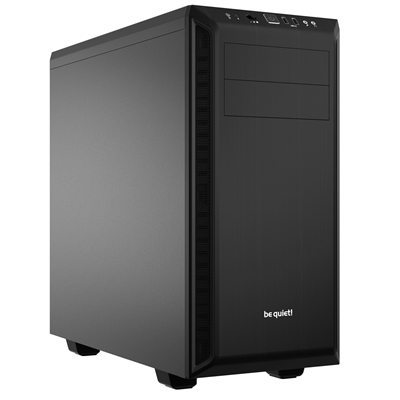

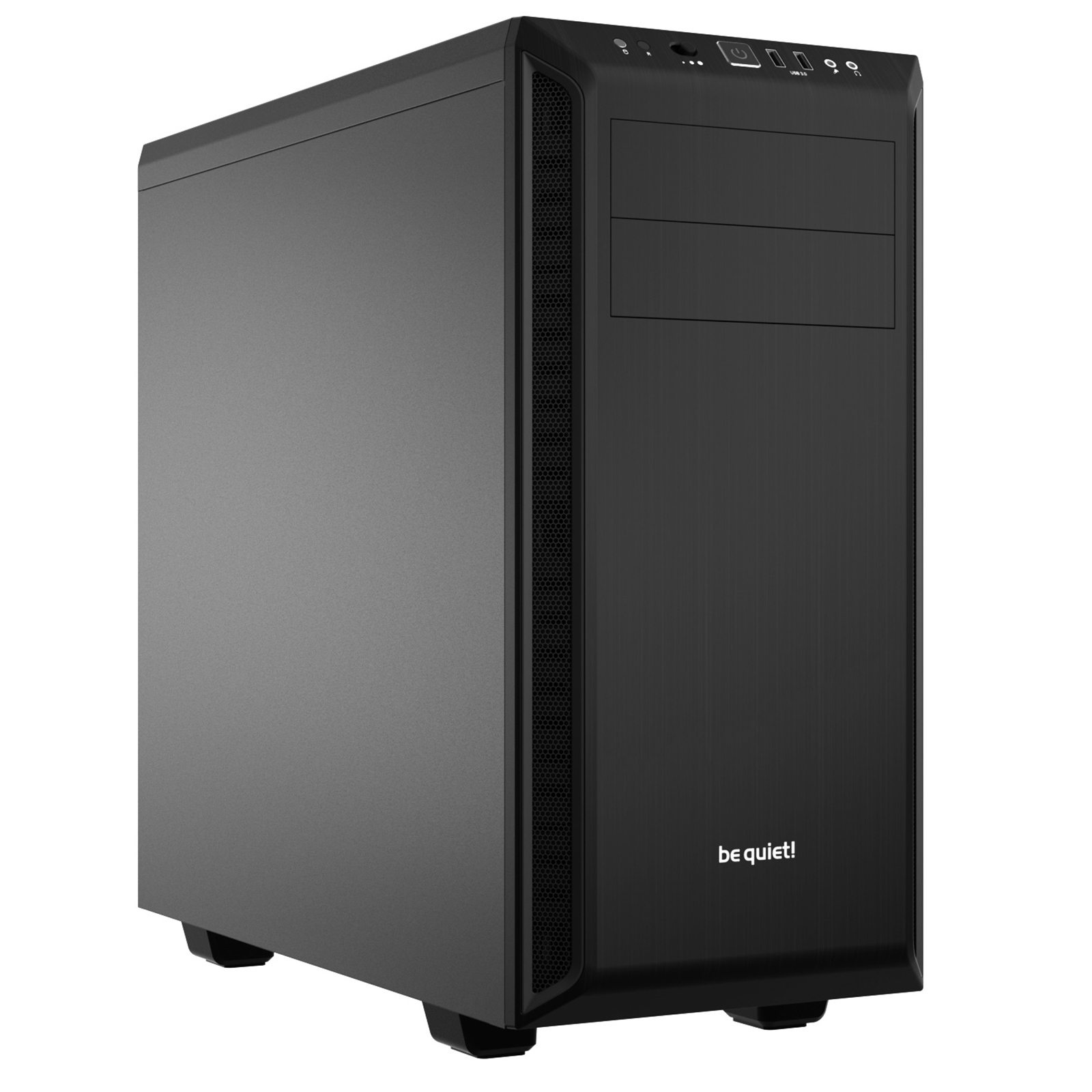

PURE BASE 600 - Black
EXCEPTIONALLY SILENT AND FUNCTIONAL
Pure Base 600 offers a great deal of functionality and features for an attractive price.

- Highly versatile, with repositionable HDD slots and a removable ODD cage
- Water cooling ready for radiators up to 360mm on front, top and rear
- Adjustable top cover vent with enhanced cooling options and mounting location for a radiator
- 2 pre-installed be quiet! Pure Wings 2 fans assure whisper-quiet operation
- Completely sound insulated with dampening material in all relevant places
- 3-year manufacturer's warranty
- German product conception, design and quality control

HIGHLY VERSATILE CONSTRUCTION
Maximum of possibilities for your desired system
Pure Base 600 offers many possibilities for system component selection. The 3 HDD slots can be repositioned to allow installation of the largest of graphics cards and the ODD cage is removable for maximum flexibility of water cooling and drives.

OPTIMIZED FOR RADIATORS
Full choice for water cooling
Pure Base 600 was optimized to be the perfect case for liquid cooling. 3 areas are specially designed to allow them to be added: front, top and rear. All sizes of radiator up to 360mm are possible.

ADJUSTABLE TOP COVER VENT
Ingenious concept for water cooling and silence
The Pure Base 600 top cover is adjustable allowing choice between boosting your system's cooling or silence. You can close it for more silence, open it partially for more exhaust or leave it open to mount a water cooling radiator.

PRE-INSTALLED PURE WINGS 2 FANS
Whisper-quiet operation – typical for be quiet!
2 pre-installed Pure Wings 2 fans with 9 airflow-optimized fan blades reduce turbulence and increase air pressure: 120mm at the rear, 140mm at the front. Permits up to four additional cooling fans.

KEEP THE SYSTEM SUPER SILENT
Equipped with smart and effective silence features
Integrated 3-step fan controller supports 3 fans. Sound insulating material on top, side and front that dampens vibration. Filters at front and bottom prevent the dust to come into the case.

General Data
Model: Pure Base 600 Black
Color option: Black
Motherboard compatibility: ATX / M-ATX / Mini-ITX
Case size excl. stands (L x W x H), (mm): 492 x 220 x 445
Case size incl. stands (L x W x H), (mm): 492 x 220 x 470
PSU form factor: ATX PS/2
Weight (kg): 7.44
Expansion slots: 7

Pre-Installed Fans
Fan @ top: -
Fan @ front: 1x Pure Wings 2 140mm
Fan @ rear: 1x Pure Wings 2 120mm
Dimensions (L x W x H), (mm): Front: 140 x 140 x 25 / Rear: 120 x 120 x 25
Fan speed @ 100% PWM / 12V (rpm): Front: 900 / Rear: 1200
Airflow @ 100% PWM / 12V (CFM / m3/h): Front: 55.8/94.8 / Rear: 41.7/70.84
Air Pressure @ 100% PWM / 12V (mm H2O): Front: 0.6 / Rear: 0.9
Noise level @ 100% PWM / 12V (dB(A)): Front: 17.1 / Rear: 16.8
Voltage range (V DC): 5 - 12
Input power (W) Front: 1.08 / Rear: 1.04
Input current (A): 0.09
Connector: 3-pin
Lifespan (h / 25°C): 80,000
Fan controller: Manual 3-step fan controller (3x 3-pin)

Maximum Fan Installation
Top (mm): 3x 120 / 2x 140
Front (mm): 2x 120 / 2x 140
Rear (mm): 1x 120
Bottom (mm): -
Side panel (mm): -
PSU shroud: -

Optional Radiator Installation
Top (mm): 120 / 240 / 360
Front (mm): 120 / 140 / 240 / 280 / 360
Rear (mm): 120
Bottom (mm): -

PSU Compatibility
Maximum dimensions excl. bottom fan (mm): 210
Maximum dimensions incl. bottom fan (mm): 210

Graphics Card
HDD cage (in height of graphics card) installed (mm): 280
HDD cage (in height of graphics card) removed (mm): 425

Drive Bay Capacity
5.25 bays: 2
3.5 slots (max.): 5
3.5 slots (scope of delivery): 3
2.5 slots (max.): 12
2.5 slots (scope of delivery): 8

Cooling
Max.construction height of CPU cooler unit (mm): 165
Airflow channel: Front / Top / Rear

Lighting
RGB LED illumination: -
LEDs synchronizable with RGB controller/motherboard: -
Expandable RGB controller: -

I/O Panel
USB 3.2 Gen. 2 Type C: -
USB 3.2 Gen. 1: 2
USB 2.0: -
HD Audio I/O: Mic + Audio
Qi charger / Quick Charging Option: -

Insulation & Damping
Top panel insulation mats: Yes
Front panel insulation mats: Yes
Side panel insulation mats: Yes
Anti-vibration decoupled HDD: Yes
Anti-vibration decoupled fan: -
Anti-vibration decoupled PSU: Yes
Anti-vibration decoupled motherboard-tray: -

Removeable Dust Filters
Front: 1
Bottom: 1
Side panel: -

Material
Top cover: ABS
Front panel: ABS
Side panel: Steel
Side panel window: -
Stands: ABS

Scope of Delivery
Screw set (Drives/Motherboard): Yes
Rubber rail (pcs.): -
Standoff (pcs.): -
LCS bracket (pcs).: -
HDD slot cover (pcs.): -
Upper fan bracket (pcs.): -
HDD panel rubber grommet (pcs.): -
SSD bracket for PSU shroud: -
LED strips (pcs.): -
Cable ties (pcs.): 4

Logistics Data
Article number: BG021
Certifications: CE / RoHs
Dimensions, package (L x W x H), (mm): 517 x 288 x 568
Gross weight, package (kg): 8.74
Pieces per packaging unit: 1
