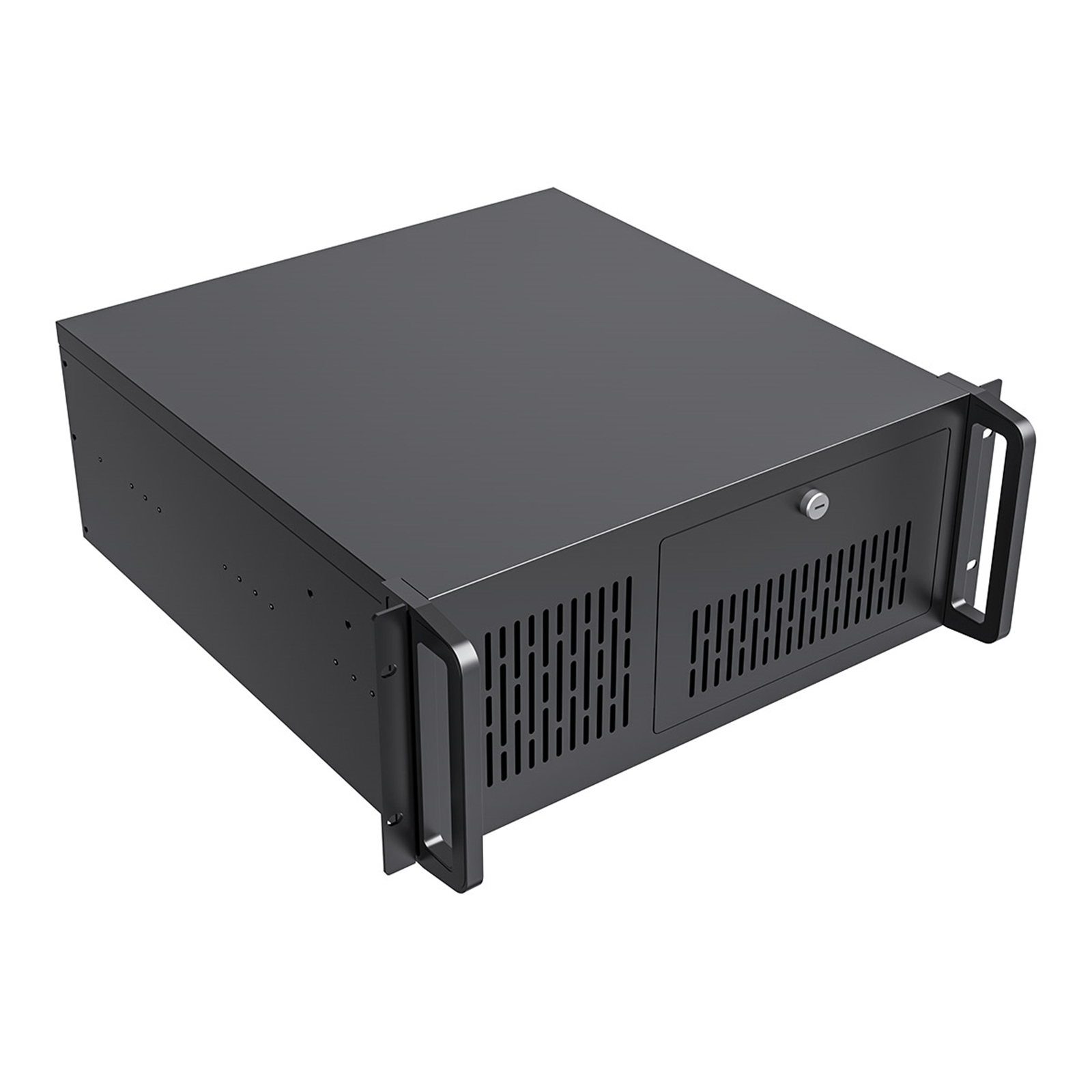

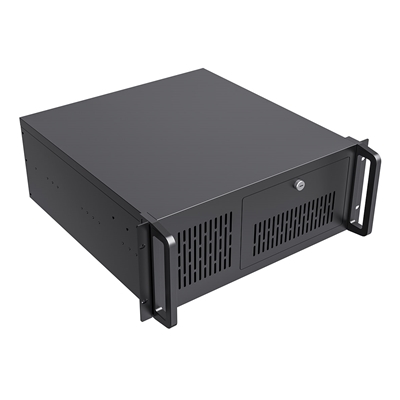

Cit 4U rackmount chassis, is a cost-effective computer chassis featuring plenty of power and storage device options. The 4U computer chassis provides the best support for various rackmount systems. A pre-installed 1 x 120mm front fan and 2 x 60mm Optional rear fans deliver an exceptional thermal performance you can rely on.
The front door with key lock delivers confident protection against unauthorised access and theft, for great peace of mind. Support up to 8 internal 3.5" HDDs, 2 x 2.52 HDD and eight expansion slots, so users can expand your server system easily. Configure or build your own custom 4U rack server starting with the chassis.
Key Features
4U Rackmount Case - 4U Rack Mount 500m Deep
Server Motherboard Support - Motherboard Support - Mini ITX, Micro ATX & ATX (up to 305mm xx245mm / 12" x 9.6")
Switches - Power ON/OFF & Reset
Indicators - LEDs for HDD LED and Power LED
Security - Front Door Is Lockable
Specifications
Rackmount Dimensions (Excluding Fascia / Panels): (W) 428 x (H) 172 x (D) 455mm
Case Specifications
Form Factor
Rackmount
Motherboard Support
ATX, Micro ATX, Mini ITX
PSU Support
Standard ATX
PSU Location
Bottom
Gaming Case
No
Water Cooling
Not Water Cooling Ready
Body Material
0.7mmSECCmetal
Front Bezel Material
1.5mm SGCC metal
Side Panel
Blank
External Bays
2 x 5.25" External
1 x 3.5" External
Internal Bays
8 x 3.5" Internal
2 x 2.5" Internal
Drive Bay Notes
1 x 2.5" & 3.5" is Shared
Expansion Slots
7 x Full Size
Cooling
Cooling Front: Space For 1 x 120mm Fan (1 x 120mm Black Fan inc.)
Cooling Top: None
Cooling Rear: Space for 2 x 60mm Fans
Cooling Side: None
Cooling Bottom: None
IO Ports
2 x USB 2.0
GPU Max Length
270mm
CPU Cooler Maximum Height 115mm
Front Bezel Colour
Black
Body Colour
Black
PSU Included
No
General Specifications
Manufacturer Part Number: 4U RACKMOUNT
EAN Number: 5055492407283
Has Mains Plug: No
Colour: Black
What's In The Box: 4U 500 Rackmout
Accessories
Unit (Product) Dimensions (mm): 482mm x 177mm x 501mm (W x H x D)
Packaging Dimensions (mm): 565mm x 253mm x 527mm (W x H x D)
Net Weight (KGs): 8.1 KGs
Gross Weight (KGs): 9.2 KGs
Warranty:
1 Year Return To Base Warranty
Return-to-Base warranty returns are processed within 14 business days of confirmed date of receipt - see our
Returns Policy for more information.
There are currently no data sheets available for this product.
