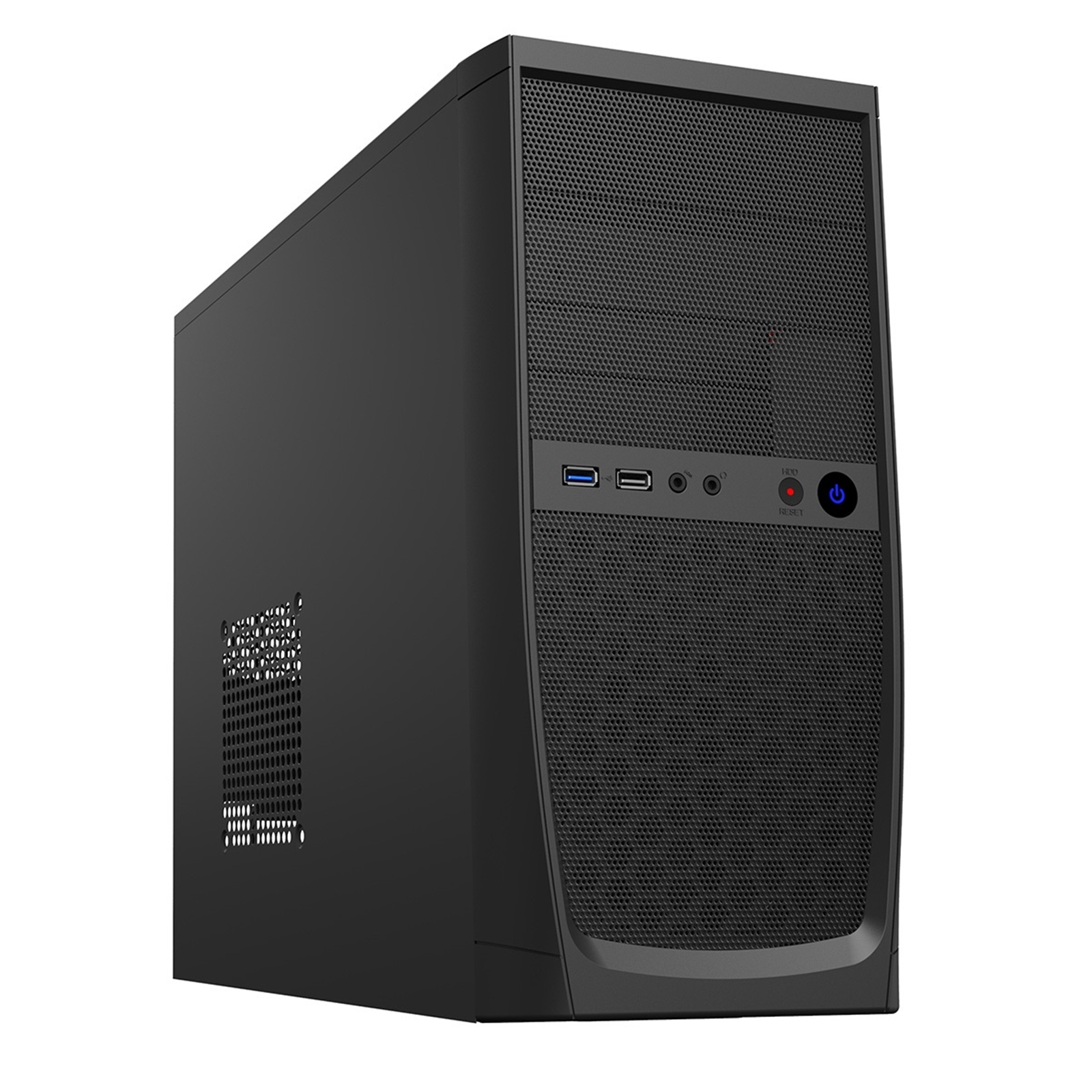

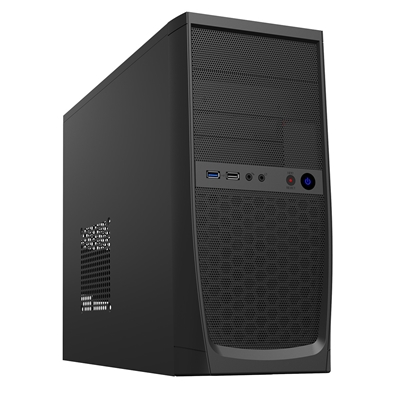

The CiT elite is a budget focused Micro-ATX chassis aimed at business and home office solutions. The Elite is one of the best air cooling solutions with a full mesh front panel for a professional look and is equipped with a USB3 port on the front of the I/O panel. The Elite also includes a rear 80mm fan.

The Elite is an ideal choice for anyone looking to build an office or home based PC on a budget.

- Full mesh front panel with 1 x USB 3.0
- Black chassis with 80mm rear cooling fan included
- Micro ATX chassis with a simple design
- Intel Approved TAC2.0 thermal chassis
- Black coated interior

PSU Specifications
Max PSU Rail Output
+3.3V: 15A
+5V: 15A
+12V: 30A
-12V: 0.5A
+5VSB: 2.5A

PSU Connectors
20 + 4pin ATX Mainboard: 1
4pin +12V CPU: 1
SATA: 3
4pin Molex: 2
FDD: 1

Case Specifications
Form Factor
Micro Tower

Motherboard Support
Micro ATX
Mini-ITX

PSU Support
Standard ATX

PSU Location
Top

Body Material
0.5mm SPCC

Front Bezel Material
Mesh

Side Panel
Vented

Internal Cable Management Depth
21mm

Drive Bays
2 x 5.25" External
2 x 3.5" External
3 x 3.5" Internal
2 x 2.5" Internal

Drive Bay Notes
External Bays include 2 x 5.25" Bays & 2 x 3.5" Bays

Expansion Slots
4 x Full Size

Cooling
Front: None
Top: None
Rear: 1 x 80mm Fan (1 x 80mm Fan Inc.)
Side: None
Bottom: None

IO Ports
1 x USB 3.0
1 x USB 2.0
1 x HD Audio

GPU Max Length
330mm

CPU Cooler Maximum Height
160mm

Front Bezel Colour
Black

Body Colour
Black

PSU Included
Yes

Dimensions ( W x H x D )
173 x 370 x 417 mm

Weight
4.1kg

Warranty:

1 Year Return To Base Warranty

COOLING
Number of front fans supported (max)	1
Front fans diameters supported	80 mm
Rear fans diameters supported	80 mm
Number of rear fans supported (max)	1
Rear fans installed	1x 80 mm
DESIGN
Type	PC
Form factor	Desktop
Material	SPCC
Cable lock slot	Yes
Product colour	Black
Reset button	Yes
Supported motherboard form factors	micro ATX, Mini-ITX
Number of 5.25" bays	2
Number of 3.5" bays	3
Number of internal 3.5" bays	1
Maximum CPU cooler height	16 cm
Maximum graphics card length	33 cm
Number of expansion slots	4
Number of 2.5" bays	2
Cable lock slot type	Kensington
Number of external 5.25" bays	2
On/off button	Yes
OTHER FEATURES
Memory type	3
PACKAGING DATA
Package weight	4.8 kg
Package depth	405 mm
Package height	445 mm
Package width	209 mm
PORTS & INTERFACES
Audio input	Yes
Audio output	Yes
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 3.2 Gen 2x2 Type-C ports quantity	0
POWER SUPPLY
Number of power supply units	1
Power supply	500 W
Number of SATA connectors	3
ATX power connector (20+4 pin)	Yes
Power supply location	Top
Power supply included	Yes
Supported power supply form factors	ATX
STORAGE
Supported HDD sizes	2.5,3.5,5.25"
WEIGHT & DIMENSIONS
Weight	4.2 kg
Height	414 mm
Width	173 mm
Depth	371 mm
