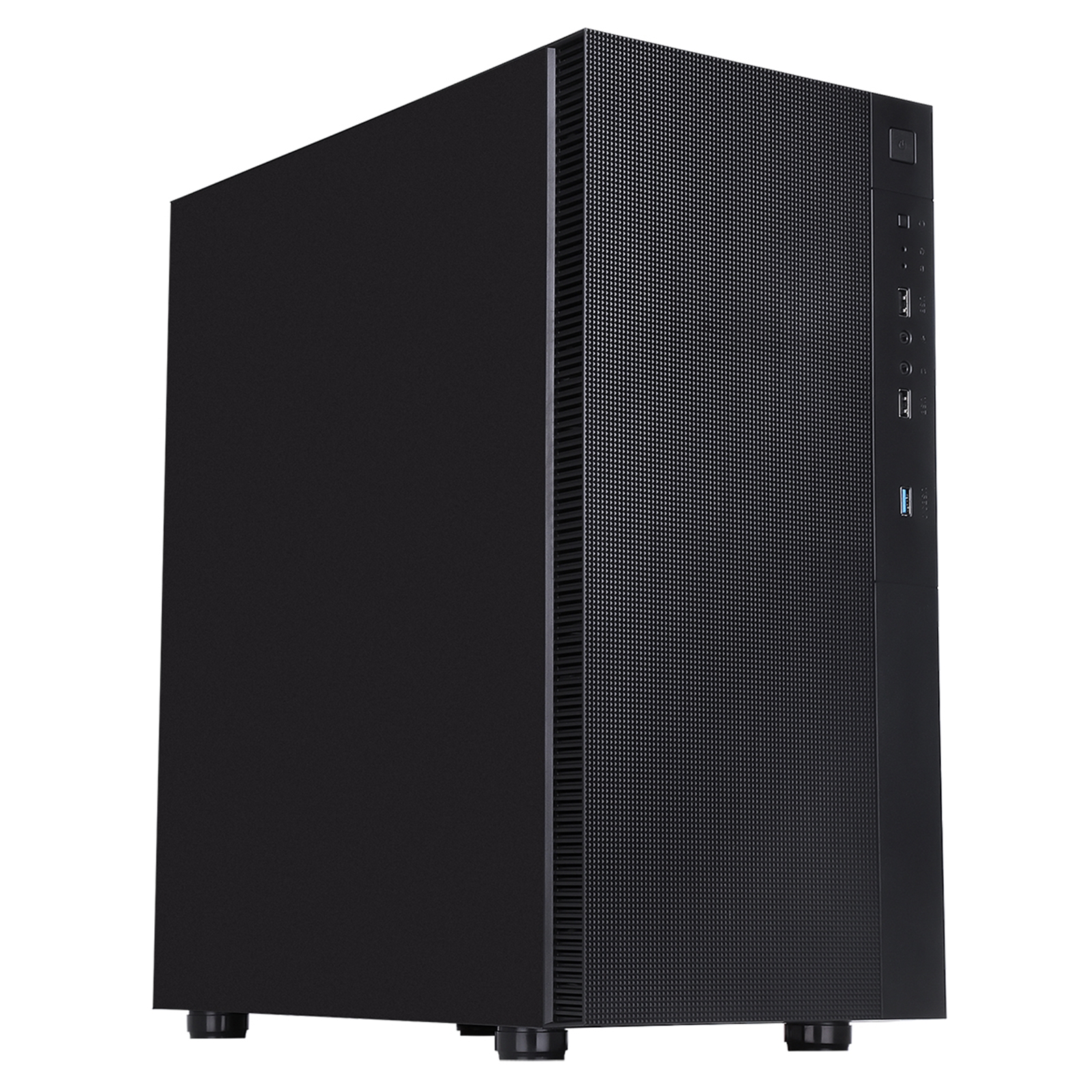

The CiT Silent ES is a minimalist Mid-Tower ATX case, the exterior is an impressive one with a modern and low-key design and an abundance of air inlets down both sides for sufficient airflow and is dedicated from super silent to maximum airflow with four sound dampening panels, good cooling performance and exceptional usability.
2 s 120mm PWM fans are included for cooling right out of the box, with the potential to install another two fans provides the necessary airflow for gaming.
The whole interior of the case has a black coating, and a full PSU Shroud keeps the overall look of the chassis clean and tidy. The PSU Shroud includes a hard drive cage with support for 2 x 2.5 SSDs and 1 x 3.5 HDDs while retaining space for the PSU.
On the Motherboard tray it supports a total of 2 x 2.5 SSDs, the Motherboard tray and the cover of the power supply offers several openings for cable management.
A removable dust filter is located beneath the power supply to keep your system clean long after your build is finished. With a USB2.0 and USB3.0 ports, the Silent ES has all the features needed to build an outstanding and quiet PC.
Specifications
Chassis Dimensions (Excluding Fascia / Panels): (W) 206 x (H) 430 x (D) 350mm
Fans Powered Via: 4 Pin PWM Fan Connector
PSU Max. Length: 180mm
Case Specifications
Form Factor
Midi Tower
Motherboard Support
ATX, Micro ATX, Extended ATX, Mini ITX
PSU Support
Standard ATX
PSU Location
Bottom
Gaming Case
Yes
Water Cooling
Water Cooling Ready!
Supported Radiator Size
360mm
Supported Radiator Positions
Front
Body Material
0.6mmSPCC
Front Bezel Material
ABS
Side Panel
Metal With Acoustic Matting
Internal Cable Management Depth
23mm
External Bays
n/a
Internal Bays
2 x 3.5" Internal
2 x 2.5" Internal
Expansion Slots
7 x Full Size
Cooling
Cooling Front: Space For 3 x 120mm Fans (1 x 120mm White Fin Fan Included)
Cooling Top: None
Cooling Rear: Space For 1 x 120mm Fan (1 x 120mm White Fin Fan Included)
Cooling Side: None
Cooling Bottom: None
IO Ports
1 x USB 3.0
2 x USB 2.0
1 x HD Audio
1 x Microphone
GPU Max Length
320mm
CPU Cooler Maximum Height
165mm
Front Bezel Colour
Black
Body Colour
Black
PSU Included
No
General Specifications
Manufacturer Part Number: CIT-SILENTES
EAN Number: 5055492413239
Has Mains Plug: No
Colour: Black
What's In The Box: Case
Accessory Pack
Manual
Unit (Product) Dimensions (mm): 206mm x 446mmx 381mm (W x H x D)
Packaging Dimensions (mm): 273mm x 477mm x 483mm (W x H x D)
Net Weight (KGs): 4.7 KGs
Gross Weight (KGs): 5.7 KGs
Warranty:
1 Year Return To Base Warranty
Return-to-Base warranty returns are processed within 14 business days of confirmed date of receipt - see our
Returns Policy for more information.
|
COOLING
|
| Front fans installed |
1x 120 mm |
| Number of front fans supported (max) |
3 |
| Front fans diameters supported |
120 mm |
| Rear fans diameters supported |
120 mm |
| Number of rear fans supported (max) |
1 |
| Rear fans installed |
1x 120 mm |
| Liquid cooling capability |
Yes |
DESIGN
|
| Type |
PC |
| Form factor |
Midi Tower |
| Material |
SPCC, Acrylonitrile butadiene styrene (ABS), Metal |
| Product colour |
Black |
| Cable management |
Yes |
| Supported motherboard form factors |
ATX, micro ATX, EATX, ITX |
| Number of 3.5" bays |
2 |
| Suitable for |
Gaming |
| Number of internal 3.5" bays |
2 |
| Maximum CPU cooler height |
16.5 cm |
| Maximum graphics card length |
32 cm |
| Number of expansion slots |
7 |
| Maximum PSU length |
18 cm |
| Number of 2.5" bays |
2 |
| Full-Height expansion slots |
7 |
PACKAGING DATA
|
| Package weight |
5.7 kg |
| Package depth |
483 mm |
| Package height |
477 mm |
| Package width |
273 mm |
PORTS & INTERFACES
|
| Audio input |
Yes |
| USB 2.0 ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
POWER SUPPLY
|
| Power supply location |
Bottom |
| Supported power supply form factors |
ATX |
STORAGE
|
| Supported HDD sizes |
3.5" |
WEIGHT & DIMENSIONS
|
| Weight |
4.7 kg |
| Height |
430 mm |
| Width |
206 mm |
| Depth |
350 mm |
| Material thickness |
0.6 mm |
