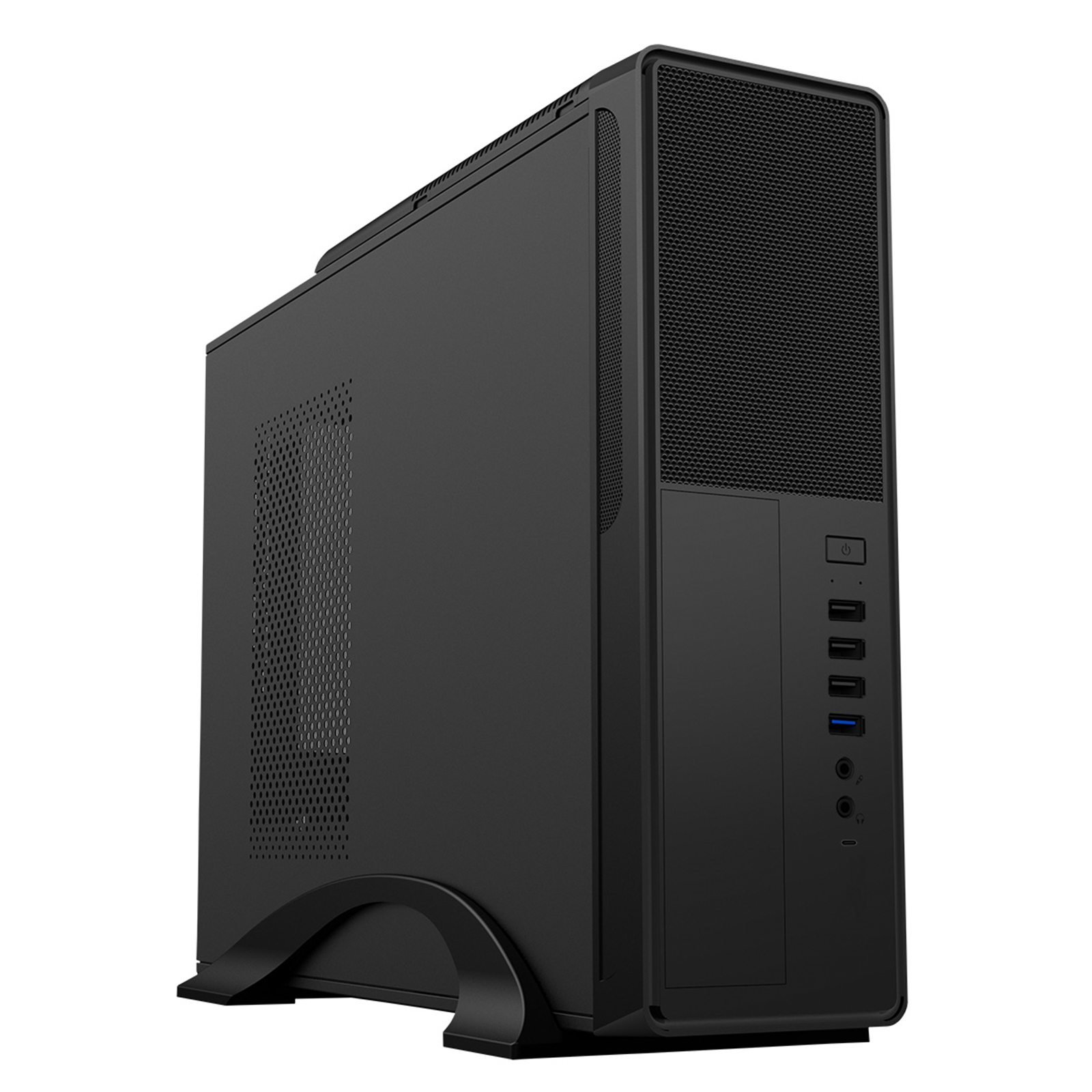

CiT S014C micro slim case, is a case with a very compact design. Allowing you to save desk space, the S014C front panel offers modern connectivity including USB 3.0 Type-C support. An 8cm fan is included at the top for effective airflow, and the S014C also comes with a silent micro SFX 300W PSU, helping to provide reliable performance for a business or home PC system.

Comes with 300W Micro ATX PSU

Comes with a 1 x 8cm Top Cooling Fan

Removeable HDD/ODD cage for help when assembling your PC

Slim compact design to save desk space

Front I/O includes USB 3.0 Type-C

PSU Specification
Rail: Max. DC Output
+3.3V: 16A
+5V: 16A
+12V: 14A
-12V: 0.3A
+5VSB: 2A

Connections
20 + 4 Pin ATX: 1
+12V 4 Pin CPU: 1
4 Pin Molex: 2
SATA: 3
FDD: 1

Form Factor
Micro Tower

Motherboard Support
Micro ATX
Mini-ITX

PSU Included
Yes

PSU Support
Micro ATX

PSU Location
Front

Body Material
0.5mm SECC Metal

Front Bezel Material
Plastic

Side Panel
Vented

Drive Bays
1 x 5.25" External
2 x 3.5" Internal
2 x 2.5" Internal
(1 x 2.5" uses a 3.5" bay)

Expansion Slots
4 x Half-Height

Cooling
Cooling Front: None
Cooling Top: Space For 1 x 80mm Fan (inc.)
Cooling Rear: None
Cooling Side: Vent
Cooling Bottom: Vent and Space for 1 x 50mm fan (Not Included) or SSD

I/O Ports
1 x USB 3.0 Type-A
1 x USB 3.0 Type-C
3 x USB 2.0
1 x HD Audio (Also Supports AC'97)
1 x Microphone

Clearance
Internal Cable Management Depth: 21mm
GPU Card Max Length: 225mm
CPU Cooler Max Height: 82mm

Front Bezel Colour
Black

Body Colour
Black

Product Dimensions ( W x H x D )
100 x 306 x 403mm
