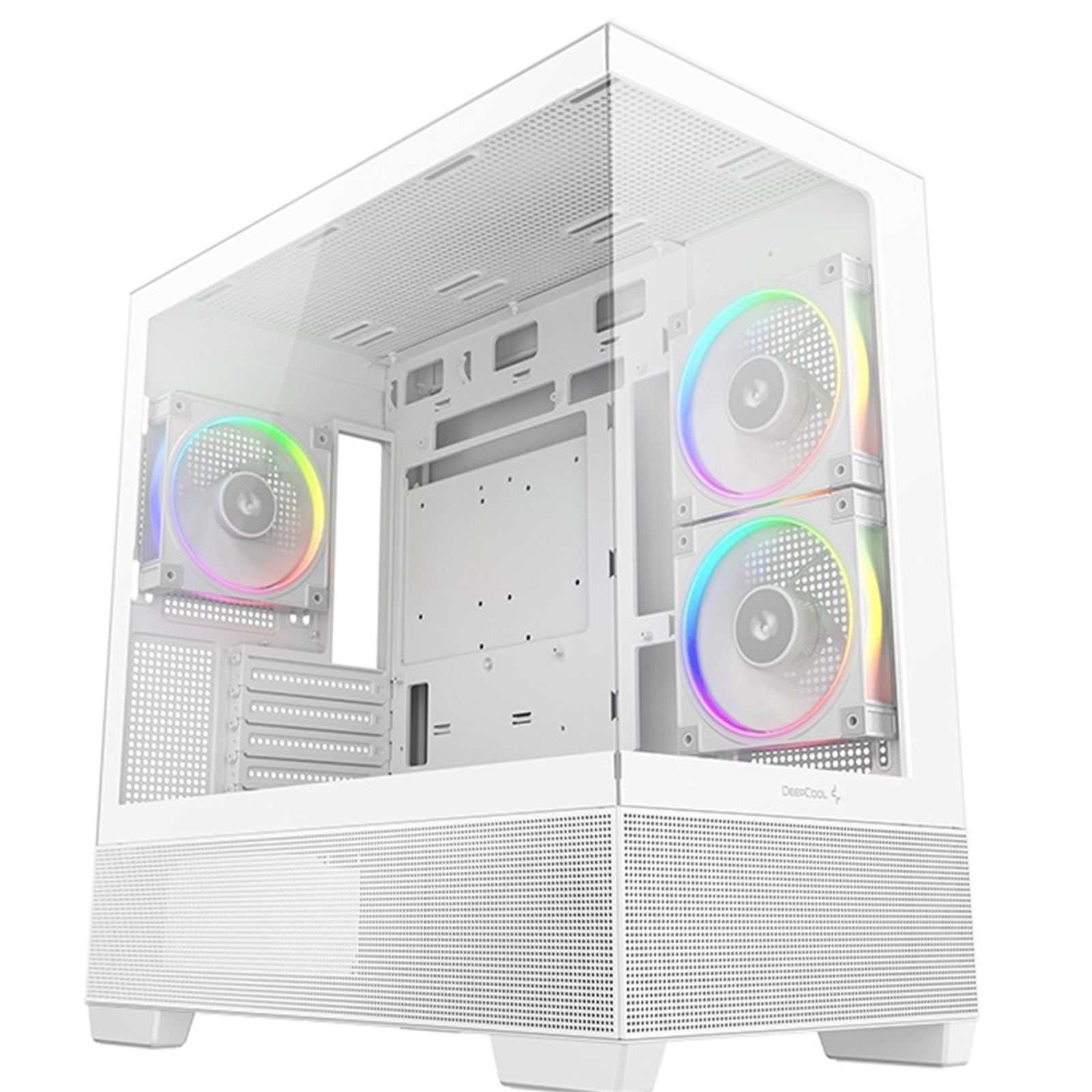

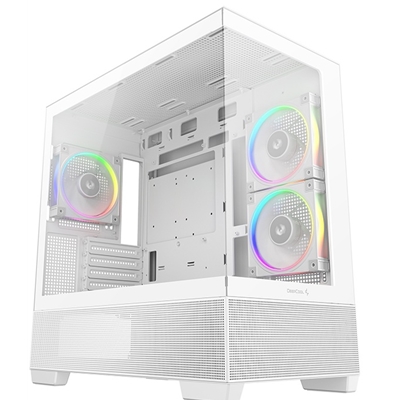

Deepcool CG380 3FWH panoramic Micro-ATX case, White
The CG380 3F is a panoramic Micro-ATX case that combines form and function in a space-efficient footprint. With three pre-installed PWM ARGB fans, it's a great choice for building a vibrant showcase with reliable airflow.
WIDE HARDWARE SUPPORT
Built to handle serious hardware, it supports GPUs up to 410mm, ATX PSUs up to 250mm, and CPU coolers up to 176mm tall, offering broad compatibility for high-performance components. A 33mm routing space behind the motherboard tray keeps everything neatly organized.
Specifications
Product Dimensions
437x235x451mm(LxWxH)
Net Weight
6.83kg
Materials
ABS+SPCC+Tempered Glass
Motherboard Support
ITX/Micro-ATX
Micro-ATX(Rear Connector)
Front I/O Ports
USB3.0 x2/Gen2 Type-C x1/Audio/Mic x1
3.5" Drive Bays
2
2.5" Drive Bays
3
Expansion Slots
5 Slots
Pre-Installed Fans
Side: 2x120mm
Rear: 1x120mm
Fan Support
Front: NA
Top: 3x120mm/2x140mm
Side: 2x120mm
Rear: 1x120mm/1x140mm
PSU Shrouded: 3x120mm
Radiator Support
Front: NA
Top: 120/140/240/280/360mm
Side: 120/240mm
Rear: 120/140mm
CPU Cooler Height Limit
176mm
GPU Length Limit
410mm
250mm
Warranty:
2 Year Return To Base Warranty
|
COOLING
|
| Side fans diameters supported |
120 mm |
| Rear fans diameters supported |
120,140 mm |
| Top fans diameters supported |
120,140 mm |
| Number of side fans supported (max) |
2 |
| Number of rear fans supported (max) |
1 |
| Number of top fans supported (max) |
3 |
| Side fans installed |
2x 120 mm |
| Rear fans installed |
1x 120 mm |
| Liquid cooling capability |
Yes |
| Rear radiator fan sizes supported |
120,140 mm |
| Top radiator fan sizes supported |
120,140,240,280,360 mm |
| Pulse-width modulation (PWM) support |
Yes |
| Side radiator fan sizes supported |
120,240 mm |
DESIGN
|
| Type |
PC |
| Form factor |
Midi Tower |
| Material |
Acrylonitrile butadiene styrene (ABS), SPCC, Tempered glass |
| LED indicators |
Yes |
| Product colour |
White |
| Illumination |
Yes |
| Supported motherboard form factors |
ITX, micro ATX |
| Anti-dust filter |
Yes |
| Number of 3.5" bays |
2 |
| Illumination colour |
Multi |
| Side window |
Yes |
| Maximum CPU cooler height |
17.6 cm |
| Maximum graphics card length |
41 cm |
| Number of expansion slots |
5 |
| Maximum PSU length |
25 cm |
| Illumination location |
Back, Side |
| Number of 2.5" bays |
3 |
| On/off button |
Yes |
| RGB control button |
Yes |
OTHER FEATURES
|
| Screws included |
Yes |
PORTS & INTERFACES
|
| Combo headphone/mic port |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
POWER SUPPLY
|
| Power supply location |
Bottom |
| Power supply included |
No |
STORAGE
|
| Supported HDD sizes |
2.5,3.5" |
WEIGHT & DIMENSIONS
|
| Weight |
6.83 kg |
| Height |
451 mm |
| Width |
235 mm |
| Depth |
437 mm |
