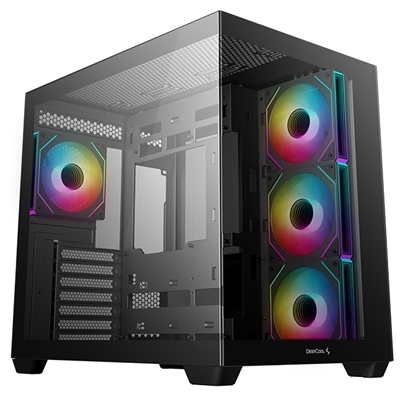

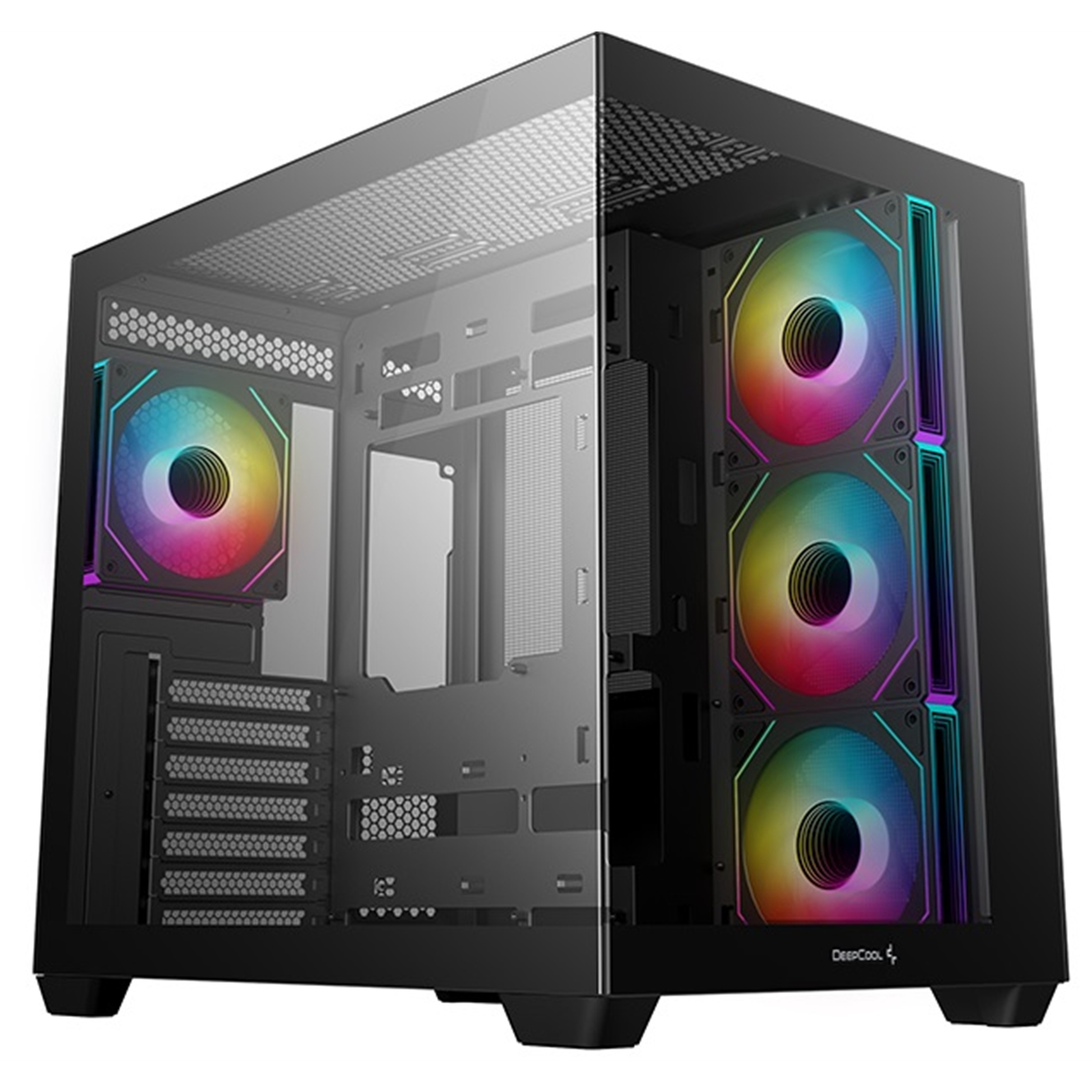

Experience the ultimate showcase build with the DeepCool CG530 4F Mid-Tower Case. Featuring a seamless, non A-pillar construction, the CG530 boasts both a tempered glass side panel and a glass front panel, providing a crystal-clear view of components. This case is designed to ensure excellent compatibility and optimal airflow with a sophisticated dual-chamber layout, keeping the internal layout neat and organized. Perfect for high-performance builds, the CG530 offers ample room for powerful hardware and exceptional cooling support.

Full Specification
Model:
CG530

Colour:
Black

Dimensions:
440x285x399mm (LxWxH)

Weight:
6.4Kg

Material:
ABS + SPCC + Tempered Glass

Motherboard Support:
ITX, Micro-ATX, ATX

Front I/O Ports:
2 x USB 3.0
1 x USB Type-C
1 x Audio/Mic

Drive Bays:
3.5" Drive Bays: 2
2.5" Drive Bays: 2 + 1

Expansion Slots:
7 Slots

included fans
3x 120mm PWM ARGB reverse flow fans on the side.
1x 120mm PWM ARGB standard fan on the rear

Fan Support:
Front: NA
Top: 3 x 120mm / 2 x 140mm
Side: 3 x 120mm / 2 x 140mm
Rear: 1 x 120mm
Bottom: 3 x 120mm (with HDD/SSD mounts)

Radiator Support:
Top: 120mm / 140mm / 240mm / 280mm / 360mm
Side: 120mm / 140mm / 240mm / 280mm
Bottom: 120mm / 240mm / 360mm

CPU Cooler Height Limit:
160mm

GPU Length Limit:
410mm

Power Supply Type:
ATX PS2 (maximum length: 210mm)

This case also includes magnetic air filters on the top and bottom panels for easy maintenance and dust prevention, as well as 45mm of wiring space for hassle-free cable management.
