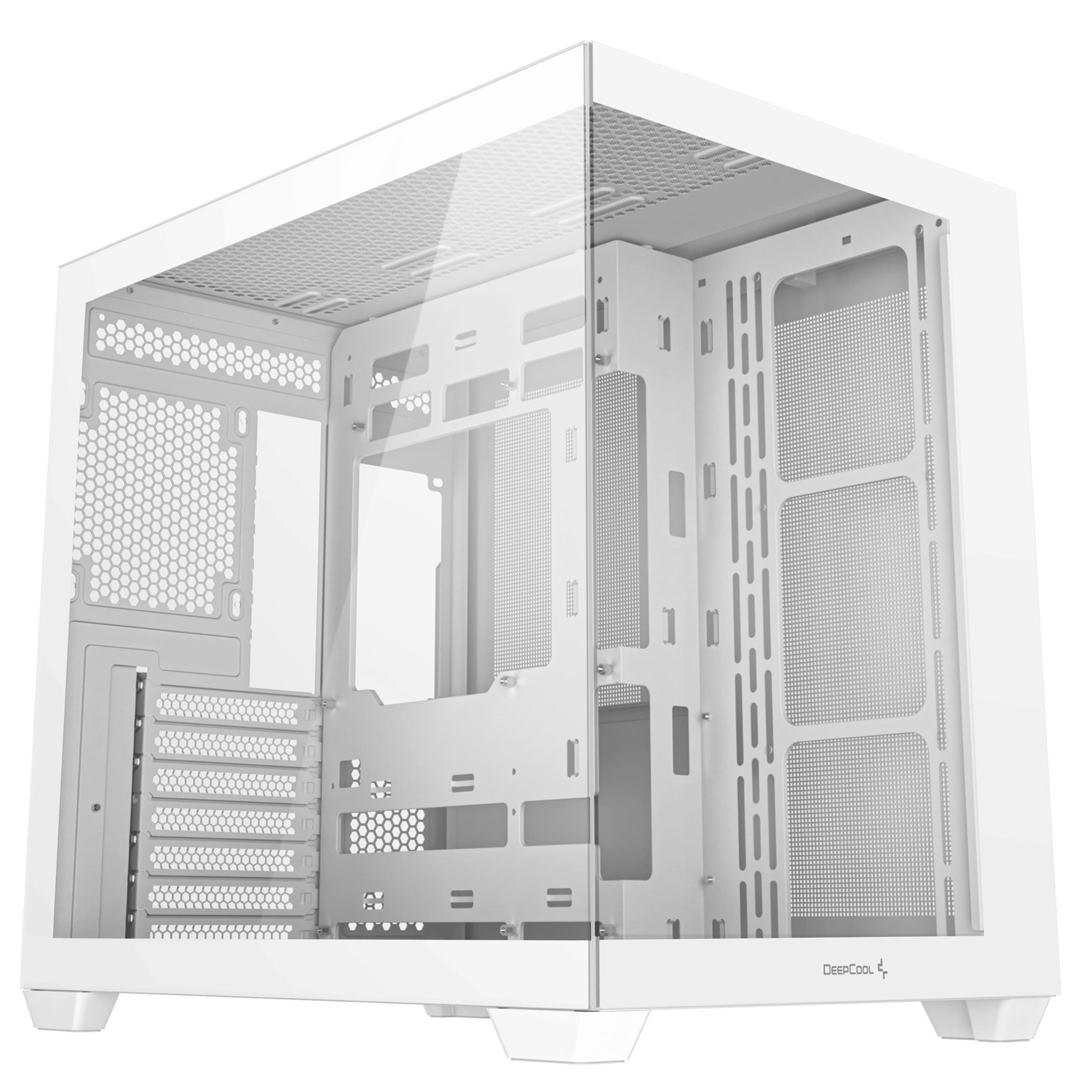

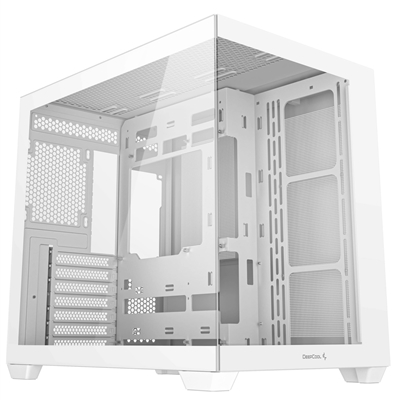

CG530 WH THE ULTIMATE ?SHOW? CASE

A BREATH OF FRESH AIR Experience the ultimate showcase build with its pillarless design. Featuring a seamless, non A-pillar construction, the CG530 WH boasts both a tempered glass side panel and a glass front panel, providing a crystal-clear view of components into full display, turning it into a true work of art.

ADVANCED DUAL-CHAMBER DESIGN Featuring a wide case structure with a sophisticated dual-chamber layout, this case ensures excellent compatibility and optimal airflow. The PSU and hard disks benefit from separate air channels, while support for rear connector motherboards keeps the internal layout impeccably neat and organized.

VERSATILITY AND COMPATIBILITY The CG530 WH accommodates components ranging from a 210mm PSU to a 410mm GPU, ensuring installation of the most powerful components without compromise. Supports ATX motherboards and offers 7 expansion slots, providing ample room for multiple GPUs, high-end sound cards, and other peripherals. Additionally, the CG530 WH features versatile storage options with 2 x 3.5" drive bays and 2+1 x 2.5" drive bays, allowing a mixture of storage solutions for optimal performance and capacity.

MAXIMUM COOLING CAPABILITIES Never fear the heat with CG530 WH's exceptional cooling support. Designed to house a variety of cooling components, it offers wide compatibility for radiators and fans to keep your system running cool under any load.

CPU Air Cooler: Supports coolers up to 160mm in height.

EASY MAINTENANCE AND CABLE MANAGEMENT Keep your build pristine and your components dust-free. The top and bottom panels are equipped with magnetic air filters, making cleaning a breeze and providing robust dust prevention. Additionally, the backplane offers an impressive 45mm of wiring space, ensuring that cable management is straightforward and hassle-free. Enjoy a clean, organized interior that enhances airflow and simplifies maintenance.

WELL CONNECTED Additional I/O ports, featuring dual USB 3.0, USB 2.0, and 2-in-1 audio port, offer seamless connectivity for multiple devices, enhancing user versatility and system integration.

Product Specifications

Dimensions
440x285x399mm (LxWxH)

Net Weight
6.5 Kg

Materials
ABS, SPCC, Tempered Glass

Motherboard Support
ITX/Micro-ATX/ATX

Front I/O Ports
USB3.0 x2
USB2.0 x1
Audio/Mic x1

3.5" Drive Bays
2

2.5" Drive Bays
2+1

Expansion Slots
7 Slots

Pre-Installed Fans
None

Fan Support

Top
3×120mm / 2×140mm

Side
3x120mm / 2x140mm

Rear
1x120mm

Bottom
3x120mm

Radiator Support

Top 120/140/240/280/360mm

Side 120/140/240/280mm

Bottom 120/240/360mm

CPU Cooler Height Limit
160mm

GPU Length Limit
410mm

Power Supply Type
ATX PS2 (maximum length: 210mm)

EAN
6933412765141

P/N
R-CG530-WHNDA0-G-1
