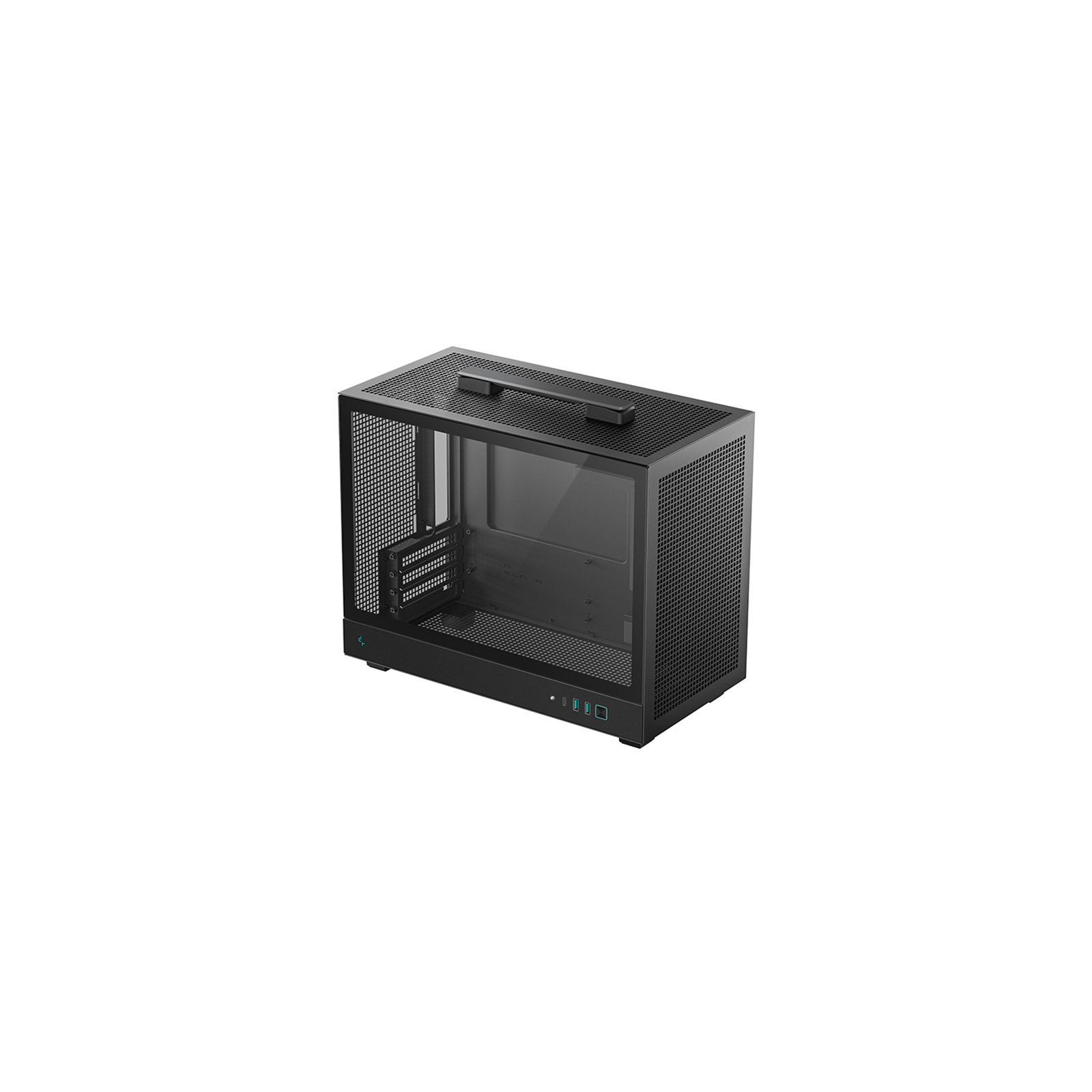

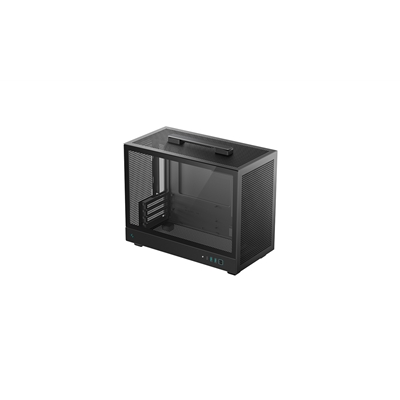

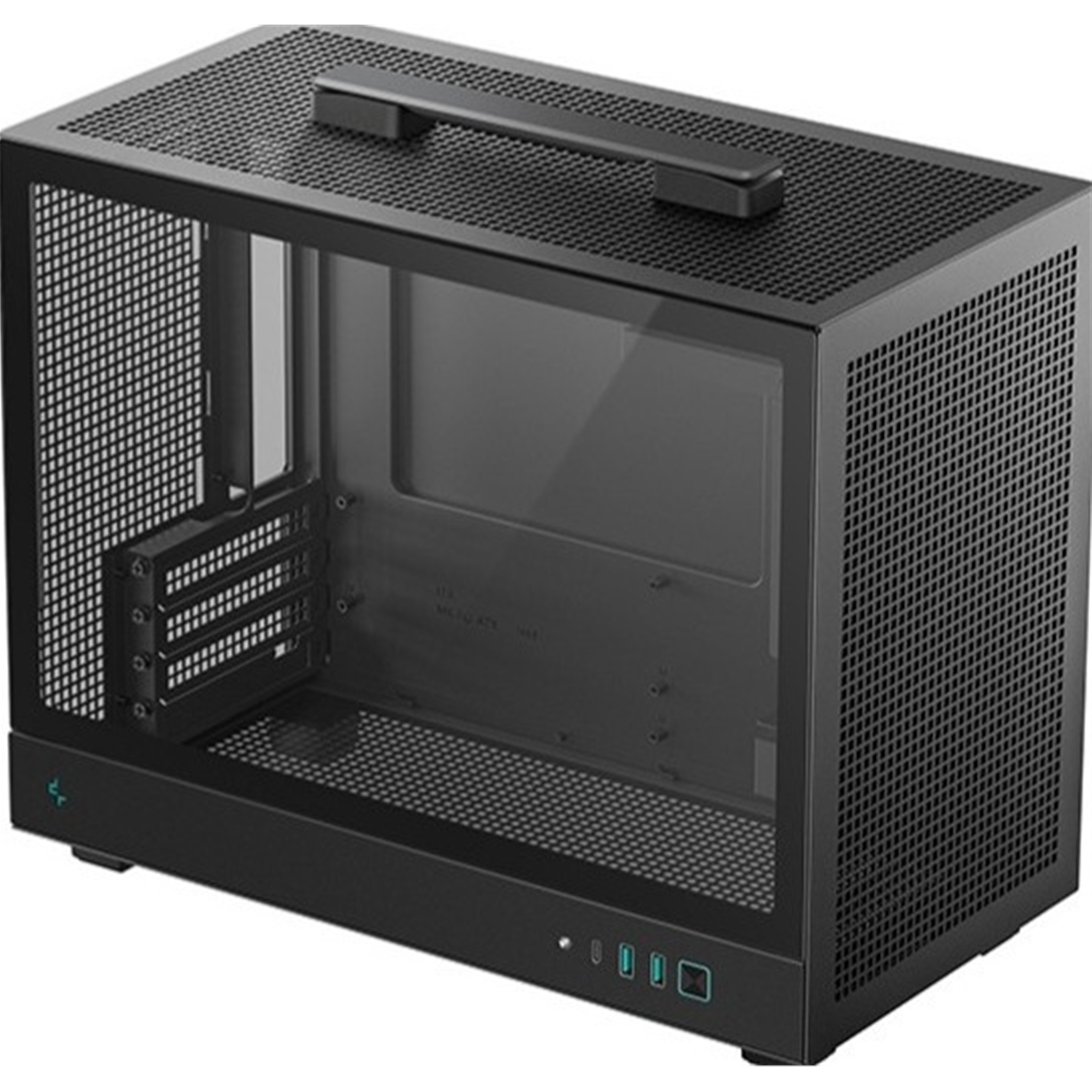

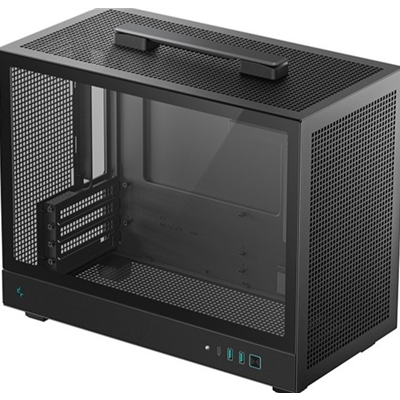

Deepcool CH160 PLUS

The CH160 PLUS retains the clean, compact aesthetic of the original CH160, while expanding support for Micro-ATX motherboards and 240mm liquid cooling.

BUILT TO BREATH
Mesh panels wrap the CH160 PLUS to boost airflow in a size-conscious design. The integrated top handle makes it easy to move and reposition whenever you need.

NOW WITH LIQUID COOLING!
Liquid cooling is now part of the experience, with support for up to a 240mm radiator on top.
Radiators:
Front: NA
Top: 120/240mm
Bottom: NA
Rear: 120mm
Fans:
Front: 1x120mm / 1x140mm (with SFX PSU)
Top: 2x120mm
Rear: 1x120mm
CPU Cooler:164mm

BUILT TO FIT MORE
With minimal growth in size, it expands compatibility with support for Micro-ATX motherboards, GPUs up to 342mm (328mm with front fan installed), and full-sized ATX PSUs up to 140mm. A fourth expansion slot opens the door to more powerful builds.

CUSTOMIZE WITH PURPOSE
Personalize with DeepCool accessories like the HB-01 headset holder and PIXEL decorative bits to give your build a unique touch.

CONVENIENCE IN EVERY DETAIL
Everyday access is easy with two USB 3.0 ports, a Gen2 Type-C, and a hybrid audio jack all within reach. Dust filters on three sides keep maintenance simple and your build clean.

Specifications

Product Dimensions - 375mmx195mmx323.5mm(LxWxH)
Net Weight - 4.2Kg
Materials - ABS+SPCC+Tempered Glass
Motherboard Support - Mini-ITX / Micro-ATX
Front I/O Ports - USB3.0x2, Gen2 Type-C x1, Audio/Micx1
3.5" Drive Bays - 1
2.5" Drive Bays - 1+1
Expansion Slots - 4Slots
Pre-Installed Fans - None

Manufacturer's Website:

uk.deepcool.com

Warranty:

2 Year Return To Base Warranty

COOLING
Number of front fans supported (max)	1
Front fans diameters supported	120,140 mm
Rear fans diameters supported	120 mm
Top fans diameters supported	120 mm
Number of rear fans supported (max)	1
Number of top fans supported (max)	2
Liquid cooling capability	Yes
Rear radiator fan sizes supported	120 mm
Top radiator fan sizes supported	120 mm
DESIGN
Type	PC
Form factor	Small Form Factor (SFF)
Material	Acrylonitrile butadiene styrene (ABS), Tempered glass, SPCC
Product colour	Black
Supported motherboard form factors	micro ATX, Mini-ITX
Number of 5.25" bays	0
Number of 3.5" bays	1
Side window	Yes
Maximum CPU cooler height	16.4 cm
Maximum graphics card length	34.2 cm
Number of expansion slots	4
Maximum PSU length	14 cm
Number of 2.5" bays	1
On/off button	Yes
Tempered glass panel(s)	Yes
PORTS & INTERFACES
USB 2.0 ports quantity	0
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
POWER SUPPLY
Power supply location	Top
Power supply included	No
Supported power supply form factors	ATX, PS2, SFX, SFX-L
STORAGE
Supported HDD sizes	2.5,3.5"
WEIGHT & DIMENSIONS
Weight	4.2 kg
Height	323.5 mm
Width	195 mm
Depth	375 mm
