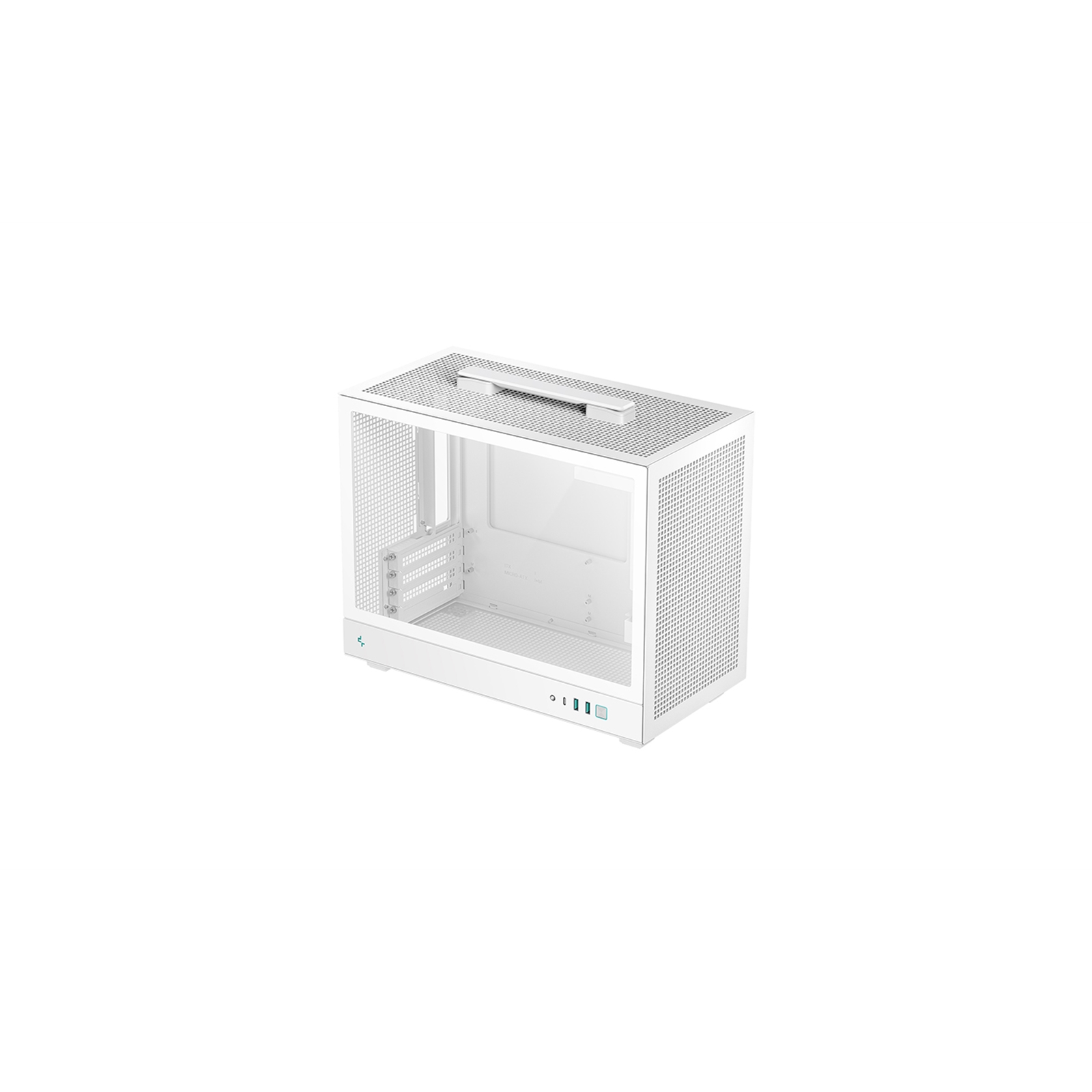

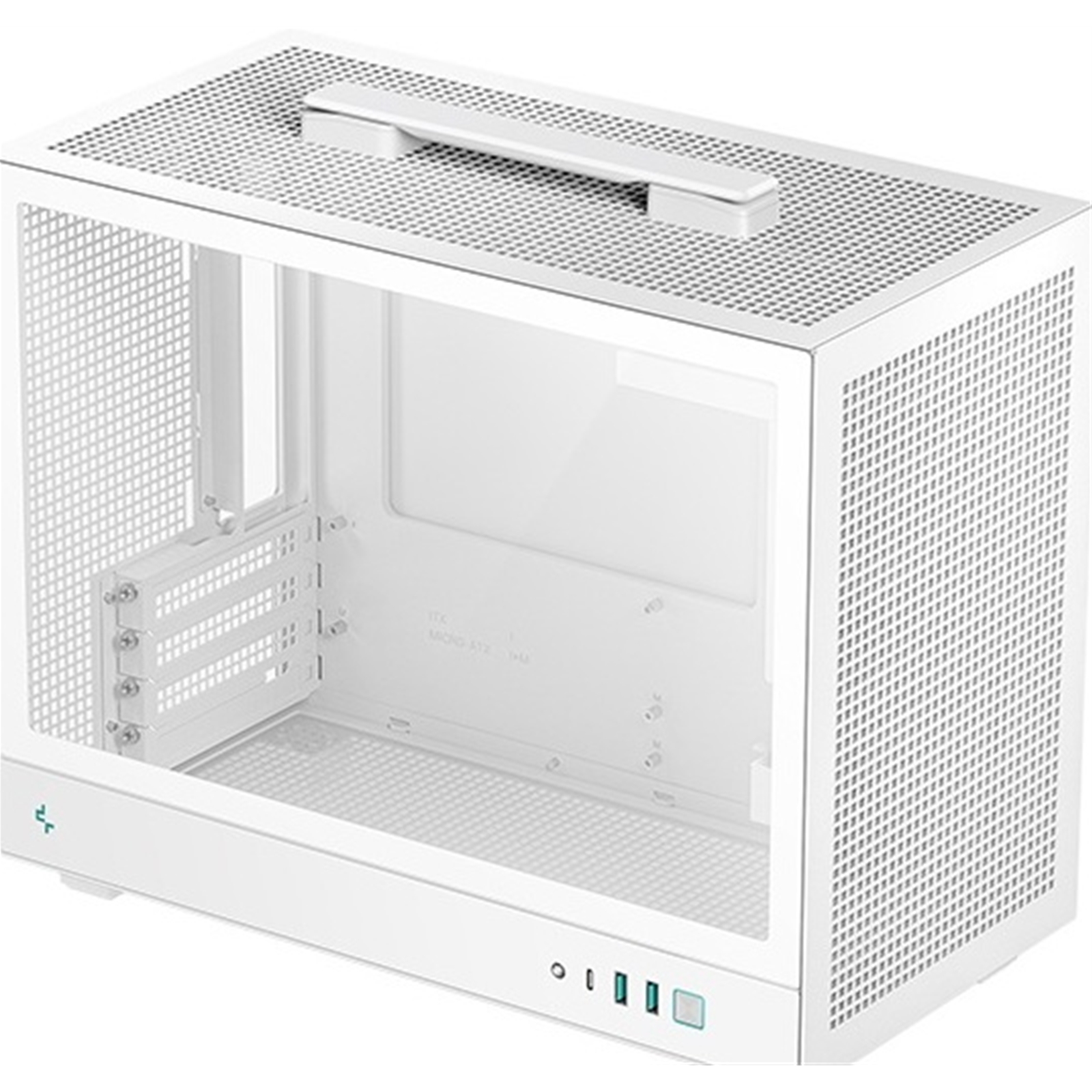

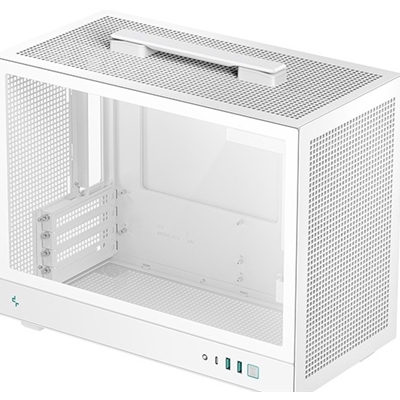

The DeepCool CH160 PLUS is a compact yet highly capable Micro-ATX chassis designed for modern high-performance builds. Retaining the clean, minimalist look of the original CH160, the PLUS model expands compatibility to support Micro-ATX motherboards, larger GPUs, and 240mm liquid cooling.

Mesh panels surround the chassis to maximise airflow while maintaining a compact footprint. An integrated top carry handle makes the system easy to move, ideal for flexible workspaces or compact gaming setups.

With support for 240mm radiators, GPUs up to 342mm, and CPU coolers up to 164mm, the CH160 PLUS provides impressive performance potential in a space-efficient design. Convenient front I/O connectivity including USB 3.0 and Gen2 USB-C ensures fast and easy access to modern devices.

Compact Micro-ATX chassis with mesh airflow design

240mm radiator support for liquid cooling

Integrated carry handle for easy portability

Supports GPUs up to 342mm

Gen2 USB Type-C front I/O

Tempered glass side panel

Compatible with ATX power supplies

Case Specifications

Form Factor
Mini Tower

Motherboard Support
Micro-ATX
Mini-ITX

PSU Support
ATX / SFX

PSU Location
Front / Bottom Mount

Body Material
SPCC Steel

Front Bezel Material
ABS / Mesh

Side Panel
Tempered Glass

Drive Bays
1 x 3.5" Internal
2 x 2.5" Internal

Expansion Slots
4 x Full Size

Cooling
Front: 1 x 120mm or 1 x 140mm (with SFX PSU)
Top: 2 x 120mm
Rear: 1 x 120mm
Bottom: None

Radiator Support
Front: None
Top: 120mm / 240mm
Rear: 120mm

Pre-Installed Fans
None

IO Ports
2 x USB 3.0
1 x USB Type-C (Gen2)
1 x Audio / Mic Combo

GPU Max Length
342mm (328mm with front fan installed)

CPU Cooler Maximum Height
164mm

PSU Max Length
140mm

Front Bezel Colour
White

Body Colour
White

PSU Included
No

Manufacturer's Website:

uk.deepcool.com

Warranty:

2 Year Return To Base Warranty

Return-to-Base warranty returns are processed within 14 business days of confirmed date of receipt - see our Returns Policy for more information.

COOLING
Number of front fans supported (max)	1
Front fans diameters supported	120,140 mm
Rear fans diameters supported	120 mm
Top fans diameters supported	120 mm
Number of rear fans supported (max)	1
Number of top fans supported (max)	2
Liquid cooling capability	Yes
Rear radiator fan sizes supported	120 mm
Top radiator fan sizes supported	120,240 mm
DESIGN
Type	PC
Form factor	Small Form Factor (SFF)
Material	Acrylonitrile butadiene styrene (ABS), SPCC, Tempered glass
Product colour	White
Supported motherboard form factors	micro ATX, Mini-ITX
Anti-dust filter	Yes
Number of 5.25" bays	0
Number of 3.5" bays	1
Side window	Yes
Maximum CPU cooler height	16.4 cm
Maximum graphics card length	34.2 cm
Number of expansion slots	4
Maximum PSU length	14 cm
Number of 2.5" bays	1
On/off button	Yes
Tempered glass panel(s)	Yes
PORTS & INTERFACES
USB 2.0 ports quantity	0
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
POWER SUPPLY
Power supply location	Top
Power supply included	No
Supported power supply form factors	ATX, PS2, SFX, SFX-L
STORAGE
Supported HDD sizes	2.5,3.5"
WEIGHT & DIMENSIONS
Weight	4.2 kg
Height	323.5 mm
Width	195 mm
Depth	375 mm
