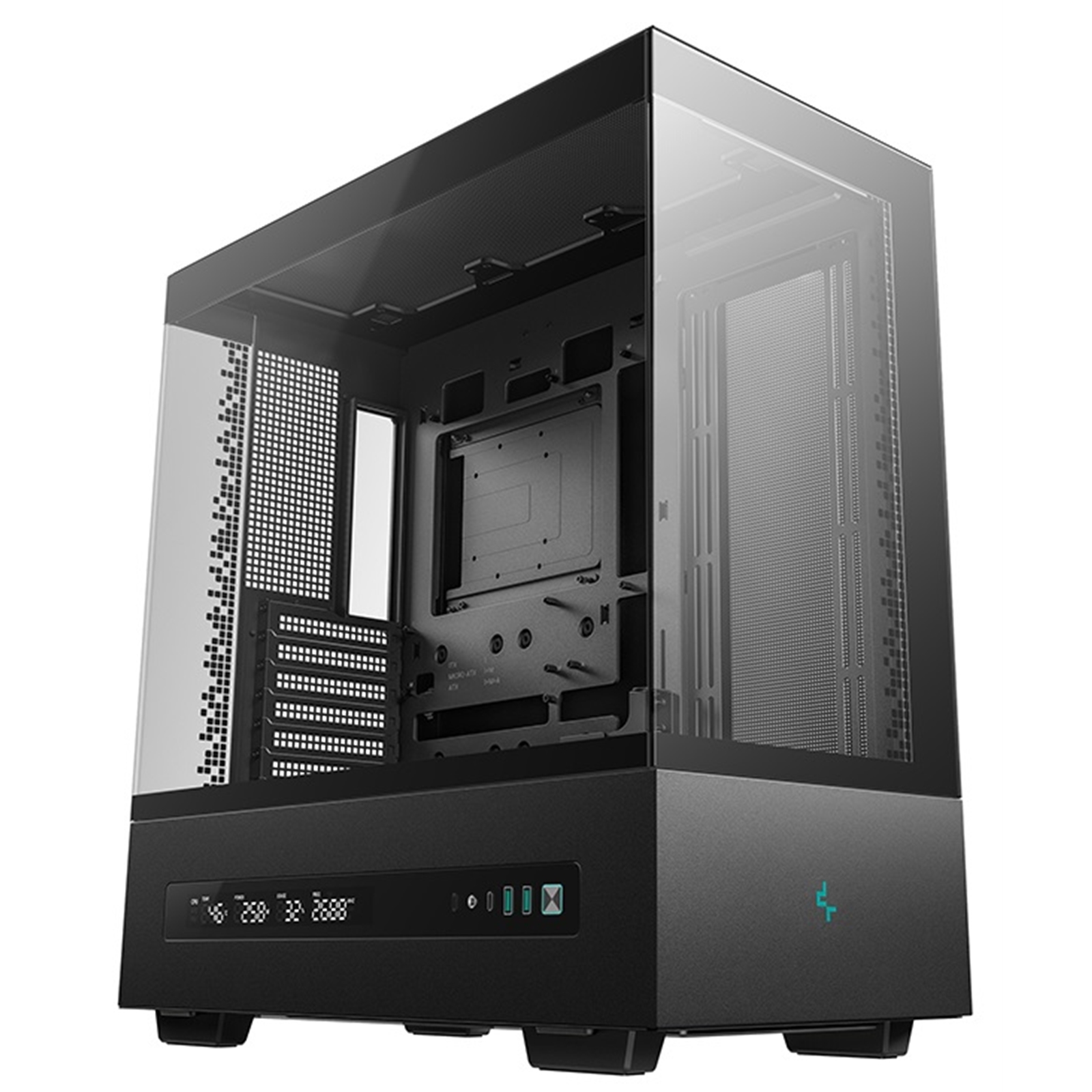

The DeepCool CH690 Digital Black ATX Case is designed with beauty and adaptability in mind. It features a semi-glass panel that offers an expansive view of installed components. For those seeking enhanced performance, the rear of the case supports DIY modifications, allowing users to replace the semi-glass panel with a mesh panel and fan bracket to boost horizontal airflow. Additionally, the integrated light strip slot enables the addition of light strips to create an immersive gaming atmosphere, blending aesthetics with functionality for a truly personalized setup.

Specifications
Model Number:
R-CH690-BKNNA0D-G-1

Case Type:
Mid-Tower

Motherboard Support:
Mini-ITX, Micro-ATX, ATX

Dimensions:
552mm (L) x 332mm (W) x 589mm (H)

Net Weight:
9.8 kg

Materials:
ABS, SPCC, Tempered Glass

Front I/O Ports:
2 x USB 3.0
1 x USB Type-C (Gen 2)
1 x HD Audio/Mic

Drive Bays:
1 x 3.5" Drive Bay
2 x 2.5" Drive Bays

Expansion Slots:
8

Pre-Installed Fans:
None

Fan Support:
Top: 3 x 120mm / 3 x 140mm
Side: 3 x 120mm / 3 x 140mm
PSU Shroud: 3 x 120mm / 3 x 140mm
Rear: 1 x 120mm / 1 x 140mm

Radiator Support:
Top: 120mm / 140mm / 240mm / 280mm / 360mm / 420mm
Side: 120mm / 140mm / 240mm / 280mm
PSU Shroud: 120mm / 240mm / 360mm

CPU Cooler Height Limit:
182mm

GPU Length Limit:
450mm

Power Supply Type:
ATX PS2 (maximum length: 180mm)

Warranty:
1 Year

Manufacturer's Website:

uk.deepcool.com

Warranty:

1 Year Return To Base Warranty

COOLING
Number of front fans supported (max)	3
Front fans diameters supported	120,130 mm
Side fans diameters supported	120,140 mm
Rear fans diameters supported	120 mm
Top fans diameters supported	120,140 mm
Bottom fans diameters supported	140 mm
Number of side fans supported (max)	3
Number of rear fans supported (max)	1
Number of top fans supported (max)	3
Number of bottom fans supported (max)	3
Liquid cooling capability	Yes
Top radiator fan sizes supported	120,140,240,280,360,420 mm
Bottom radiator fan sizes supported	120,240,360 mm
Side radiator fan sizes supported	120,140,240,280 mm
DESIGN
Type	PC
Form factor	Tower
Material	Acrylonitrile butadiene styrene (ABS), SPCC, Tempered glass
Product colour	Black
Cable management	Yes
Reset button	Yes
Supported motherboard form factors	ATX, micro ATX, Mini-ITX
Number of 5.25" bays	0
Number of 3.5" bays	1
Suitable for	Gaming
Side window	Yes
Maximum CPU cooler height	18.2 cm
Maximum graphics card length	45 cm
Number of expansion slots	8
Maximum PSU length	18 cm
Number of 2.5" bays	3
On/off button	Yes
Tempered glass panel(s)	Yes
DISPLAY
Built-in display	Yes
Display type	LCD
PORTS & INTERFACES
USB 2.0 ports quantity	0
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 3.2 Gen 2x2 Type-C ports quantity	0
POWER SUPPLY
Power supply location	Bottom
Power supply included	No
Supported power supply form factors	ATX, PS2
STORAGE
Supported HDD sizes	2.5,3.5"
SSD form factor	2.5"
WEIGHT & DIMENSIONS
Weight	9.8 kg
Height	516 mm
Width	240 mm
Depth	481 mm
