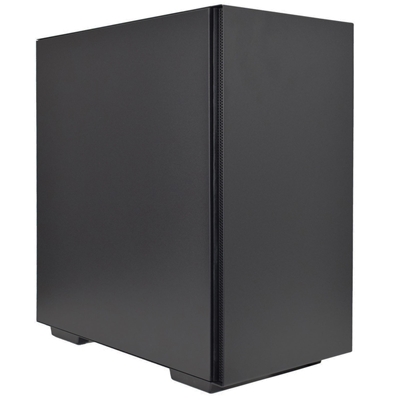

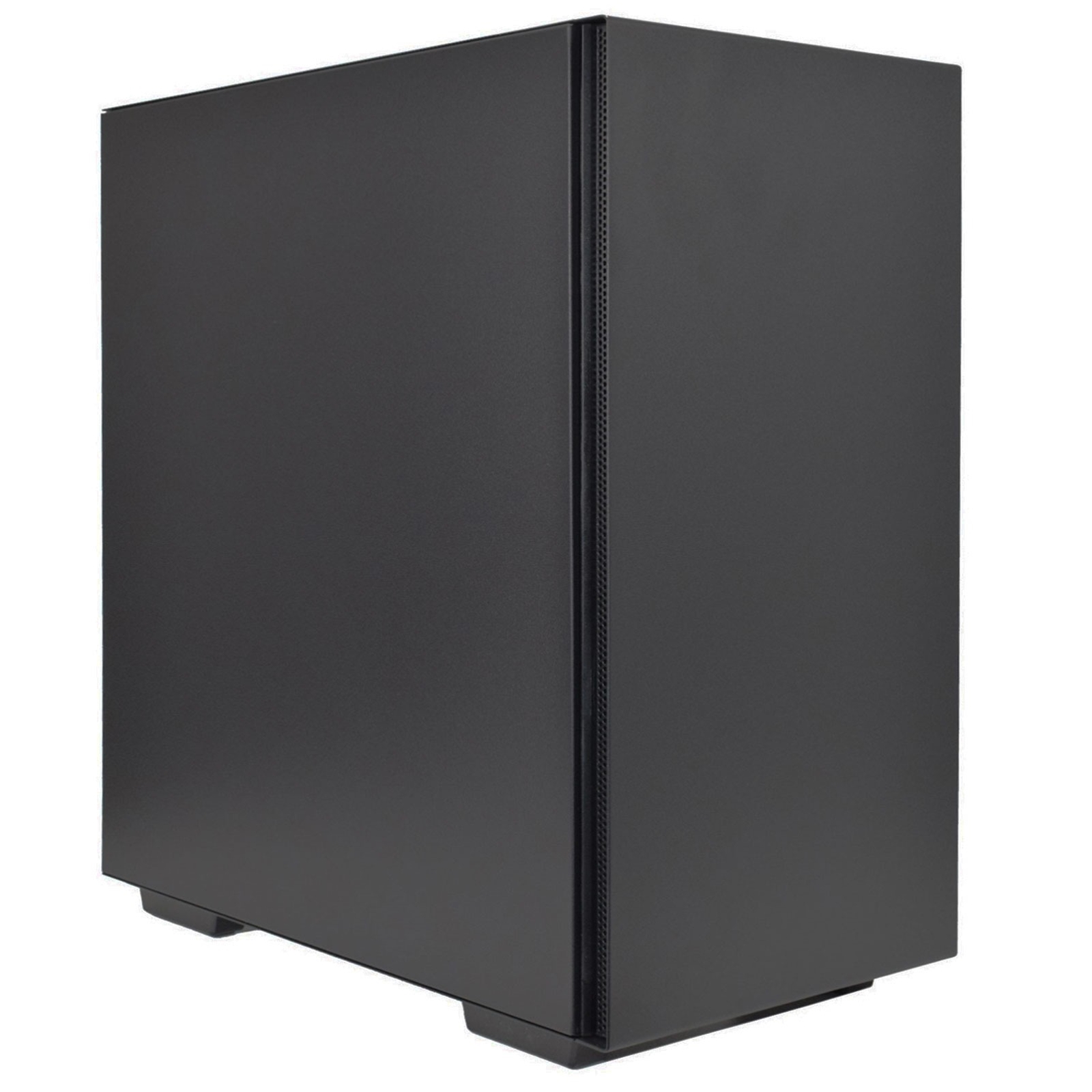

MACUBE 110
Refined Minimalism

The MACUBE 110 is a sleek micro-ATX case built with simplicity in mind, now featuring a solid side panel for a clean, understated look.
Keeping the best details of the MACUBE line while condensing them into a smaller form factor makes for a tidy and efficient build.

MAXIMUM COOLING, TINY FOOTPRINT
Install up to six 120mm or four 140mm cooling fans, with support for radiators up to 280mm on both the top and front for high-performance cooling. Prefer air cooling? With a generous 165mm CPU cooler clearance, the case easily accommodates high-end air coolers such as the ASSASSIN III.

REMOVABLE DRIVE CAGE
Create additional room for a longer power supply or larger radiator by repositioning or removing the HDD cage.

CLEARLY SENSIBLE
Designed for convenience, the case includes an adjustable GPU holder and a push-pin SSD holder for easy, tool-less installation and maintenance.

VENTILATED THROUGHOUT
Ventilation channels across the front and top panels ensure fresh airflow reaches every component, helping maintain optimal system temperatures.

Features
Refined minimalism design
Solid side panel for a clean, understated appearance
Mesh top panel
Support for up to six 120mm or four 140mm cooling fans
Radiator support up to 280mm on the top and front
Removable drive cage
Adjustable GPU holder included

Form Factor
Micro Tower

Motherboard
Micro ATX
Mini-ITX

Colour
Black

Materials
ABS
SPCC
Steel Side Panel

Drive Bays
Internal 3.5": 2
Internal 2.5": 2
External 3.5": 0
External 5.25": 0

Power Supply Support
ATX PS2

I/O Panel
2 x USB 3.0
1 x Audio

Expansion
Slots: 4

Cooling Fans Compatibility
Front: 3 x 120mm / 2 x 140mm
Top: 2 x 120mm / 2 x 140mm
Rear: 1 x 120mm DC fan (Pre-installed)

Liquid Cooler Compatibility
Front: 120 / 140 / 240 / 280
Top: 120 / 140 / 240 / 280
Rear: 120

Clearances

CPU Cooler Height Limit: 165mm
VGA Length Limit: 320mm
PSU Length Limit: 160mm
Cable Management: 20mm

Product Dimensions (L x W x H)
400mm x 225mm x 431mm

Packaging Dimensions (L x W x H)
470mm x 288mm x 470mm

Weight
Net: 5.8KG
Gross: 7.3KG
