Target Components

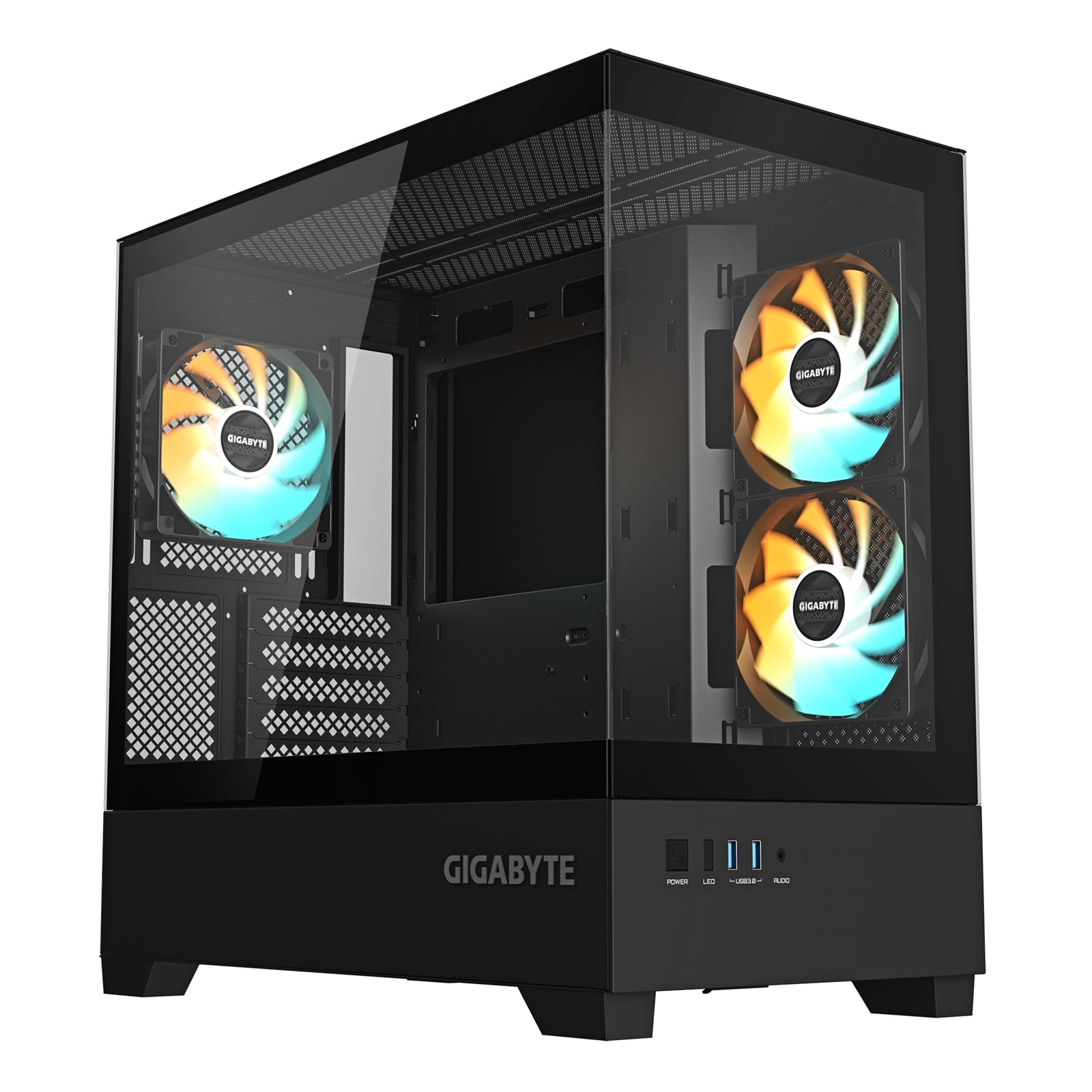

GIGABYTE C201 PANORAMIC

FEATURES
Optimized airflow design
Full-size tempered glass side panel
Dual USB 3.0 ports on front I/O
Supports radiators up to 360mm
Detachable dust filters

Specifications

Case Form Factor
Mid Tower

M/B Type
mini-ITX/m-ATX

Color
Black

Materials
Steel, Plastic, Glass

Dimensions
H431x W242x D430 mm (Within ± 1% error)

Expansion Slots
5

5.25" Drive Bays
None

3.5" Drive Support
2

2.5" Drive Support
1+2 (replace from 3.5")

I/O Panel
USB 3.0 x2
RGB LED Switch
Power Switch
Audio In & Out (Supports HD audio)

Pre-installed Fans
Side : 120mm x2 (ARGB)
Rear : 120mm x1 (ARGB)

Fan Support
Top : 120mm x3 / 140mm x2
Side : 120mm x2
Rear : 120mm x1 / 140mm x1
PSU shroud : 120mm x3

Radiator Support
Top : Max 360mm
Side : Max 240mm
Rear : Max 140mm

Power Supply Type
Standard ATX (not included)

Maximum Compatibility
CPU Height : 190mm
GPU Length : 410mm
PSU Length : 250mm

Dust Filters
Top, Bottom, Side

RGB Lighting
Yes (Support RGB Fusion)

Weight
N.W. 6.45 Kg
G.W. 7.9 Kg

Package Dimensions
H=502 W=313 D=525 mm

Accessories
1. Installation Guide
2. Accessories kit
Includes 3 ARGB fans
