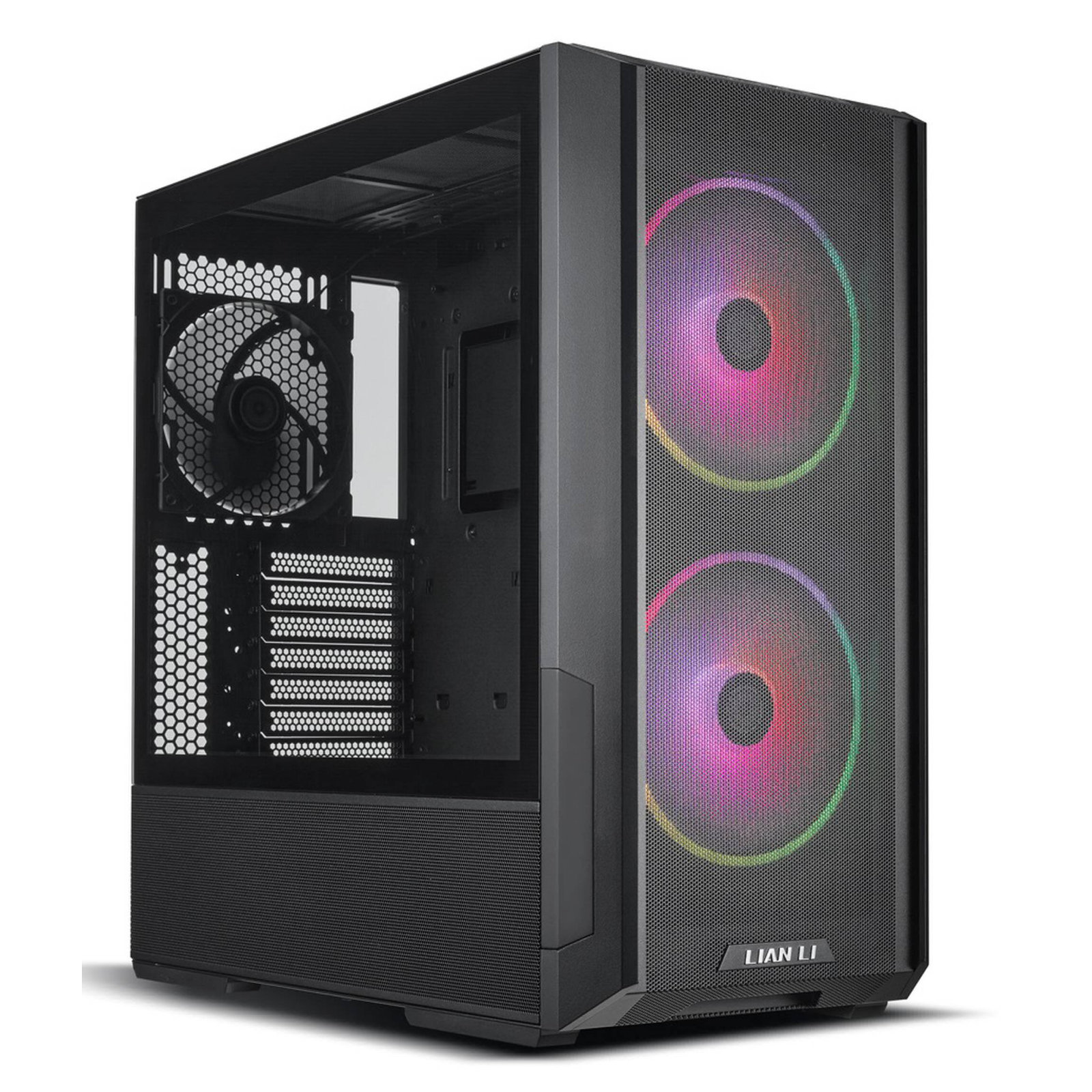

Lian Li Lancool 216 RGB Mid-tower PC case - Black

Specifications

Colour
Black

Dimensions
Length / Depth - 480.9 mm
Width - 235 mm
Height -491.7 mm

Case
Case Type
Mid Tower

Motherboard Support
Compatible Motherboard Formats

ATX, E-ATX, Micro-ATX, Mini-ITX

Max. Motherboard Format
E-ATX

Internal Dimensions
Max. CPU Cooler Height
180.5 mm
Max. GPU Length
392 mm
Max. PSU Length / Depth
220mm

Display
Display Included
No

Power Supply
PSU included
No
PSU Format
ATX
Power Supply Position
Rear Bottom

Cable Specifications
Riser Cable Included
No

Fan Support
Case Fan Support (Bottom)
120mm Fan (2x), 140mm Fan (2x)
Case Fan Support (Front)
120mm Fan (3x), 140mm Fan (2x), 160mm Fan (2x)
Case Fan Support (Rear)
120mm Fan (1x), 140mm Fan (1x)
Case Fan Support (Top)
120mm Fan (3x), 140mm Fan (2x)
Max. Number of Fans
10
120 mm fans
10
140 mm fans
7
160 mm fans
2

Radiator Support
Max. Radiator Compatibility
2x Triple (360 mm)
Radiator/AIO Support (Bottom)
240mm Radiator
Radiator/AIO Support (Front)
240mm Radiator, 280mm Radiator, 360mm Radiator
Radiator/AIO Support (Top)
240mm Radiator, 280mm Radiator, 360mm Radiator

Drive Bays
Max. 2.5 Inch Drives
6
Max. 3.5 Inch Drives
2
Max. 5.25 Inch Drives
0
2.5 inch internal drive bay
6
3.5 inch internal drive bay
2
1x 3.5 / 1x 2.5 Inch Internal Drive Bays (combined)
2
Hot swap drive bays
No

External Ports
Front I/O – USB Type C Ports Total
1
Front I/O – USB Type A Ports Total
2
USB 3.1 (external) Type C
1
USB 3.0 (external) Type A
2
Audio outputs & inputs
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)

Case Features
I/O position
Front
Side panel
with mesh
Vertical GPU Mount
No
Adjustable Vertical GPU Bracket
No
Front door
No
Cable Management
Yes
Filters Included
Yes
Filter Position
Bottom
Noise dampening
No
Mainboard slide / tray
No
Transport System
No

Back Connect
Back Connect
No

Expansion Slots
Expansion slots / PCI slots
7

Features
Housing Feedthrough
No

Connectivity
Card reader
No

Fan Header
Fan Controller / Fan Hub
Yes
4 Pin Fan Connectors
6

Mounting
Case VESA Mountable
No
Internal Monitor Mount
No

Materials
Materials
Steel, Tempered Glass

Lighting
Lighting / RGB
Yes
Fan / RGB control
Yes
RGB Controller
Yes
RGB Type
ARGB / DRGB
Number of RGB Connectors
4
Lighting Colour
RGB

Additional Contents
Fans Included
Yes
Included fans
1x 140 mm, 2x 160 mm
