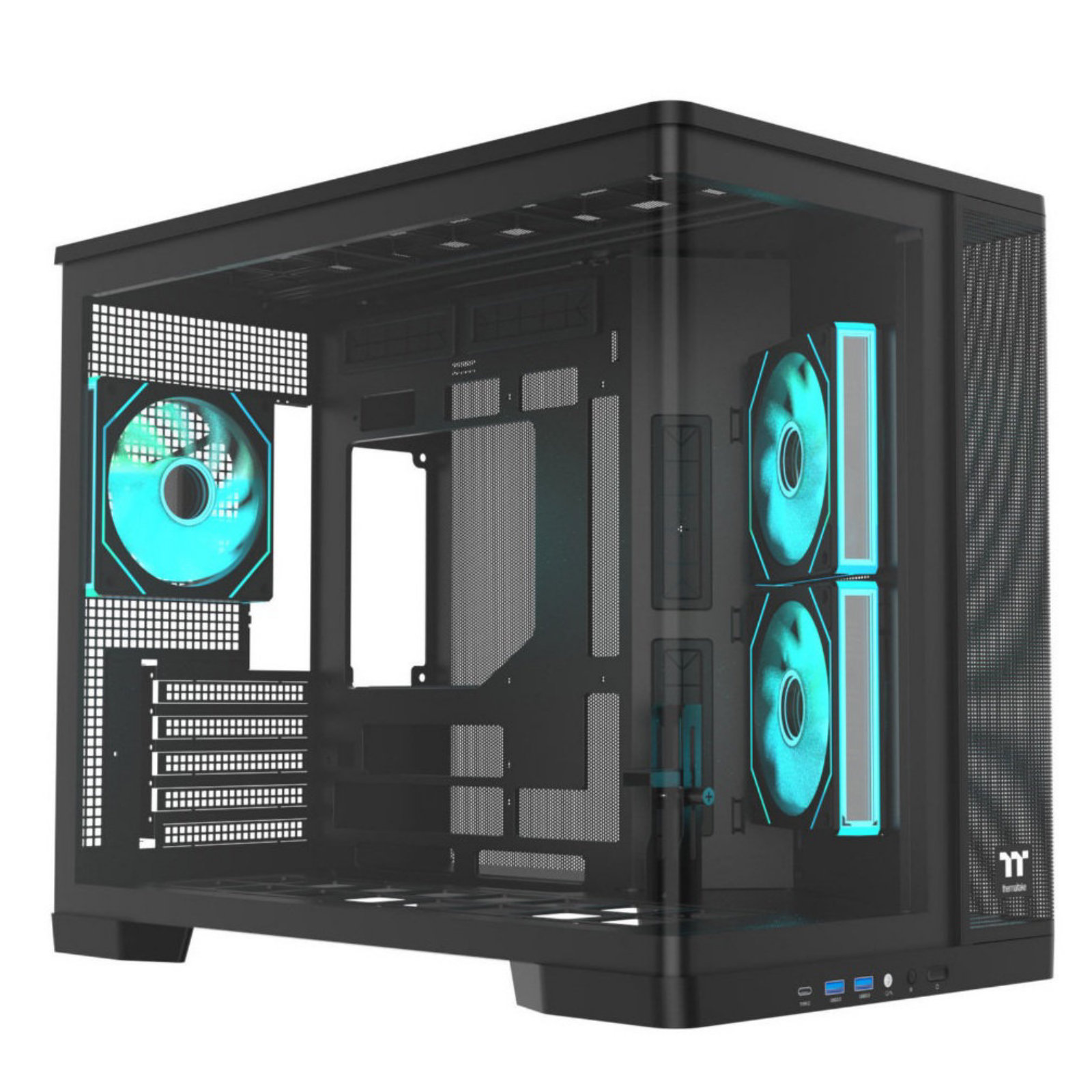

Thermaltake Arcus 280 TG Micro Tower Gaming Case - Black
Features
Connection: Top I/O ports with USB 3.1 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
Ventilation :
Right(intake): 20 x 120 x 25 mm Infinity ARGB Reverse PWM Fan (1500 rpm, 24.9 dBA) x 2
Rear(exhaust): 120 x 120 x 25 mm Infinity ARGB PWM Fan (1500 rpm, 21.8 dBA) x 1
Supports: Supports AIO cooling solutions
Specifications
Model
Arcus 280 TG ARGB
P/N
CA-11Y-00M1WN-00
Colour
Black
Case Type
Micro Tower
Chassis Dimensions (H*W*D)
387 x 285 x 478mm
(15.24 x 11.22 x 18.81 inch)
Panel
4mm Tempered Glass x 1
Material
SPCC
Cooling System
Right(intake): 120 x 120 x 25 mm Infinity ARGB Reverse PWM Fan (1500 rpm, 24.9 dBA) x 2
Rear(exhaust): 120 x 120 x 25 mm Infinity ARGB PWM Fan (1500 rpm, 21.8 dBA) x 1
Drive Bays
1 xx3.5?+1 x 2.5? or 2 x 2.5?
Expansion Slots
5
Motherboards
6.7? x 6.7? (Mini ITX), 9.6? x 9.6? (Micro ATX)
Hidden-Connector Motherboards
9.6? x 9.6? (Micro ATX)
I/O Port
USB 3.1 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
PSU
Standard PS2 PSU (optional)
Fan Support
Top: 3 x 120mm, 2 x 120mm, 1 x 120mm,
2 x 140mm, 1 x 140mm,
Right: 2 x 120mm
Rear: 1 x 120mm
Bottom: 3 x 120 mm , 2 x 120 mm , 1 x 120mm
Radiator Support
Top: 1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Clearance
CPU cooler height limitation: 160mm
VGA length limitation: 430mm
PSU length limitation: A/180mm, B/195mm, C/205mm,D/250mm
Warranty:
3 Year Return To Base Warranty
Return-to-Base warranty returns are processed within 14 business days of confirmed date of receipt - see our
Returns Policy for more information.
