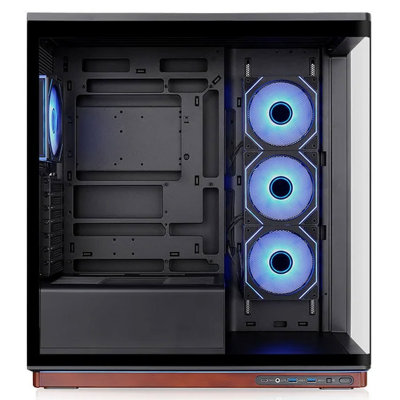

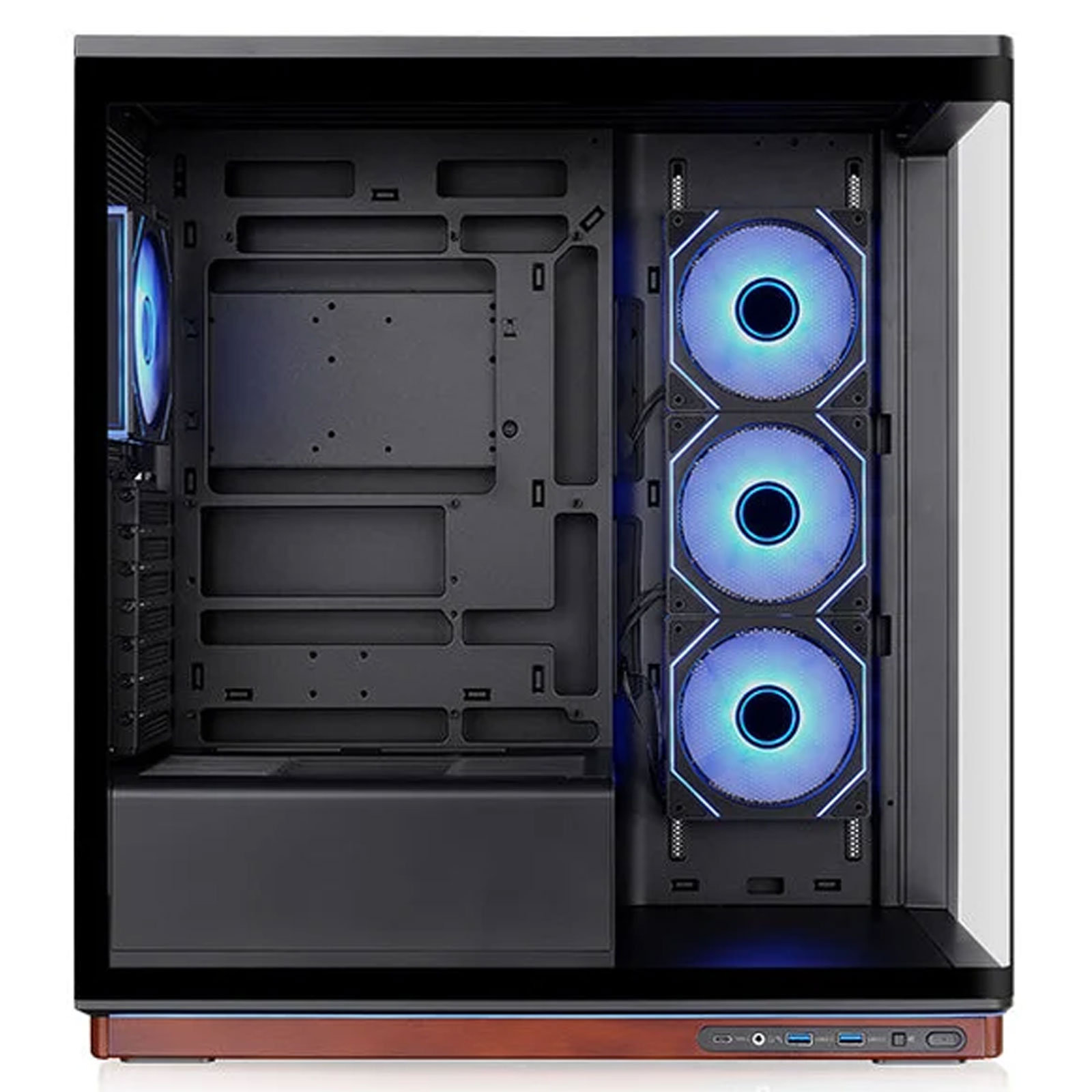

Thermaltake Stage 500 TG Mid Tower Gaming Case - Black
Main Features
Connection: Top I/O ports with 2 x USB 3.0 & 1 x USB 3.2 (Gen 2) Type C
Ventilation :
Right(intake): 120 x 120 x 25 mm Infinity ARGB Reverse PWM Fan (1500 rpm, 24.9 dBA) x 3
Rear(exhaust): 120 x 120 x 25 mm Infinity ARGB PWM Fan (1500 rpm, 21.8 dBA) x 1
Supports: Supports AIO cooling solutions
Specifications
Model
Stage 500 TG ARGB
P/N
CA-12A-00M1WN-00
Colour
Black
Case Type
Mid Tower
Chassis Dimensions (H*W*D)
535.6 x 239 x 484 mm
(21.09 x 9.41 x 19.06 inch)
Panel
4mm Tempered Glass x 1
Material
SPCC
Cooling Systems
Right(intake): 120 x 120 x 25 mm Infinity ARGB Reverse PWM Fan (1500 rpm, 24.9 dBA) x 3
Rear(exhaust): 120 x 120 x 25 mm Infinity ARGB PWM Fan (1500 rpm, 21.8 dBA) x 1
Drive Bays
1 x 3.5"+1 x 2.52 or 2 x 2.5"
Expansion Slots
7
Motherboards
6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX), 12" x 9.6" (ATX)
Hidden-Connector Motherboard
9.6"x 9.6" (Micro ATX), 12" x 9.6" (ATX)
I/O Port
USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
PSU
Standard PS2 PSU (optional)
Fan Support
Right: 3 x 120mm
Top: 3 x 120mm, 2 x 120mm, 1 x 120mm,
3 x 140mm, 2 x 140mm, 1 x 140mm,
Rear: 1 x 120mm , 1 x 140mm
Radiator Support
Top: 1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Rear: 1 x 120mm
Clearance
CPU cooler height limitation: 175mm
VGA length limitation: 450mm
PSU length limitation: 200mm
Warranty:
3 Year Return To Base Warranty
Return-to-Base warranty returns are processed within 14 business days of confirmed date of receipt - see our
Returns Policy for more information.
There are currently no data sheets available for this product.
