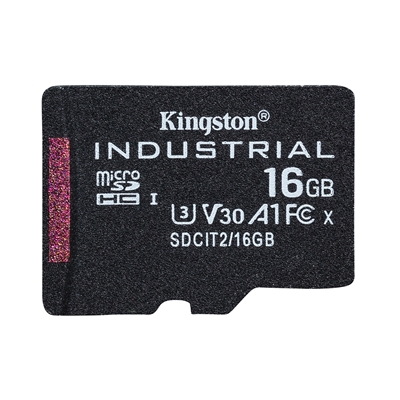

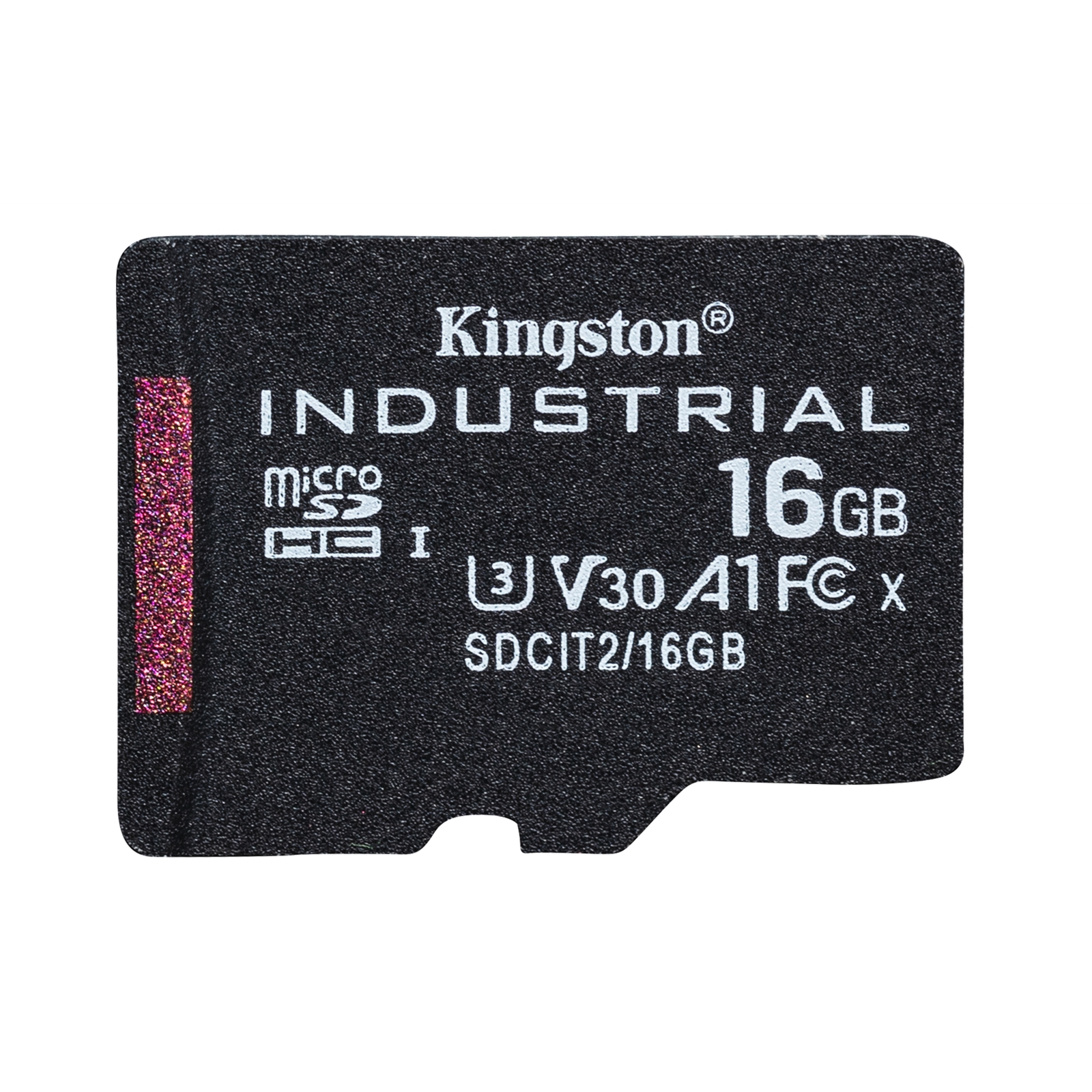

Kingston SDCIT2/16GB Industrial Micro SD Flash Memory Card, 16GB, Class U3 V30 A1, UHS-I U1, Retail Packed

Key Specifications
Capacity16GB
Class/SpeedUHS-I Speed Class 1 (U3)
Form FactorMicro
/productImages/80/SDKIN-SDCIT216GB.jpg
/productImages/80/176647.JPG
Manufacturer : KINGSTON
EAN : 740617321104
Manufacturer Part Code : SDCIT2/16GB
Weight : 0.05 kg
Login For Pricing

Key Specifications
Capacity16GB
Class/SpeedUHS-I Speed Class 1 (U3)
Form FactorMicro
Manufacturer :
KINGSTON

EAN :
740617321104

Manufacturer Part Code :
SDCIT2/16GB

Weight :
0.05 kg
Recommended Products
1331Adapters
See details
1304Card Readers
See details
1305USB Hubs
See details
1354Accessories & Controllers
See details

Kingston's Industrial microSD card is designed and tested to withstand the most demanding environmental factors. With an operating temperature of -40°C to 85°C, it can operate normally even in extreme desert heat and subzero conditions. The card utilises industry-leading pSLC mode to provide top transfer speeds of up to 100MB/s. It is rated up to 1920 TBW
with 30K P/E cycles and has a built-in feature set specific to endurance, performance and industrial needs. Kingston's Industrial microSD ships with a UHS-I SD adapter and is available in capacities from 8GB-64GB3.

Specifications

Capacities
8GB, 16GB, 32GB, 64GB

Performance
Class 10, UHS-I, U3, V30, A1

Endurance
Up to 1920 TBW
30K P/E cycles

NAND
TLC in pSLC mode

microSDHC card dimensions
11mm x 15mm x 1mm

SD adapter dimensions
24mm x 32mm x 2.1mm

Format
FAT32 for SDHC and ExFAT for SDXC

Operating & storage temperature
-40°C to 85°C

Voltage
3.3V

Industrial features
Bad block management
Strong ECC engine
Power failure protection
Wear levelling
Auto-refresh read distribution protection
Dynamic data refresh
SiP – System in Package
Garbage collection
Health monitoring

Thermal cycle testing
Interval testing completed at various extreme temperatures

Vigorous temperature humidity bias
Several hundred hours of testing to ensure durability at varying levels of humidity

Wide temp chamber testing
Completed on all SDCIT2 cards prior to production

Warranty
3 years
Manufacturer's Website:
Warranty:
1 Year Return to Base Warranty. All Kits must be sold and used as kits (cannot be split). Manufacturers Lifetime Warranty, 01932 738888

There are currently no data sheets available for this product.
