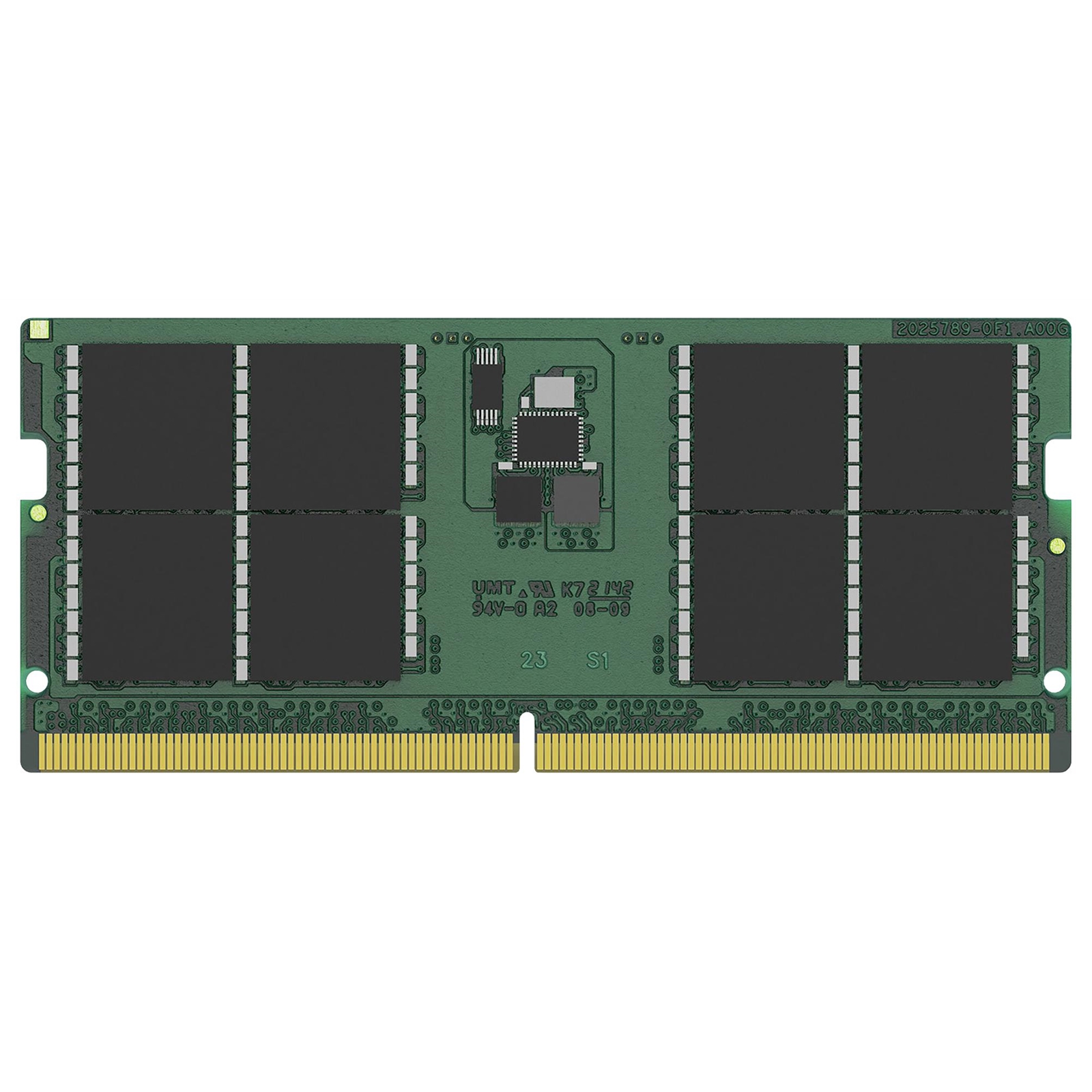

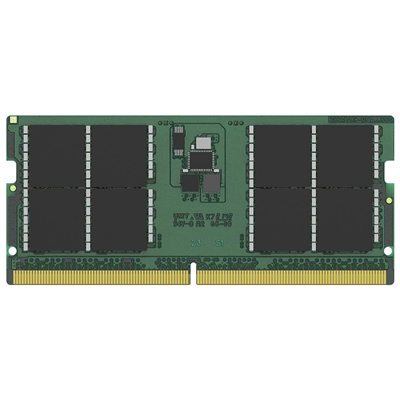

KVR56S46BS6-8 8GB, 1Rx16 1G x 64-Bit, PC5-5600 CL46 262-Pin SODIMM
Kingston ValueRAM's KVR56S46BS6-8 is a 1G x 64-bit (8GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 1Rx16, memory module, based on four 1G x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 262-pin SODIMM uses gold contact fingers.
Features
Power Supply: VDD = 1.1V Typical
VDDQ = 1.1V Typical
VPP = 1.8V Typical
VDDSPD = 1.8V to 2.0V
On-Die ECC
PCB: Height 1.18? (30.00mm)
RoHS Compliant and Halogen-Free
Specification
Product Type
Memory Module
Capacity
8 GB
Memory Type
DDR5 SDRAM - SO-DIMM 262-pin
Upgrade Type
Generic
Data Integrity Check
On-die ECC
Speed
5600 MHz (PC5-44800)
Latency Timings
CL46 (46-45-45)
Features
Single rank, unbuffered
Voltage
1.1 V
Lead Plating
Gold
Compliant Standards
RoHS, UL 94 V-0, halogen-free, JEDEC
Manufacturer Warranty
Limited Lifetime Warranty
