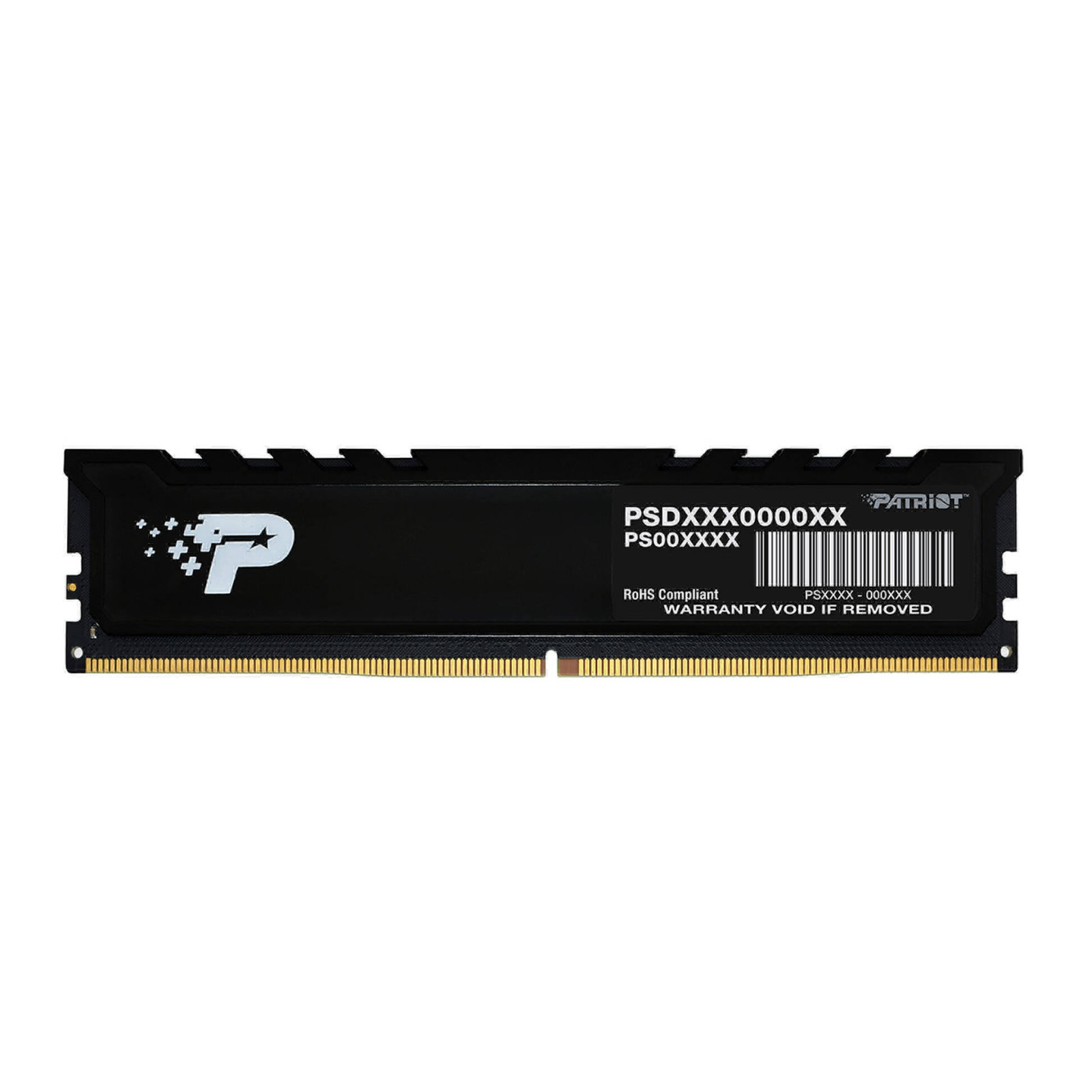

Patriot Signature Series DDR5 16GB(1 x 16GB) 5600MHz UDIMM Single

Patriot's Signature Line DDR5 memory modules are designed to deliver an immense performance improvement for next generation Intel platforms. Requiring only 1.1V of power, Signature DDR5 modules consume less power and emit less heat despite the increased frequency and speed. Enhanced power improvements include an onboard Power Management IC (PMIC), which provides better control of local voltage regulation while delivering increased threshold protection, simultaneous monitoring, intelligent voltage, and power management. The Signature Line DDR5 series includes onboard thermal sensors to monitor and protect
against thermal issues and better overall reporting. In addition, the latest on-die ECC (Error-Correcting Code) further enhances the accuracy of data-processing and your overall system's stability.

With limited lifetime warranty, Patriot's Signature Line DDR5 RAM is the breakthrough choice for avid system integrators and those looking to expand their system's memory performance. The Signature Line DDR5 memory modules offer a wide range of capacities and configurations, allowing users to get the most from the latest Intel platforms for the best compatibility.

Features
Series: Signature Line
• Form Factor: 288-Pin Unbuffered Dual In-Line Memory
Module (UDIMM)
Technology: DDR5 Non-ECC Unbuffered
Capacity: 16GB (1x 16GB)
Singled-sided Module
RoHS Compliant
Operating Temperature: 0°C - 85°C
100% Tested
Limited Lifetime Warranty

SPECIFICATIONS:

Frequency:
5600MHz

Timings:
46-46-46-90

VDD Voltage:
1.1v

On-Die
ECC

Colour
Black
