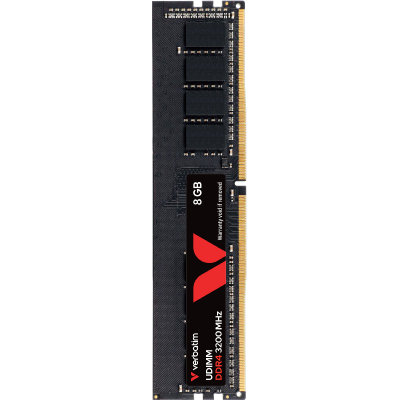

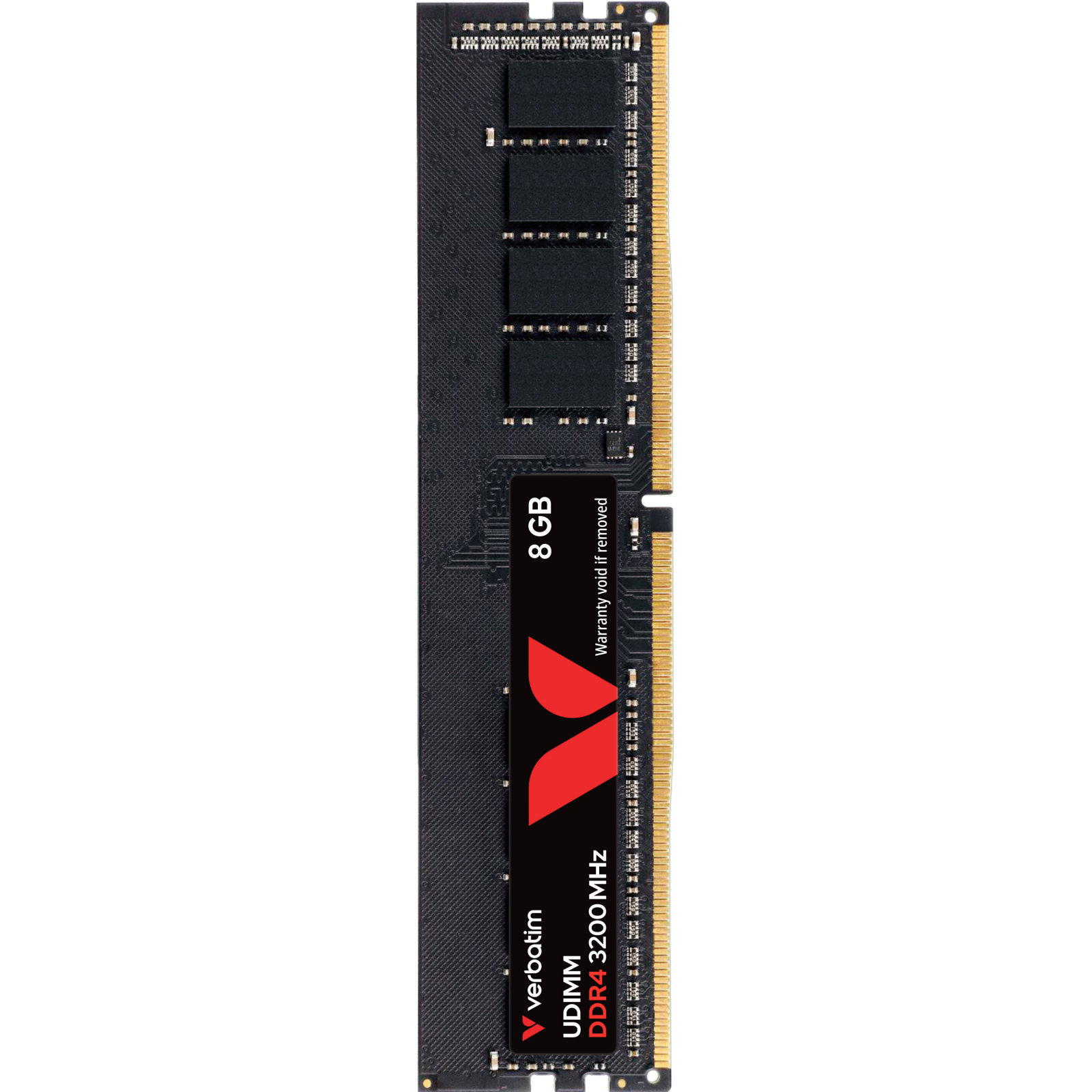

VERBATIM UDIMM DDR4-3200 1.2V 8GB
Part Number:
30122
DESCRIPTION
30122 — 8GB of DDR4-3200 memory in a UDIMM form factor
Built for desktop PCs that need reliable, JEDEC-compliant performance
Configured as 1Rx8 (8 x 1Gx8 FBGA components, 1G x 64-bit organization)
Runs at 22-22-22-52 timing on 1.2V
288-pin gold-plated edge connector for a stable, corrosion-resistant fit in the socket
FEATURES
DDR4-3200 high-speed performance
Low power consumption (1.2V)
On-board I2C serial presence-detect (SPD) EEPROM
Data Bus Inversion (DBI) and CRC support
Nominal and dynamic on-die termination (ODT)
Fly-by topology; terminated command/address bus
Gold-plated contacts for reliable connectivity
Designed for desktop PCs
RoHS Compliant and Halogen-Free
Warranty:
2 Year Return To Base Warranty
Return-to-Base warranty returns are processed within 14 business days of confirmed date of receipt - see our
Returns Policy for more information.
There are currently no data sheets available for this product.
