VERBATIM UDIMM DDR5-4800 1.1V 16GB
Part Number:
30138
DESCRIPTION

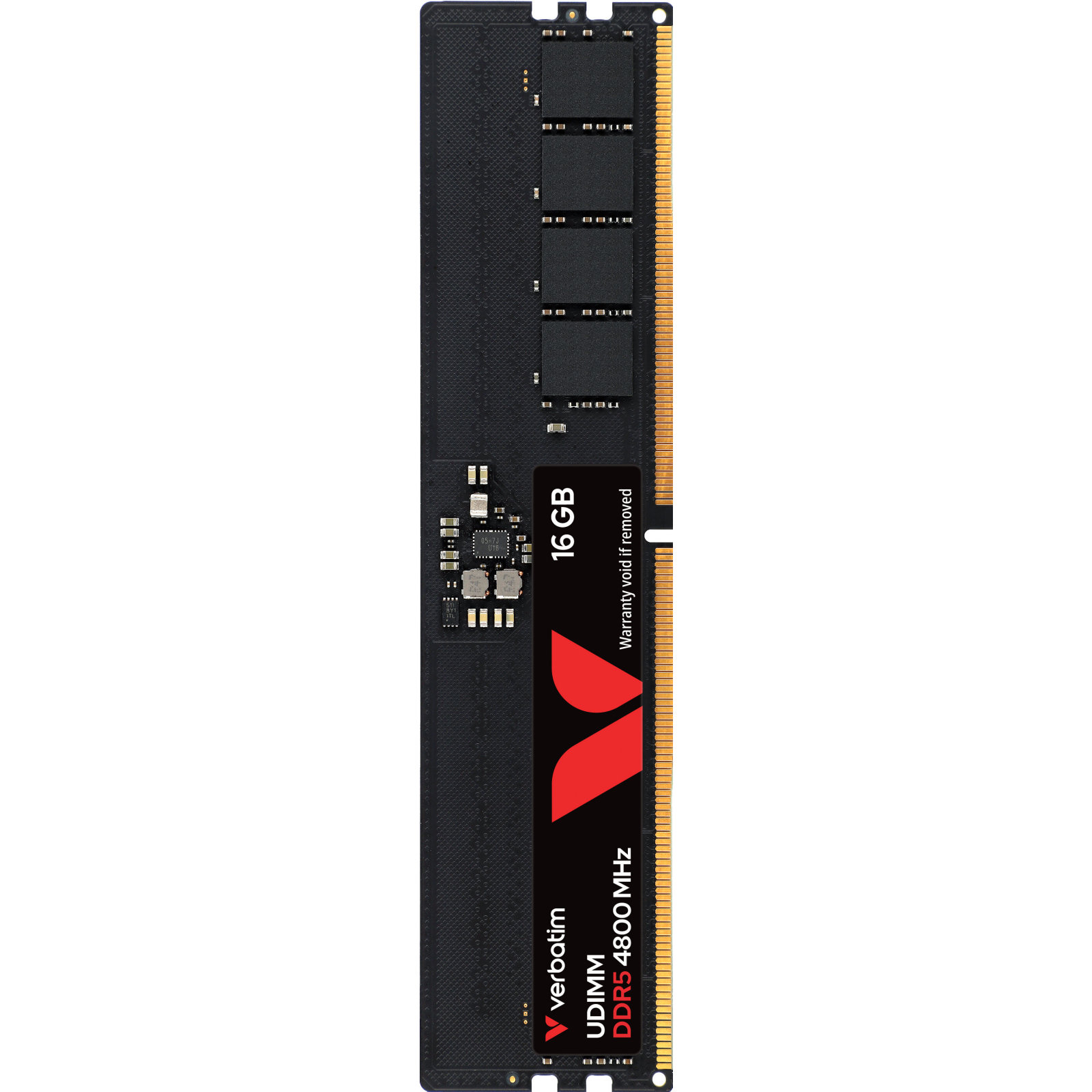

30138 — 16GB of DDR5-4800 memory in a UDIMM form factor
Built for desktop PCs that need reliable, JEDEC-compliant performance
Configured as 1Rx8 (8 x 2Gx8 FBGA components, 2G x 64-bit organization)
Runs at 40-40-40-77 timing on 1.1V
288-pin gold-plated edge connector for a stable, corrosion-resistant fit in the socket
FEATURES
DDR5-4800 high-speed performance
Low power consumption (1.1V)
On-board I2C serial presence-detect (SPD) EEPROM
Data Bus Inversion (DBI) and CRC support
Nominal and dynamic on-die termination (ODT)
Fly-by topology; terminated command/address bus
Gold-plated contacts for reliable connectivity
Designed for desktop PCs
RoHS Compliant and Halogen-Free
Warranty:
2 Year Return To Base Warranty
Return-to-Base warranty returns are processed within 14 business days of confirmed date of receipt - see our
Returns Policy for more information.
There are currently no data sheets available for this product.
