Target Components Ltd

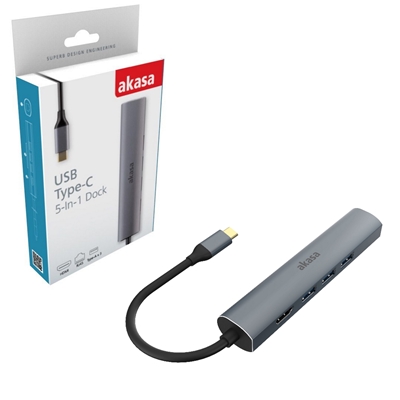

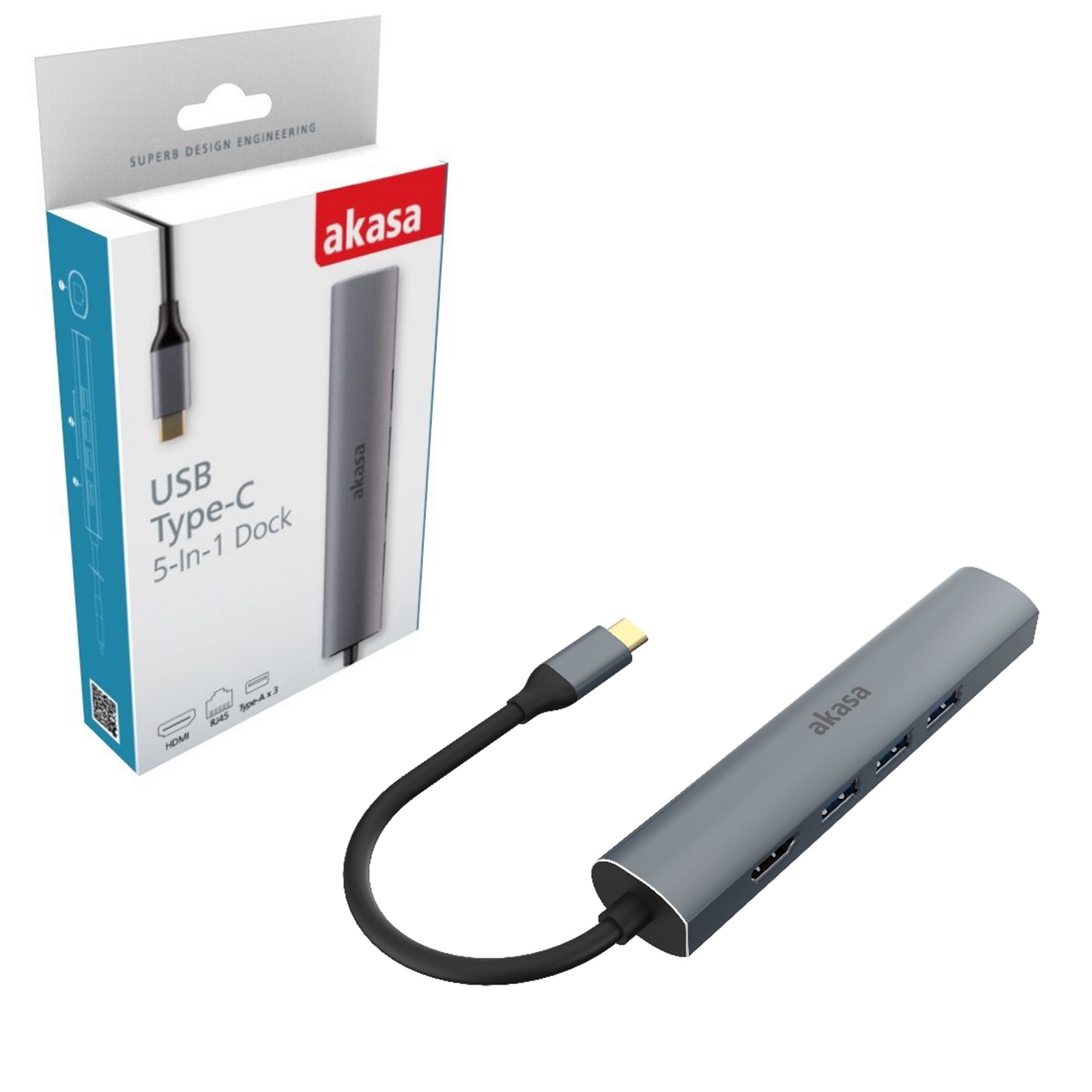

USB Type-C 5-In-1 Dock
Premium 4K video, Ethernet and USB dock. Features 4K HDMI, a RJ45 port (10/100/1000 Mbps) and 3 USB 3.0 ports.
- HDMI
- RJ45
- 3 x USB Type-A

Connect up to five devices at once Supports plug and play
- USB Type-C Upstream Port

Enjoy 4K@30Hz video and crystal clear audio

Included carrying pouch protects dock from dust and scratches

Compatible with the latest USB Type-C Mac and Windows computers

Application
USB Type-C 5-In-1 dock

Host Interface
USB Type-C (must support DisplayPort Alternate Mode)

Material
Aluminium alloy with anodised finish

Upstream Port
USB Type-C (male)

Downstream Ports
RJ45
HDMI
3 X USB Type-A

Max Data Transfer
5 Gbps (USB 3.1 Gen 1 / USB 3.0)
480 Mbps (USB 2.0)

Max Resolution
4K@30Hz

Ethernet Speed
10/100/1000 Mbps

OS Compatibility
MacOS
Windows XP/7/8/10
Chrome OS

Dimensions
125 x 25.5 x 17.6 mm

Cable Length
180mm

Product Code
AK-CBCA22-18BK

Manufacturer's Website:

www.akasa-europe.com

Warranty:

1 Year Return To Base Warranty

ENERGY MANAGEMENT
Power supply type	USB
FEATURES
Plug and Play	Y
Cable length	1.8 m
Product colour	Aluminium
Data transfer rate	5000 Mbit/s
Housing material	Aluminium
Maximum resolution (HDMI)	3840 x 2160 pixels
LOGISTICS DATA
Harmonized System (HS) code	84719000
NETWORKING
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
PACKAGING CONTENT
Manual	Y
PACKAGING DATA
Quantity per pack	1 pc(s)
PERFORMANCE
Harmonized System (HS) code	84719000
PORTS & INTERFACES
Ports quantity	5
Ethernet LAN (RJ-45) ports	1
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
HDMI ports quantity	1
Hub interfaces	HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A
Maximum resolution (HDMI)	3840 x 2160 pixels
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
SYSTEM REQUIREMENTS
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows XP
Mac operating systems supported	Y
Other operating systems supported	ChromeOS
WEIGHT & DIMENSIONS
Height	17.6 mm
Width	125 mm
Depth	25.5 mm
