- Provides 4 USB 2.0 HighSpeed ports
- Supports data transfer rates up to 480 Mbps
- Compatible with all USB Type A equipped computers
- USB bus-powered with DC socket for external power supply
- 2 year warranty

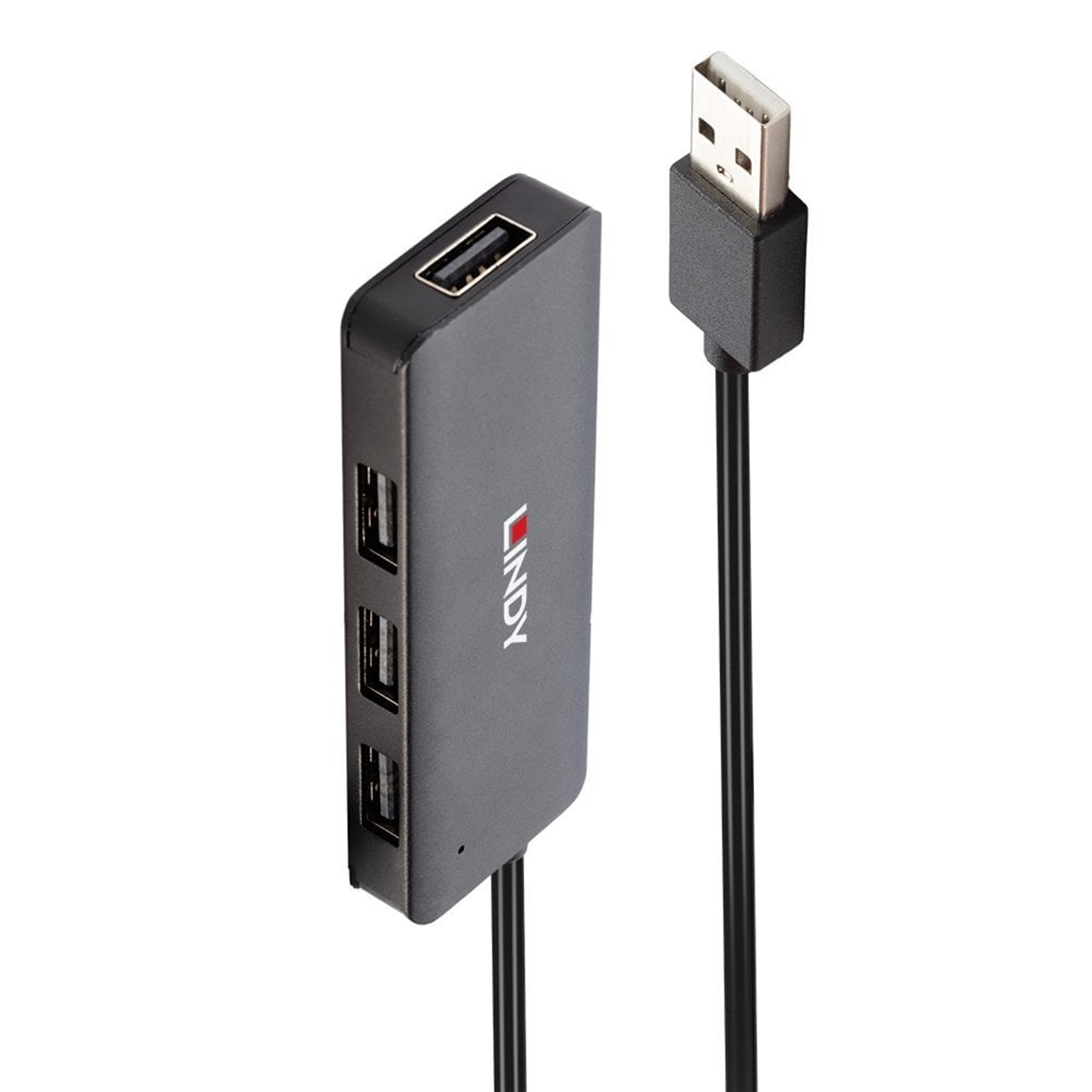

The Lindy 4 Port USB 2.0 Hub allows the user to connect 4 additional peripherals to a USB Type A equipped computer. Capable of data transfer speeds of up to 480Mbps, the hub is also backwards compatible with USB 1.1 and 1.0.
The hub is powered by the USB Bus, while a DC jack is available to connect an external power supply if multiple devices with high power requirements are connected.
With 'Plug and Play' installation, no drivers are required, therefore this hub can be installed with minimum difficulty, ideal for both professional and first time users.
Specifications
USB Standard: USB 2.0
Supported Bandwidth: 480Mbps
Chipset: FE 1.1s
Compatibility: USB Type A equipped computers
Power Delivery: -
Special Features: -
Connectors
Inputs: 1 x USB Type A (Male)
Outputs: 4 x USB Type A (Female)
Power: 3.5/1.35mm DC socket
Physical Properties
Dimensions WxDxH: 32x85x11mm (1.26x3.35x0.43in)
(Fixed) Cable Length: 800mm (31.5in)
Housing Material: Aluminium, plastic end caps
Net Weight: 0.062kg (0.14lb)
Operating Temperature: 0°C - 50°C (32°F -122°F)
Storage Temperature: -10°C - 65°C (14°F -149°F)
Humidity: 0 - 80% RH (non-condensing)
Power Requirements: 5VDC 2.5A
Colour: Black
Miscellaneous
Packaging Type: Polybag
Packaging Dimensions: 174x194mm (6.85x7.64in)
Gross Weight: 0.066kg (0.15lb)
Warranty (Years): 2
Certificated: CE, FCC, RoHS & REACH, CP65
Package Contents
4 Port USB 2.0 Hub
Warranty:
Manufacturers Warranty - For further details please visit the manufacturers website.
|
ENERGY MANAGEMENT
|
| Power supply type |
DC |
| Input voltage |
5 V |
| Input current |
2.5 A |
| Power plug type |
Type A |
FEATURES
|
| Certification |
CE, FCC, RoHS & REACH, CP65 |
| Cable length |
0.8 m |
| Cable type |
Round cable |
| Product colour |
Black |
| Data transfer rate |
480 Mbit/s |
| Housing material |
Plastic |
LOGISTICS DATA
|
| Harmonized System (HS) code |
84719000 |
OPERATIONAL CONDITIONS
|
| Operating relative humidity (H-H) |
0 - 80% |
| Storage temperature (T-T) |
-10 - 65 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Operating temperature (T-T) |
32 - 122 °F |
PACKAGING DATA
|
| Package type |
Polybag |
PERFORMANCE
|
| Harmonized System (HS) code |
84719000 |
PORTS & INTERFACES
|
| Ports quantity |
4 |
| USB 2.0 ports quantity |
4 |
| Host interface |
USB 2.0 |
| Hub interfaces |
USB 2.0 |
WEIGHT & DIMENSIONS
|
| Weight |
62 g |
| Height |
11 mm |
| Width |
32 mm |
| Depth |
85 mm |
