Target Components

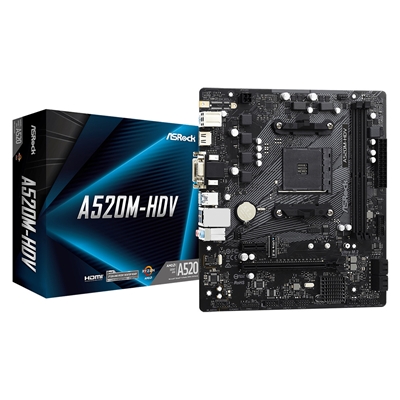

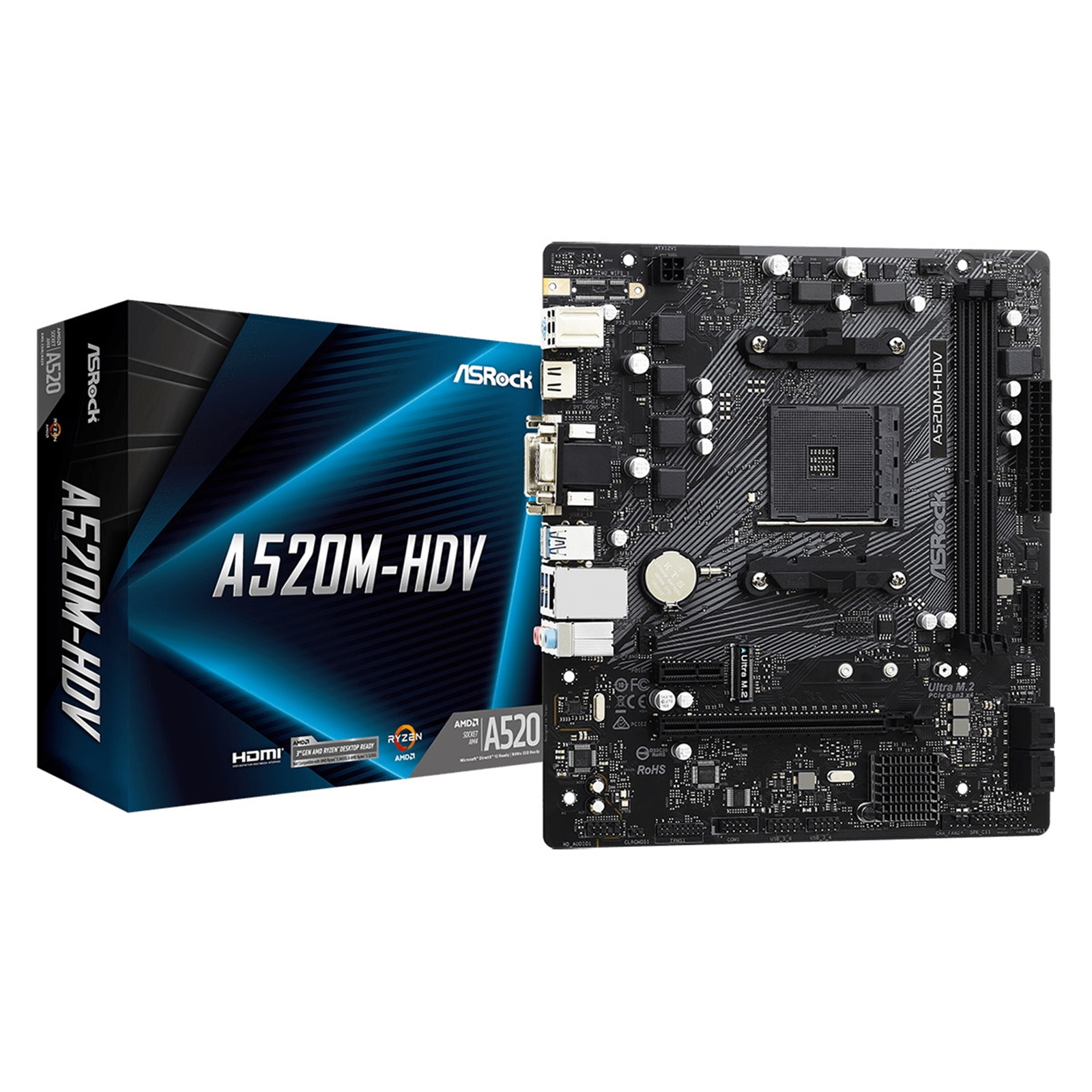

ASRock A520M-HDV Super Alloy AMD AM4 Socket Motherboard, Micro-ATX, 2x DDR4 Slots, 1x M.2 Socket, GbE LAN, 1x D-Sub / 1x DVI-D / 1x HDMI Port

Key Specifications
SocketAM4
CPU CompatibilityAMD Ryzen
ChipsetAMD A520
Form FactorMicro ATX
Memory SlotsDDR4 - 2 Slots
M.2 CompatibilityNVMe / SATA
USB CNo
/productImages/80/MBASR-A520MHDV.JPG
/productImages/80/148337.JPG
/productImages/80/148338.JPG
/productImages/80/148339.JPG
/productImages/80/148340.JPG
Manufacturer : ASROCK
EAN : 4710483932267
Manufacturer Part Code : A520M-HDV
Weight : 0.8 kg
Login For Pricing

Key Specifications
SocketAM4
CPU CompatibilityAMD Ryzen
ChipsetAMD A520
Form FactorMicro ATX
Memory SlotsDDR4 - 2 Slots
M.2 CompatibilityNVMe / SATA
USB CNo
Manufacturer :
ASROCK

EAN :
4710483932267

Manufacturer Part Code :
A520M-HDV

Weight :
0.8 kg
Recommended Products
1286Processors
See details
1295System Memory
See details
1292Solid State Drives
See details

WINDOWS 11 READY

Supports 3rd Gen AMD AM4 Ryzen / Future AMD Ryzen Processors(3000 and 4000 Series Processors)
Not compatible with AMD Ryzen 5 3400G and Ryzen 3 3200G.
6 Phase Power Design
Supports DDR4 4733+ (OC)
1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
Graphics Output Options: D-Sub, DVI-D, HDMI
7.1 CH HD Audio (Realtek ALC887 Audio Codec)
4 x SATA3, 1 x Ultra M.2(Gen3 x4 & SATA3)
6 x USB 3.2 Gen1(4 x Rear, 2 x Front)
6 x USB 2.0(2 x Rear, 4 x Front)
Realtek Gigabit LAN

Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.

HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.

3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.

Specifications

Unique Feature
ASRock Super Alloy
- Premium 50A Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop

CPU
Supports 3rd Gen AMD AM4 Ryzen / future AMD Ryzen Processors (3000 and 4000 Series Processors)
Not compatible with AMD Ryzen 5 3400G and Ryzen 3 3200G.
6 Power Phase design

Chipset
AMD A520

Memory
Dual Channel DDR4 Memory Technology
2 x DDR4 DIMM Slots
AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
Max. capacity of system memory: 64GB
Supports Extreme Memory Profile (XMP) memory modules
15µ Gold Contact in DIMM Slots

BIOS
128Mb AMI UEFI Legal BIOS with GUI support
Supports "Plug and Play"
ACPI 5.1 compliance wake up events
Supports jumperfree
SMBIOS 2.3 support
CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment

Graphics
Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU
DirectX 12, Pixel Shader 5.0
Shared memory default 2GB. Max Shared memory supports up to 16GB.
Three graphics output options: D-Sub, DVI-D and HDMI
Supports Triple Monitor
Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
Supports HDR (High Dynamic Range) with HDMI 2.1
Supports HDCP 2.3 with DVI-D and HDMI 2.1 Ports
Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port
Supports Microsoft PlayReady

Audio
7.1 CH HD Audio (Realtek ALC887 Audio Codec)
Supports Surge Protection

LAN
PCIE x1 Gigabit LAN 10/100/1000 Mb/s
Realtek RTL8111H
Supports Wake-On-LAN
Supports Lightning/ESD Protection
Supports Energy Efficient Ethernet 802.3az
Supports PXE

Slots
1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)
1 x PCI Express 3.0 x1 Slot

Storage
4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)

Connector
1 x SPI TPM Header
1 x COM Port Header
1 x Chassis Intrusion and Speaker Header
1 x CPU Fan Connector (4-pin)
2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
1 x 4 pin 12V Power Connector
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

Rear Panel I/O
1 x PS/2 Mouse/Keyboard Port
1 x D-Sub Port
1 x DVI-D Port
1 x HDMI Port
2 x USB 2.0 Ports (Supports ESD Protection)
4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock XFast LAN
UEFI
- ASRock Full HD UEFI
- ASRock Instant Flash

Support CD
Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

Accessories
Quick Installation Guide, Support CD, I/O Shield
2 x SATA Data Cable
1 x Screw for M.2 Socket

Hardware Monitor
Temperature Sensing: CPU, Chassis Fans
Fan Tachometer: CPU, Chassis Fans
Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis Fans
Fan Multi-Speed Control: CPU, Chassis Fans
CASE OPEN detection
Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

Form Factor
Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm
Solid Capacitor design

OS
Microsoft Windows 10 64-bit

Certifications
FCC, CE
ErP/EuP ready (ErP/EuP ready power supply is required)
Manufacturer's Website:
Warranty:
2 Year Return to Base Warranty.
BACK PANEL I/O PORTS
PS/2 ports quantity 1
USB 2.0 ports quantity 2
Ethernet LAN (RJ-45) ports 1
Microphone in Y
VGA (D-Sub) ports quantity 1
HDMI ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
BIOS
BIOS type UEFI AMI
EXPANSION SLOTS
PCI Express x1 (Gen 3.x) slots 1
PCI Express x16 (Gen 3.x) slots 1
FEATURES
Motherboard form factor micro ATX
Audio output channels 7.1 channels
Motherboard chipset family AMD
Component for PC
Audio chip Realtek ALC887
GRAPHICS
Graphics card Radeon Vega
Parallel processing technology support Not supported
Graphics card family AMD
INTERNAL I/O
USB 2.0 connectors 2
CPU fan connector Y
Number of COM connectors 1
ATX Power connector (24-pin) Y
Number of chassis fan connectors 2
Front panel audio connector Y
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
MEMORY
Maximum internal memory 64 GB
Non-ECC Y
Supported memory clock speeds 2133,2400,2666,2933,3200,3466,3600,3733,3800,3866,4000,4133,4200,4266,4333,4400,4466,4500,4533 MHz
Supported memory types DDR4-SDRAM
Memory channels Dual-channel
Unbuffered memory Y
Memory slots type DIMM
Number of memory slots 2
NETWORKING
Ethernet LAN Y
Wake-on-LAN ready Y
LAN controller Realtek RTL8111H
Wi-Fi N
Ethernet interface type Gigabit Ethernet
PROCESSOR
Processor manufacturer AMD
Maximum number of SMP processors 1
Compatible processor series 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9
Processor socket Socket AM4
STORAGE CONTROLLERS
Supported storage drive interfaces M.2,SATA III
WEIGHT & DIMENSIONS
Width 230 mm
Depth 201 mm
Socket TypeFamilyPart NumberCoreClock SpeedCachePowerRev.L3 CacheBios
AM4Ryzen 95950X(100-000000059)Vermeer3.4GHz8MB105WB264MBP1.10
AM4Ryzen 95900(100-000000062)Vermeer3.0GHz6MB65WB264MBP1.10
AM4Ryzen 95900X(100-000000061)Vermeer3.7GHz6MB105WB264MBP1.10
AM4Ryzen 95950X (100-000000059-00)Vermeer3.4GHz8MB105WB064MBP1.10
AM4Ryzen 95900X (100-000000061-00)Vermeer3.7GHz6MB105WB064MBP1.10
AM4Ryzen 75800X3D(100-000000651)Vermeer3.4GHz4MB105W96MBP2.10
AM4Ryzen 75800X(100-000000063)Vermeer3.8GHz4MB105WB232MBP1.10
AM4Ryzen 75800X (100-000000063-00)Vermeer3.8GHz4MB105WB032MBP1.10
AM4Ryzen 75800(100-000000456)Vermeer3.4GHz4MB65WB232MBP1.10
AM4Ryzen 75700X(100-000000926)Vermeer3.4GHz4MB65W32MBP2.10
AM4Ryzen 55600X(100-000000065)Vermeer3.7GHz3MB65WB232MBP1.10
AM4Ryzen 55600X (100-000000065-00)Vermeer3.7GHz3MB65WB032MBP1.10
AM4Ryzen 55600(100-000000927)Vermeer3.5GHz3MB65W32MBP2.10
AM4Ryzen 55600X3D(100-000001176)Vermeer3MBP3.00
AM4Ryzen 7PRO 4750G(100-000000145)Renoir3.6GHz4MB65WA18MBAll
AM4Ryzen 7PRO 4750GE(100-000000152)Renoir3.1GHz35WA1All
AM4Ryzen 74700G(100-000000146)Renoir3.6GHz4MB65WA18MBAll
AM4Ryzen 74700GE(100-000000149)Renoir3.1GHz35WA1All
AM4Ryzen 5PRO 4650G(100-000000143)Renoir3.7GHz3MB65WA18MBAll
AM4Ryzen 5PRO 4650GE(100-000000153)Renoir3.3GHz35WA1All
AM4Ryzen 54600G(100-000000147)Renoir3.7GHz3MB65WA18MBAll
AM4Ryzen 54600GE(100-000000150)Renoir3.3GHz35WA1All
AM4Ryzen 54500(100-000000644)Renoir4.1GHz3MB45-65W8MBP2.10
AM4Ryzen 5Pro 4655G(100-000001155)Renoir3.7GHz3MB65W8MBP2.30
AM4Ryzen 5Pro 4655GE(100-000001156)Renoir3.3GHz3MB35W8MBP2.30
AM4Ryzen 3PRO 4350G(100-000000148)Renoir3.8GHz2MB65WA14MBAll
AM4Ryzen 3PRO 4350GE(100-000000154)Renoir3.5GHz35WA1All
AM4Ryzen 34300G(100-000000144)Renoir3.8GHz2MB65WA14MBAll
AM4Ryzen 34300GE(100-000000151)Renoir3.5GHz35WA1All
AM4Ryzen 34100(100-000000510)Renoir4GHz2MB65W4MBP2.10
AM4Ryzen 3Pro 4355GE(100-000001061)Renoir3.5GHz2MB35W4MBP2.30
AM4Ryzen 3Pro 4355G(100-000001079)Renoir3.8GHz2MB65W4MBP2.30
AM4Athlon3000G (YD3000C6M2OFH)Picasso3.5GHz1MB35WB14MBP3.40
AM4Ryzen 93900XT(100-000000277)Matisse 24.1GHz105W64MBAll
AM4Ryzen 73800XT(100-000000279)Matisse 24.2GHz105W32MBAll
AM4Ryzen 53600XT(100-000000281)Matisse 24.0GHz95W32MBAll
AM4Ryzen 93950X (100-000000051)Matisse3.5GHz8MB105WB064MBAll
AM4Ryzen 9PRO 3900 (100-000000072)Matisse3.1GHz6MB65WB064MBAll
AM4Ryzen 93900X (100-000000023)Matisse3.8GHz6MB105WB064MBAll
AM4Ryzen 93900 (100-000000070)Matisse3.1GHz6MB65WB064MBAll
AM4Ryzen 73800X (100-000000025)Matisse3.9GHz4MB105WB032MBAll
AM4Ryzen 7PRO 3700 (100-000000073)Matisse3.6GHz4MB65WB032MBAll
AM4Ryzen 73700X (100-000000071)Matisse3.6GHz4MB65WB032MBAll
AM4Ryzen 5PRO 3600 (100-000000029)Matisse3.6GHz3MB65WB032MBAll
AM4Ryzen 53600X (100-000000022)Matisse3.8GHz3MB95WB032MBAll
AM4Ryzen 53600 (100-000000031)Matisse3.6GHz3MB65WB032MBAll
AM4Ryzen 53500X (100-000000158)Matisse3.6GHz3MB65WB032MBAll
AM4Ryzen 53500 (100-000000050)Matisse3.6GHz3MB65WB016MBAll
AM4Ryzen 33300X (100-000000159)Matisse3.8GHz2MB65WB016MBAll
AM4Ryzen 33100 (100-000000284)Matisse3.6GHz2MB65WB016MBAll
AM4Ryzen 7PRO 5750GE(100-000000257-00)CezanneP1.60
AM4Ryzen 7PRO 5750G(100-000000254-00)CezanneP1.60
AM4Ryzen 75700G(100-000000263-00)Cezanne3.8GHz4MB45~65W16MBP1.60
AM4Ryzen 75700GE(100-000000260-00)Cezanne3.2GHz4MB35W16MBP1.60
AM4Ryzen 75700(100-000000743)Cezanne3.8GHz4MB65W16MBP2.10
AM4Ryzen 5PRO 5650GE(100-000000258-00)CezanneP1.60
AM4Ryzen 5PRO 5650G(100-000000255-00)CezanneP1.60
AM4Ryzen 55600G(100-000000252-00)Cezanne3.9GHz3MB45~65W16MBP1.60
AM4Ryzen 55600GE(100-000000261-00)Cezanne3.4GHz3MB35W16MBP1.60
AM4Ryzen 55500(100-000000457)Cezanne3.6GHz3MB65W16MBP2.10
AM4Ryzen 3PRO 5350GE(100-000000259-00)CezanneP1.60
AM4Ryzen 35300GE(100-000000262-00)Cezanne3.6GHz2MB35W8MBP1.60
AM4Ryzen 3PRO 5350G(100-000000256-00)CezanneP1.60
AM4Ryzen 35300G(100-000000253-00)Cezanne4.0GHz2MB45~65W8MBP1.60
AM4Ryzen 55600GT(100-000001488)Cezanne3.6GHz3MB45-65W16MBP3.30
AM4Ryzen 55500GT(100-000001489)Cezanne3.6GHz3MB45-65W16MBP3.30
AM4Ryzen 75700X3D(100-000001503)Vermeer-X3.0GHz4MB96MBP3.30
AM4Ryzen 95900XT(100-000001581)Vermeer3.3GHz8MB105W64MBP3.50
AM4Ryzen 75800XT(100-000001582)Vermeer3.8GHz4MB105W32MBP3.50
The information on this page has been provided direct by the manufacturers.


Contact Information

Target Components Ltd
Unit 5
Pioneer Way
Pioneer Ind Est
Castleford
WF10 5QU

Tel:01977 739 300
sales@targetcomponents.co.uk
careers@targetcomponents.co.uk


Visa Mastercard Secured By Comodo


Registered in England | Company Registration No. 3113281 | VAT Registration No. GB660103090
