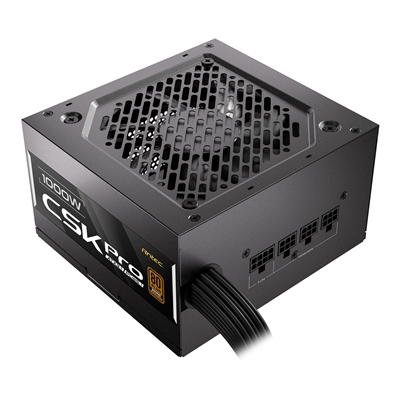

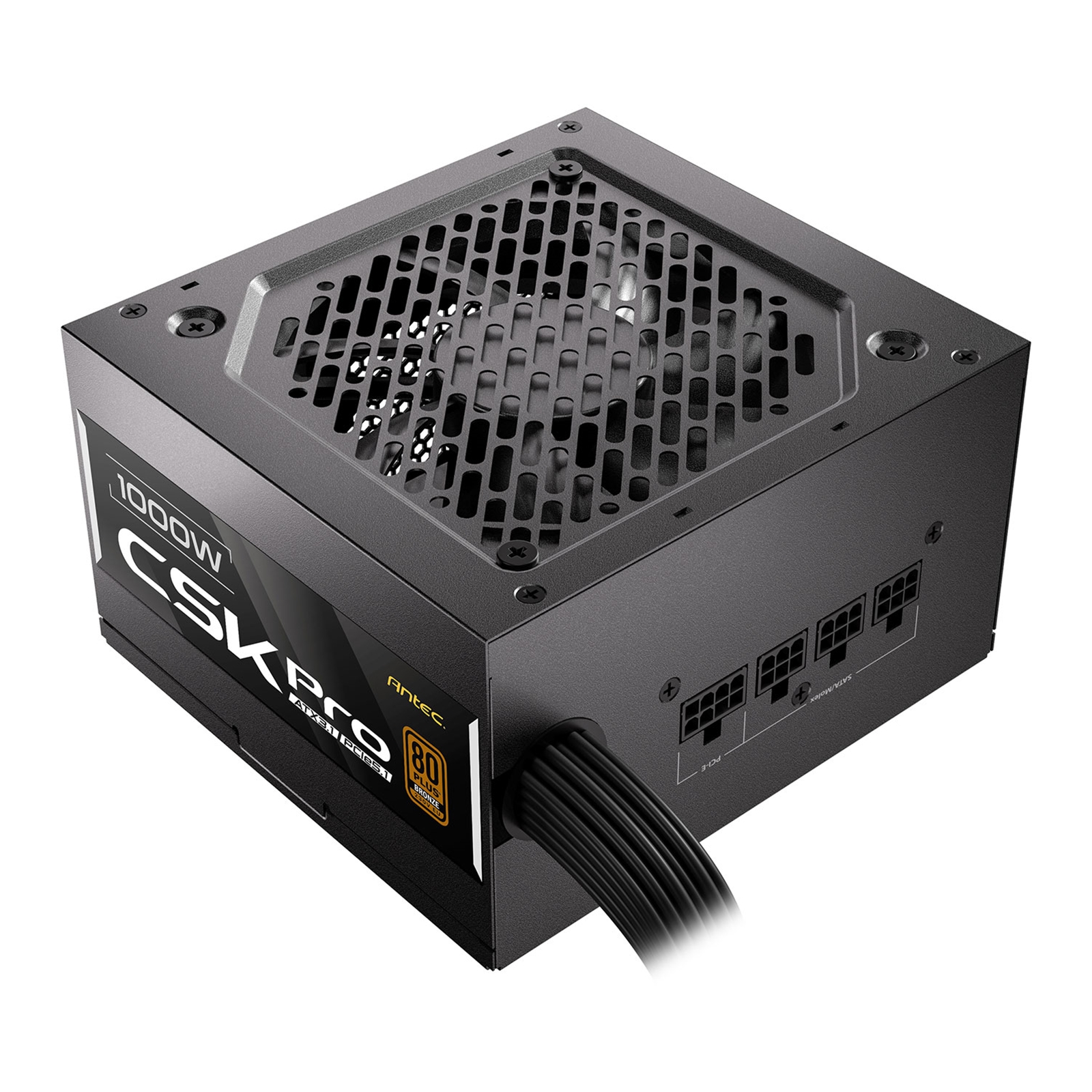

Antec CSK1000 PRO 1000W ATX 3.1 Power Supply ? 80 PLUS Bronze, Semi-Modular, PCIe 5.1 Ready, 12V-2x6 Connector, Quiet 120mm Fan, UK Plug

Key Specifications
Wattage1000W
Size/VersionATX 3.1
ModularSemi
SATA Connections6
CertificationBronze
ColourBlack
/productImages/80/PSANT-CSK1000PRO.JPG
/productImages/80/209981.JPG
/productImages/80/209982.JPG
/productImages/80/209983.JPG
Manufacturer : ANTEC
EAN : 761345200738
Manufacturer Part Code : 0-761345-20075-2
Weight : 2.6 kg
Login For Pricing

Key Specifications
Wattage1000W
Size/VersionATX 3.1
ModularSemi
SATA Connections6
CertificationBronze
ColourBlack
Manufacturer :
ANTEC

EAN :
761345200738

Manufacturer Part Code :
0-761345-20075-2

Weight :
2.6 kg
Recommended Products
1284Power Supplies
See details
1333Power Cables
See details
1349Mains Power & Extensions
See details

The Antec CSK1000 PRO is a high-performance 1000?W continuous-output power supply unit (PSU), fully compliant with ATX?3.1 and supporting PCIe?5.1 standards. Designed for modern systems, it delivers up to 90% efficiency under typical loads (80?PLUS Bronze certified), and features a semi-modular cable design for improved airflow and simplified cable management.

Key Features
Compliant with ATX 3.1 and PCIe 5.1, including a dedicated 12V-2×6 GPU connector capable of delivering up to 600?W.

1000?W continuous power output with a powerful single +12?V rail delivering up to 83.3?A.

Up to 90% efficiency under typical loads, meeting 80?PLUS Bronze (230V EU) standards.

CircuitShield™ protection suite with protections including OCP, OVP, UVP, OPP, OTP, SCP, SIP, and NLO.

Equipped with a 120?mm silent fan featuring intelligent thermal management for optimal balance of cooling and quiet operation.

Semi-modular design for cleaner builds—essential cables are fixed, while others are detachable.

Compact form factor measuring 140?×?150?×?86?mm; net weight approximately 2.02?kg.

Backed by a 5-year warranty.

Technical Specifications
Electrical Performance
Parameter Specification
Max Output 1000?W Continuous
+12?V Rail 83.3?A
Input Voltage 200–240?V AC
Input Current Up to 6?A
Frequency Range 50–60?Hz
Power Factor Correction Active PFC
Power Good Signal 100–150?ms
Operating Temperature 0–40?°C
Efficiency Up to 90%

Cooling & Acoustics
120?mm silent fan

Intelligent speed control for optimized noise and temperature levels

Protection Features (CircuitShield™)
Over Voltage Protection (OVP)
Over Current Protection (OCP)
Under Voltage Protection (UVP)
Over Power Protection (OPP)
Over Temperature Protection (OTP)
Short Circuit Protection (SCP)
Surge & Inrush Protection (SIP)
No Load Operation Protection (NLO)

Connectors
1 × 24-pin main motherboard connector
2 × 8-pin EPS (4+4) for CPU
4 × 8-pin PCIe (6+2) for GPUs
1 × 16-pin PCIe 5.1 (12V-2×6)
6 × SATA power connectors
3 × Molex peripheral connectors

Physical Dimensions & Weight
PSU Size: 140?×?150?×?86?mm
Box Size: 296.5?×?203?×?130?mm
Net Weight: ~2.02?kg
Gross Weight: ~2.55?kg

Certifications
80 PLUS Bronze (230?V EU)

Safety approvals:
TUV, CB, CE, RCM, BIS, KC, UKCA

In the Box
Antec CSK1000 PRO PSU
Power cable
Modular cables
Mounting screws
User manual
