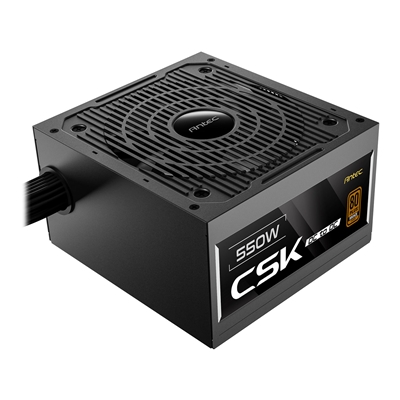

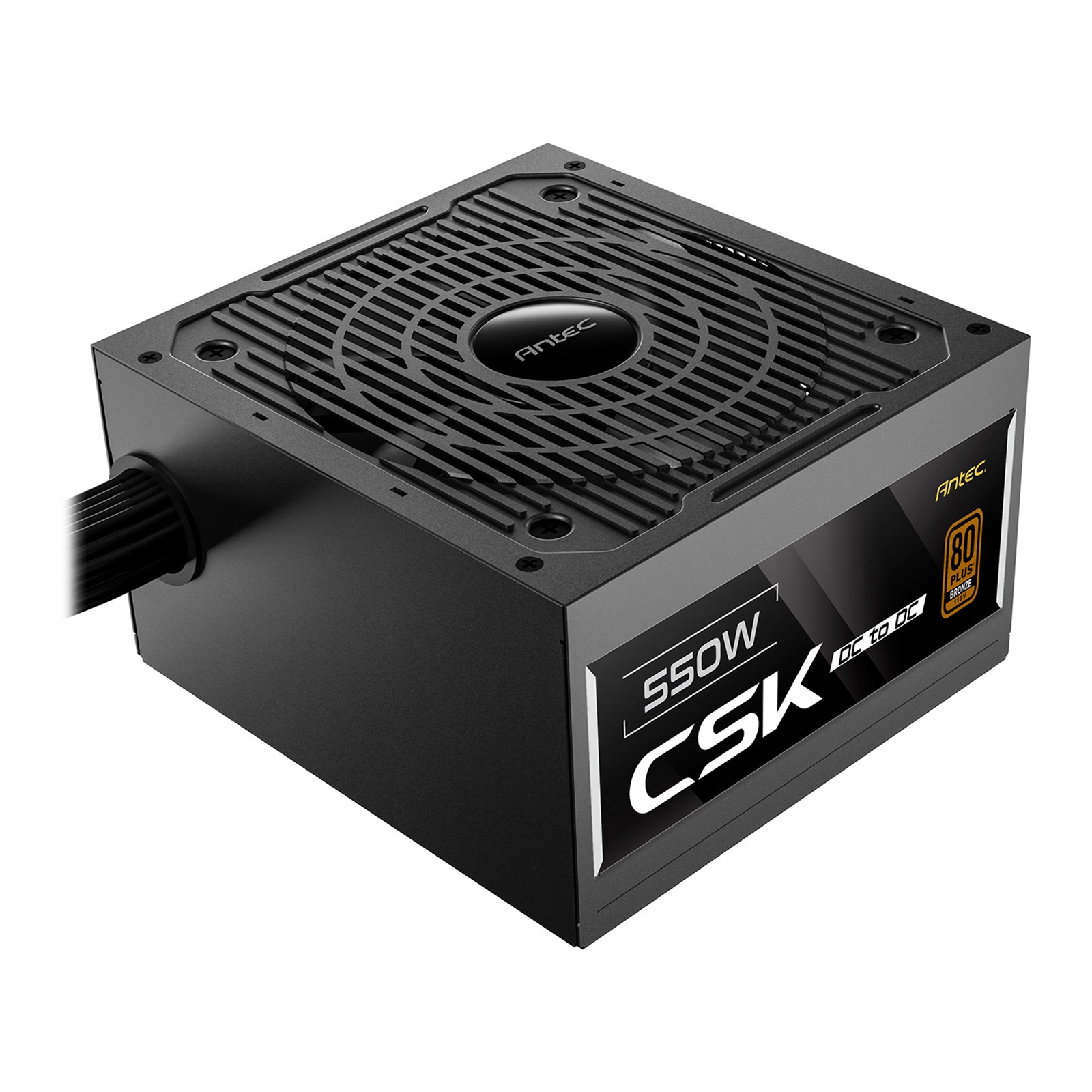

Antec CSK550DC 550W Power Supply, 80 Plus Bronze Certified, ATX 12V 2.52, Non-Modular, DC-to-DC, Flat Black Cables, 120mm Quiet Fan, UK Plug

Key Specifications
Wattage550W
Size/VersionATX
ModularNo
SATA Connections6
CertificationBronze
ColourBlack
/productImages/80/PSANT-CSK550DC.JPG
/productImages/80/209969.JPG
/productImages/80/209970.JPG
/productImages/80/209971.JPG
Manufacturer : ANTEC
EAN : 0761345201032
Manufacturer Part Code : 0-761345-20103-2
Weight : 1.9 kg
Login For Pricing

Key Specifications
Wattage550W
Size/VersionATX
ModularNo
SATA Connections6
CertificationBronze
ColourBlack
Manufacturer :
ANTEC

EAN :
0761345201032

Manufacturer Part Code :
0-761345-20103-2

Weight :
1.9 kg
Recommended Products
1284Power Supplies
See details
1333Power Cables
See details
1349Mains Power & Extensions
See details

The Antec CSK550DC is a high-quality, cost-effective power supply unit designed for mainstream and gaming PC builds.

It delivers a continuous 550 W output with high efficiency (up to 88%), meeting the 80 Plus Bronze certification. Its DC-to-DC architecture, combined with active Power Factor Correction (PFC), ensures stable and reliable power delivery. The unit is protected by Antec's CircuitShield system, which includes multiple safety mechanisms such as Over Current Protection (OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Short Circuit Protection (SCP), Over Power Protection (OPP), Over Temperature Protection (OTP), Surge & Inrush Protection (SIP), and No Load Operation (NLO).

The power supply features a 120 mm quiet fan with smart temperature control for efficient cooling with minimal noise. Though non-modular, it includes flat black cables, offering improved airflow and easier routing. It also includes reinforced PCI-E 5.1 connectors, making it compatible with modern GPUs. The compact design (140 x 150 x 86 mm) allows for easy installation in a wide range of ATX-compatible cases. Antec provides a 5-year warranty for added peace of mind.

Full Specifications

Model:
CSK550DC

MPN:
0-761345-20103-2

Form Factor:
ATX 12V 2.52

Output Capacity:
550 W Continuous

+12V Rail:
Single Rail, 45.8 A

Efficiency:
Up to 88%, 80 Plus Bronze Certified

Architecture:
DC-to-DC

Power Factor Correction:
Active PFC

Input Voltage:
100–240 V AC

Input Frequency:
50–60 Hz

Input Current:
Maximum 12 A

Power Good Signal:
100–500 ms

Protections:
OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO (CircuitShield)

Cooling:
120 mm Temperature-Controlled Fan

Operating Temperature:
0 °C to 40 °C

Dimensions:
140 x 150 x 86 mm

Net Weight:
1.60 kg

Gross Weight:
1.90 kg

Connectors:
1x 24-pin ATX Main
2x 8-pin (4+4) EPS
2x 8-pin (6+2) PCIe
6x SATA
3x Molex

Cable Type:
Non-modular, Flat Black Cables

Certifications:
cTUVus, TUV, CB, RCM, CE, FCC, BSMI, KC, UKCA, ICES, BIS

Warranty:
5 Years Manufacturer Warranty
Manufacturer's Website:
Warranty:
5 Years Return To Base Warranty
