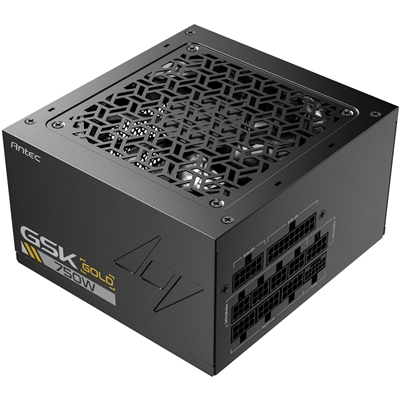

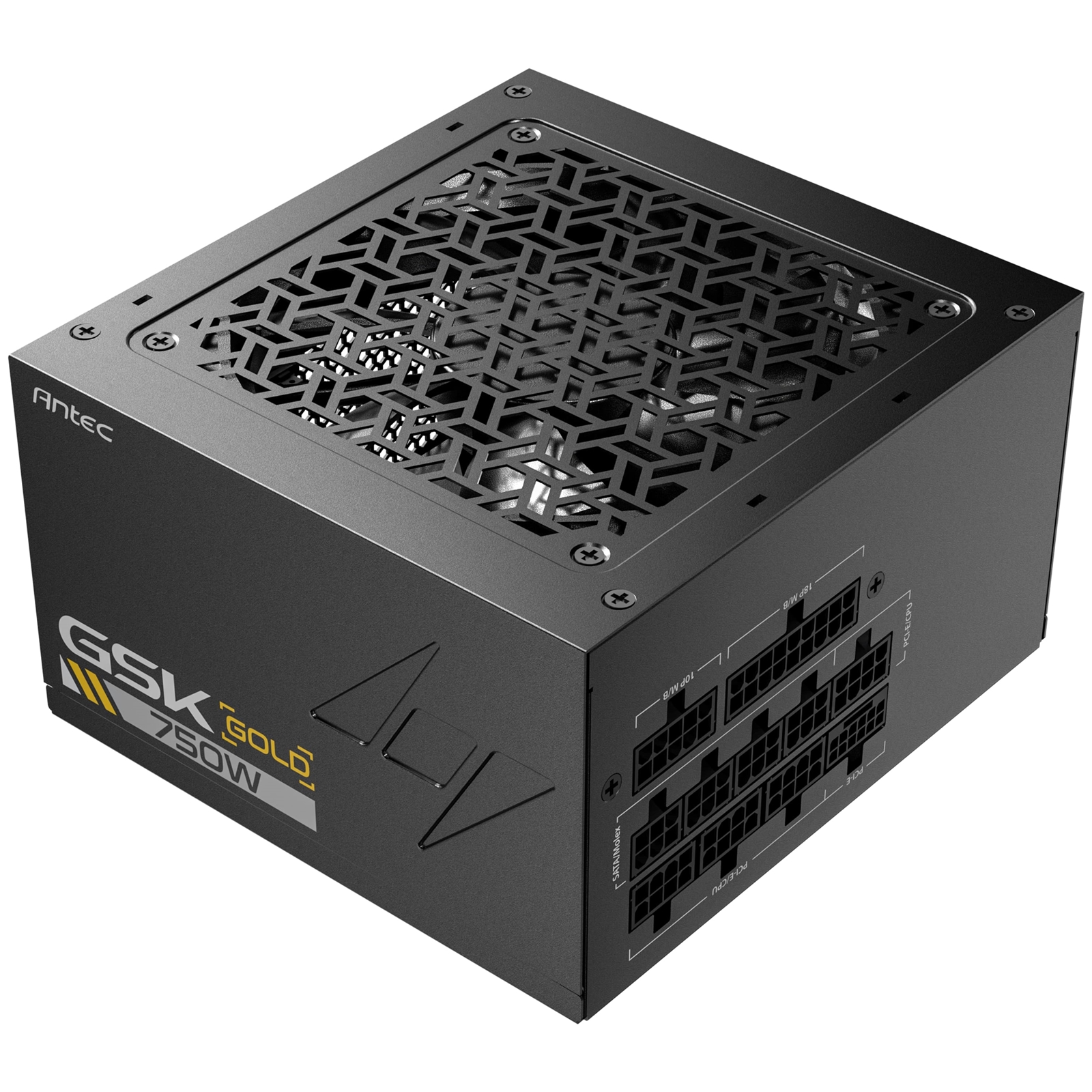

The Antec GSK 750 V2 is a 750 W desktop power supply unit designed for gaming and high-performance PC builds. It belongs to Antec's ?GSK V2? line, supporting ATX 3.1 and PCIe 5.1 standards, making it compatible with next-gen hardware.

It features full modular cabling for better cable management, helping to reduce clutter and improve airflow. It includes a 120 mm silent fan (with ?Zero RPM? mode) for quieter operation during lower loads, and employs Antec's ?PhaseWave TM? design (a server-class LLC design with synchronous rectification) for efficient, stable power delivery.

On the safety side, it carries Antec's ?CircuitShield™? protection suite, which typically includes OCP (over current protection), OVP (over voltage protection), UVP (under voltage protection), SCP (short circuit protection), OPP (over power protection), OTP (over temperature protection), SIP (surge & inrush protection), and NLO (no-load operation protection).

As the ?V2? variant for Great Britain / EU, the unit carries the MPN 0-761345-20140-7.

Specifications
Product
Antec GSK 750 V2
MPN / Model Code
0-761345-20140-7 (GB / UK version)

Form Factor / Standard
ATX 12V 3.1

Wattage (Continuous)
750 W

Modularity
Fully modular

Efficiency / Certification
80 PLUS® Gold certified

Input Voltage Range
100 V – 240 V AC (universal)

Input Frequency
50 – 60 Hz (typical for worldwide)

Input Current
Up to 10 A (max)

Fan
120 mm ?Silent? fan with Zero RPM mode (i.e. fan may shut off at low load)

Protection / Safety Features
CircuitShield™ suite: OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO

Connectors
1 � 24 (20 + 4) pin motherboard connector
1 � 16 (12 + 4) pin PCIe 5.1 12V-2�6 connector
2 � 8 (4 + 4) pin CPU (EPS) connectors
4 � 8 (6 + 2) pin PCI-Express connectors
8 � SATA power connectors
4 � Molex (4-pin peripheral) connectors

Dimensions (L � W � H)
140 mm � 150 mm � 86 mm

Warranty10 years

Additional Features
PhaseWave™ design for stable output
Zero RPM mode for quiet operation
Full modular cabling for customization & airflow
Meets modern GPU / CPU power demands with support for PCIe 5.1

Manufacturer's Website:

www.antec.com

Warranty:

7 Year Return To Base Warranty

Return-to-Base warranty returns are processed within 14 business days of confirmed date of receipt - see our Returns Policy for more information.

CERTIFICATES

Certification cTUVus / TUV / CB / RCM / CE / FCC / BSMI / KC / UKCA / ICES

DESIGN

Product colour Black

Number of fans 1 fan(s)

On/off switch Yes

Cooling type Active

Fan diameter 12 cm

Fan location Top

ENERGY MANAGEMENT

Input current 10 A

Power protection features No load operation, Over current, Over power, Over voltage, Short circuit, Surge & inrush protection (SIP), Under voltage

Power Factor Correction (PFC) type Active

Combined power (+3.3V) 100 W

Combined power (+12V) 750 W

Combined power (+5V) 100 W

Combined power (-12V) 3.6 W

Combined power (+5Vsb) 15 W

Max output current (+3.3V) 20 A

Max output current (+12V) 62.5 A

Max output current (+5V) 20 A

Max output current (-12V) 0.3 A

Max output current (+5Vsb) 3 A

AC input frequency 50/60 Hz

AC input voltage 100 - 240 V

Total power 750 W

OPERATIONAL CONDITIONS

Operating temperature (T-T) 0 - 40 °C

PACKAGING DATA

Package weight 2.62 kg

Package depth 296 mm

Package height 130 mm

Package width 203 mm

Package type Box

PERFORMANCE

Certification cTUVus / TUV / CB / RCM / CE / FCC / BSMI / KC / UKCA / ICES

Purpose PC

ATX version 3.1

80 PLUS certification 80 PLUS Gold

Silent mode Yes

Power supply unit (PSU) form factor ATX

PORTS & INTERFACES

Motherboard power connector 20+4 pin ATX

Number of SATA power connectors 8

Peripheral (Molex) power connectors (4-pin) 4

ATX power connector (20+4 pin) Yes

CPU power connector (4+4 pin) Yes

PCI Express power connectors (6+2 pin) 4

Cabling type Fully-Modular

Motherboard power cable length 60 cm

SATA power cable length 450,300,900 mm

Peripheral (Molex) power cable length 450,300,900 mm

PCI Express power connectors (12+4 pin) 1

PCI Express power connectors (12+4 pin) cable length 600 mm

WEIGHT & DIMENSIONS

Weight 2.4 kg

Height 86 mm

Width 150 mm

Depth 140 mm
