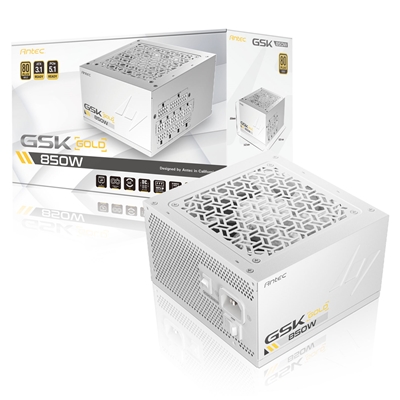

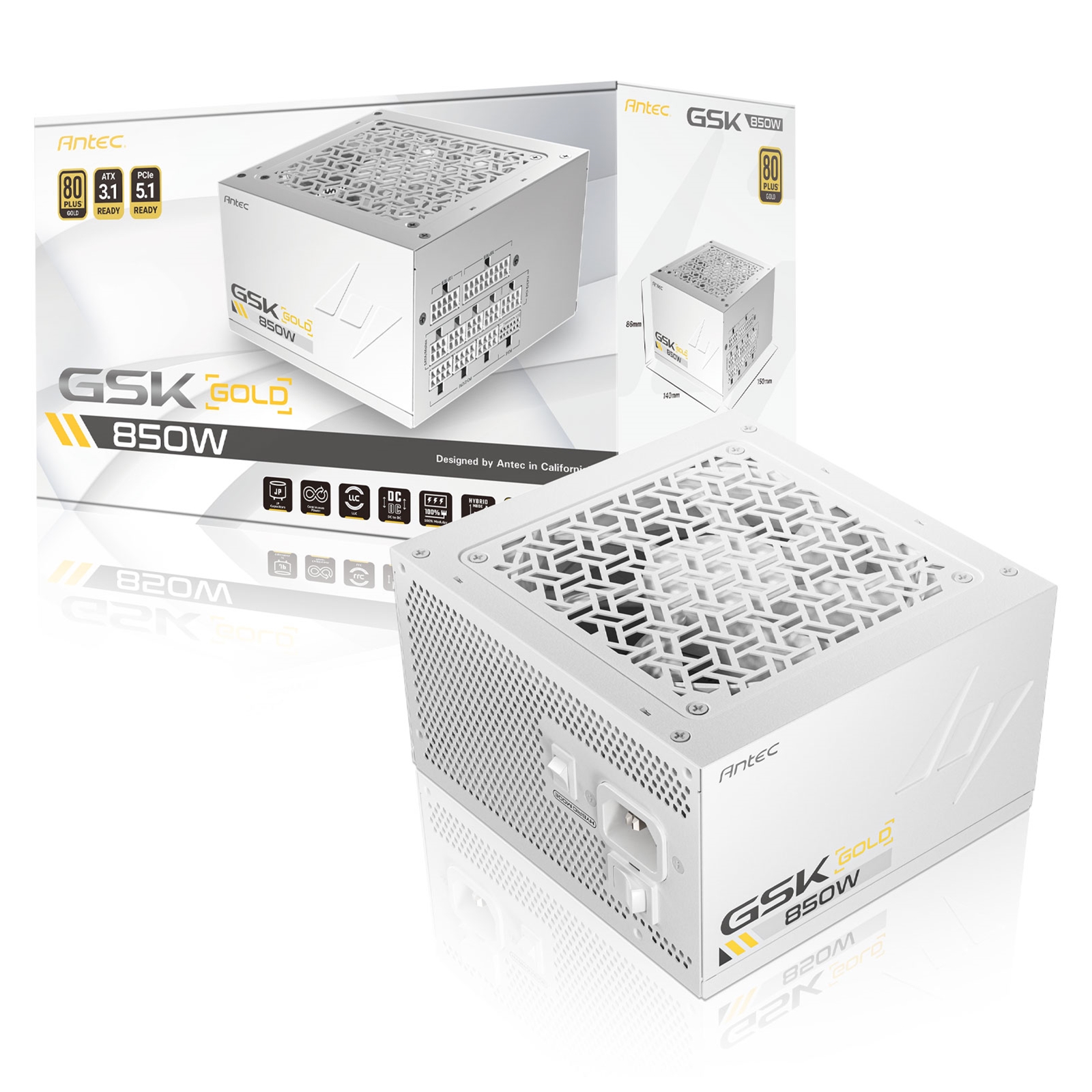

Antec GSK ATX3.1 850W Power Supply - White

The Antec GSK ATX3.1 850W Power Supply - White is designed to deliver exceptional performance and stability for gaming and enthusiast systems. With advanced features like ATX 3.1 compliance, PCIe 5.1 compatibility, and high-quality JP capacitors, this power supply ensures reliable and efficient power delivery. The 80 PLUS Gold certification guarantees high energy efficiency, reducing energy consumption and lowering electricity bills.

Highlight Features:

ATX 3.1 & PCIe 5.1 Compatible: Certified for ATX 3.1 compliance and includes a PCIe 5.1 12V-2x6 GPU cable for compatibility with the latest graphics cards, such as the NVIDIA GeForce RTX 40 Series.
High-Quality JP Capacitors: Ensures tight voltage regulation and minimal ripple and noise for maximum system performance.
PhaseWave™ Design: Server-class LLC design with synchronous rectification based on a DC-DC topology for unparalleled power delivery efficiency and stability.
CircuitShield™ Protection: Includes OCP, OVP, UVP, SCP, OPP, OTP, SIP, and NLO protections for safe and reliable power delivery.
120mm FDB Silent Fan: Fluid-dynamic bearing fan provides high airflow with quiet operation and long-lasting durability.
Zero RPM Manager: Advanced thermal control that activates the fan only when necessary, ensuring optimal cooling and silent operation.
Full Modular Cable Management: Allows for easy cable management and customisation, reducing clutter and improving airflow.
Compact Size: Smaller than many power supplies on the market, making it compatible with a wider range of computer cases.
7-Year Warranty: Backed by a 7-year warranty for peace of mind.

Specifications:

Model:
GSK ATX3.1 850W 80 PLUS Gold - White

Type:
ATX 12V 3.1

Dimensions:
140 (L) x 150 (W) x 86 (H) mm

Modular:
Full-Modular

Warranty:
7 years

Input Voltage:
100V-240V

Input Current:
10A Max

Input Frequency Range:
50Hz-60Hz

PFC:
Active PFC

Power Good Signal:
100-150ms

Protection:
OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO

Output Capacity:
850W

Operation Temperature:
0~40°C

Regulatory:
cTUVus / TUV / CB / RCM / CE / FCC / BSMI / KC / UKCA / ICES

Fan:
120mm Silent Fan

Certifications:
80 PLUS Gold

Connections:
1 x 24 (20+4) pin MB
1 x 16 (12+4) pin PCIe 5.1 12VHPWR
2 x 8 (4+4) pin CPU
4 x 8 (6+2) pin PCI-E
8 x SATA
4 x Molex

Box Dimensions:
296 (L) x 203 (W) x 130 (H) mm

Net Weight:
2.62 kg

Gross Weight:
2.84 kg
