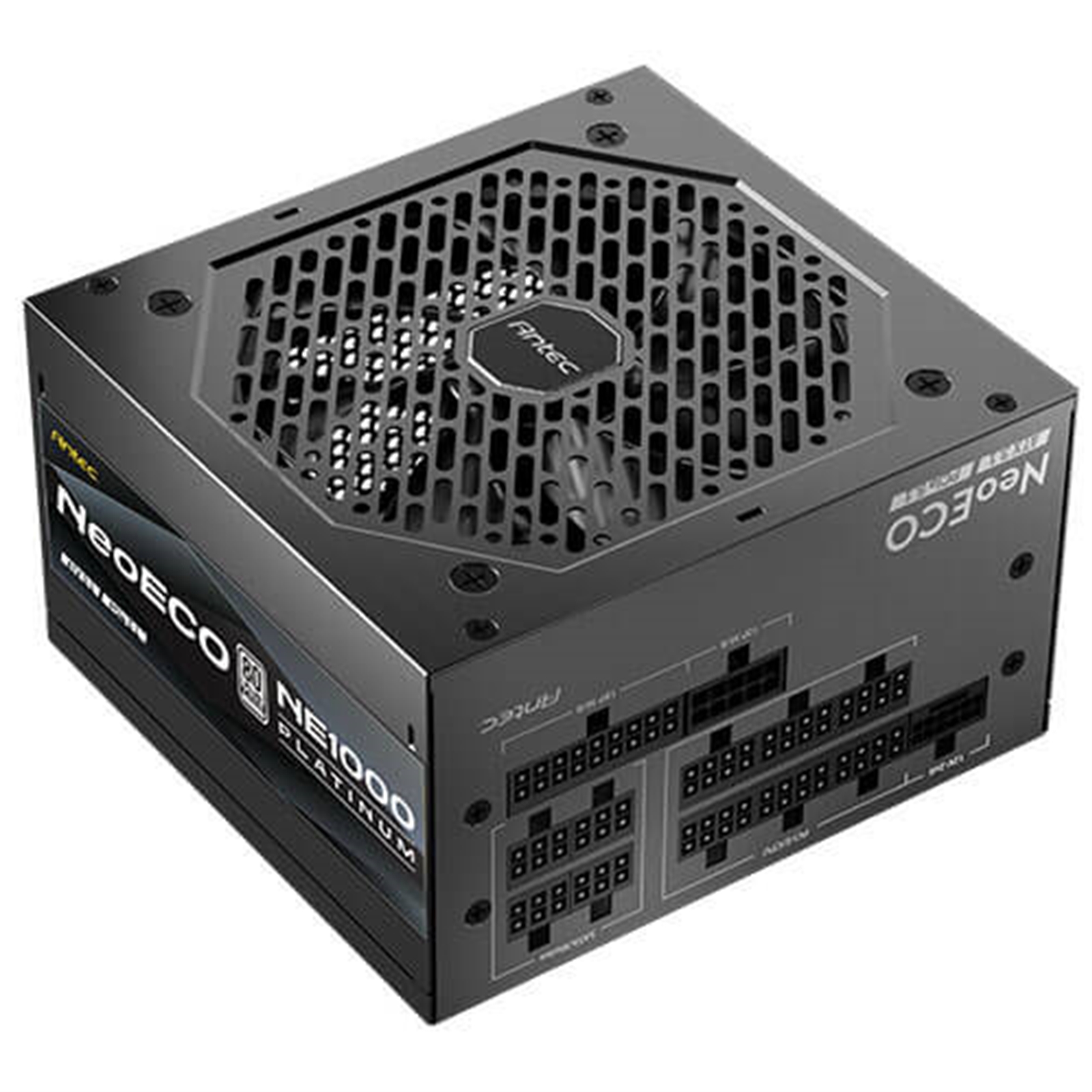

Antec NE1000 NeoECO Platinum ATX3.1 power supply
Introducing the NeoECO Platinum ATX3.1 power supply, crafted to deliver exceptional performance and rock-solid stability for gamers and enthusiasts. Featuring next-generation ATX 3.1 and PCIe 5.1 support, high-quality Japanese capacitors, and 80 PLUS Platinum efficiency, it ensures outstanding and consistent power delivery. The PhaseWave design provides smooth, reliable output, while the 120 mm FDB silent fan delivers efficient, quiet cooling. Its fully modular design allows for easy cable management, and the Zero RPM Manager intelligently controls fan operation, activating it only when needed to balance silent performance with optimal cooling. Backed by the CircuitShield suite of industrial-grade protections, the NeoECO Platinum ATX3.1 is a powerful, efficient, and dependable choice for modern PC builds.
ATX 3.1 & PCIe 5.1 Compatible
Our new NeoECO Platinum ATX3.1 power supplies are formally certified for ATX 3.1 compliance, meeting the high standards for reliability and power efficiency, and ensuring the utmost level of quality and performance.
The included PCIe 5.1 12V-2x6 GPU cable enables seamless compatibility with the latest graphics cards.
High-Quality JP Capacitors
Equipped with high-quality Japanese capacitors, our power supplies achieve unprecedented tight voltage regulation and minimal ripple and noise, maximizing your system's performance.
PhaseWave TM Design
Introducing our PhaseWave Design, a server-class LLC design featuring synchronous rectification based on a DC-DC topology. This design ensures unparalleled power delivery efficiency and stability for your system.
10-Year Warranty
The new PSU line from Antec pushes the standard for excellence with the circuit shield suite of industrial protections and is backed by a 10-year warranty.
Zero RPM Manager
With the Zero RPM fan mode, our PSU ensures a longer lifespan and quieter operation. The thermal sensors activate the fan only when necessary, providing optimal cooling while minimizing noise levels.
120mm FDB Silent Fan
The whisper-quiet, 120mm fluid-dynamic bearing (FDB) fan provides high airflow with the durability and longevity that is a signature of Antec quality.
Full Modular Cable Management
Allows users to use only the necessary cables and eliminates excess cables that can obstruct and reduce airflow for improved cooling performance.
Compact Size
Compared to typical power supplies on the market, it is smaller in size and can be used with a wider range of computer cases.
Specifications
Model
NE1000 PLATINUM ATX3.1
Safe Model
X8000A587EU-25
Type
ATX 12V 3.1
Dimension
140(L) * 150(W) * 86(H)
Modular
Full-Modular
Warranty
10 years
Input Voltage
100V-240V
Input Current
12A-6A
Input Frequency Range
50Hz-60Hz
PFC
Active PFC
Power Good Signal
100-150ms
Protection
OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO
Output Capacity
1000W
Operation Temperature
0~40°C
Regulatory
cTUVus / TUV / CB / RCM / CE / FCC /
BSMI / 3C / UKCA / ICES
Fan
120mm FDB Silent Fan
Certifications
80 Plus Platinum
Connector
1 x 24(20+4)pin MB
1 x 16(12+4)pin PCIE 5.1 12V-2x6
2 x 8(4+4)pin CPU
3 x 8(6+2) Pin PCI-E
9 x SATA
3 x Molex
Warranty:
10 Year Return To Base
Return-to-Base warranty returns are processed within 14 business days of confirmed date of receipt - see our
Returns Policy for more information.
|
CERTIFICATES
|
| Certification |
TUV, 3C |
| Waste Electrical and Electronic Equipment (WEEE) compliance |
Yes |
| Compliance certificates |
cTUVus, CB, RCM, CE, Federal Communications Commission (FCC), BSMI, UKCA, ICES, KCC, EAC |
DESIGN
|
| Product colour |
Black |
| Illumination |
No |
| Number of fans |
1 fan(s) |
| On/off switch |
Yes |
| Cooling type |
Active |
| Fan diameter |
12 cm |
ENERGY MANAGEMENT
|
| Input current |
12 - 6 A |
| Power protection features |
Over current, Over voltage, Under voltage, Short circuit, Over power, Overheating, Surge & inrush protection (SIP), No load operation |
| Power Factor Correction (PFC) type |
Active |
| Combined power (+3.3V) |
120 W |
| Combined power (+12V) |
996 W |
| Combined power (+5V) |
120 W |
| Combined power (-12V) |
3.6 W |
| Combined power (+5Vsb) |
15 W |
| Max output current (+3.3V) |
20 A |
| Max output current (+12V) |
83 A |
| Max output current (+5V) |
20 A |
| Max output current (-12V) |
0.3 A |
| Max output current (+5Vsb) |
3 A |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Total power |
1000 W |
| Power Good signal delay range |
100 - 150 ms |
LOGISTICS DATA
|
| Warranty period |
10 year(s) |
OPERATIONAL CONDITIONS
|
| Operating temperature (T-T) |
0 - 40 °C |
OTHER FEATURES
|
| Power plug type |
Type G |
PACKAGING DATA
|
| Package type |
Box |
PERFORMANCE
|
| Certification |
TUV, 3C |
| Purpose |
PC |
| Bearing technology |
FDB |
| ATX version |
3.1 |
| 80 PLUS certification |
80 PLUS Platinum |
| Power supply unit (PSU) form factor |
ATX |
| Capacitor country of origin |
Japan |
PORTS & INTERFACES
|
| Motherboard power connector |
20+4 pin ATX |
| Number of SATA power connectors |
9 |
| Peripheral (Molex) power connectors (4-pin) |
3 |
| CPU power connector (4+4 pin) |
Yes |
| PCI Express power connectors (6+2 pin) |
3 |
| Cabling type |
Fully-Modular |
| Motherboard power cable length |
60 cm |
| SATA power cable length |
450,570,690,810 mm |
| Peripheral (Molex) power cable length |
450,570,690,810 mm |
| PCI Express power connectors (12+4 pin) |
1 |
| PCI Express power connectors (12+4 pin) cable length |
650 mm |
| Number of SATA power cables |
3 |
TECHNICAL DETAILS
|
| Warranty period |
10 year(s) |
| Compliance certificates |
cTUVus, CB, RCM, CE, Federal Communications Commission (FCC), BSMI, UKCA, ICES, KCC, EAC |
WEIGHT & DIMENSIONS
|
| Height |
86 mm |
| Width |
150 mm |
| Depth |
140 mm |
