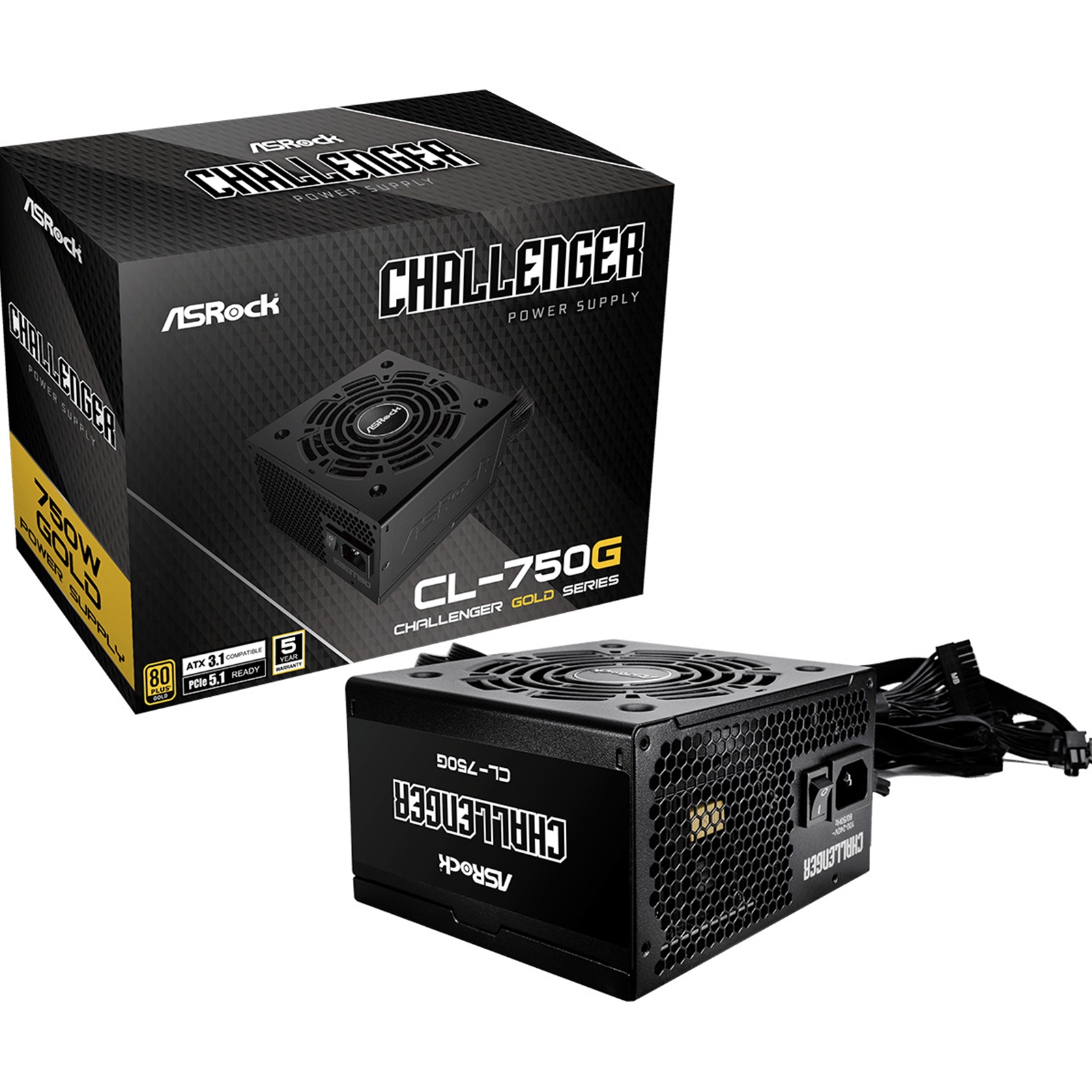

ASRock Challenger CL-750G Power Supply Unit

Features
80 PLUS GOLD Certified
ATX3.1 & PCIe5.1 Ready
Native 12V-2x6 Connector Dual Color Design
120mm Golf-blade Fan
Auto iCool Intelligent Fan Control
Built-in 5V BOOST function
Reliable 5-Year Warranty

Native PCIe 12V-2x6 Cable Dual Color Design
With ASRock Classic Green connectors, users can easily see if the connector has been plugged properly.

80 PLUS CERTIFIED
The Challenger series is crafted for value-conscious users, offering 80 PLUS Gold models in 850W, 750W, and 650W options, as well as 80 PLUS Bronze models in 750W, 650W, and 550W.

Safety First with ASRock
Full suite of protections to keep all components safe during normal to extreme power levels.
ASRock offers an outstanding 5 –Year warranty, guaranteeing long term reliable and peace of mind operation.

Specifications

80 Plus Efficiency
GOLD

ATX 12V Version
ATX 3.1

AC Input
100-240V~, 50-60Hz, 10-5A

Continuous 12V output
62.5A

Warranty (Years)
5

Dimensions(L x W x H)
140mm x 150mm x 86mm

Fan
120mm Golf-Blade Fan

iCOOL MODE
Yes (Auto)

Protections
OCP, SCP, OVP, UVP, OTP, OPP

Capacitors
All Taiwanese

5V BOOST
Yes (Built-in)

PCIe 5.1 Cable TempGuard
No

Total Power Excursion
200%

MTBF (Hours)@25C
100,000

Cable Type
24pin: Sleeved
Others: Flat

Motherboard cable (24pin)
1

EPS 12V CPU connectors (4+4pin)
2

PCIe5.1 connectors(12+4pin) Dual Color
1

PCIe connectors (6+2pin)
2

4-pin Peripheral connectors
2

SATA 5-pin connectors
4

Manufacturer's Website:

www.asrock.com.tw

Warranty:

5 Years Return To Base Warranty

Return-to-Base warranty returns are processed within 14 business days of confirmed date of receipt - see our Returns Policy for more information.

CERTIFICATES
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS, CB, EAC
DESIGN
Product colour	Black
Illumination	No
Number of fans	1 fan(s)
On/off switch	Yes
Cooling type	Active
Fan diameter	12 cm
Fan location	Top
ENERGY MANAGEMENT
Input current	10 - 5 A
Power protection features	Over current, Short circuit, Over voltage, Under voltage, Overheating, Over power
Combined power (+3.3V)	120 W
Combined power (+12V)	750 W
Combined power (+5V)	120 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	20 A
Max output current (+12V)	62.5 A
Max output current (+5V)	20 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
AC input frequency	50/60 Hz
AC input voltage	100 - 240 V
Total power	750 W
Power excursion	200%
PACKAGING DATA
Package type	Box
PERFORMANCE
Mean time between failures (MTBF)	100000 h
Purpose	PC
ATX version	3.1
80 PLUS certification	80 PLUS Gold
Power supply unit (PSU) form factor	ATX
Capacitor country of origin	Taiwan
PORTS & INTERFACES
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	4
Peripheral (Molex) power connectors (4-pin)	2
CPU power connector (4+4 pin)	Yes
PCI Express power connectors (6+2 pin)	2
Cabling type	Non-Modular
Motherboard power cable length	60 cm
SATA power cable length	450,570,690 mm
Peripheral (Molex) power cable length	450,570,690 mm
PCI Express power connectors (12+4 pin)	1
Number of SATA power cables	2
TECHNICAL DETAILS
Doesn't contain	Lead, Mercury, Cadmium
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS, CB, EAC
WEIGHT & DIMENSIONS
Height	86 mm
Width	150 mm
Depth	140 mm
