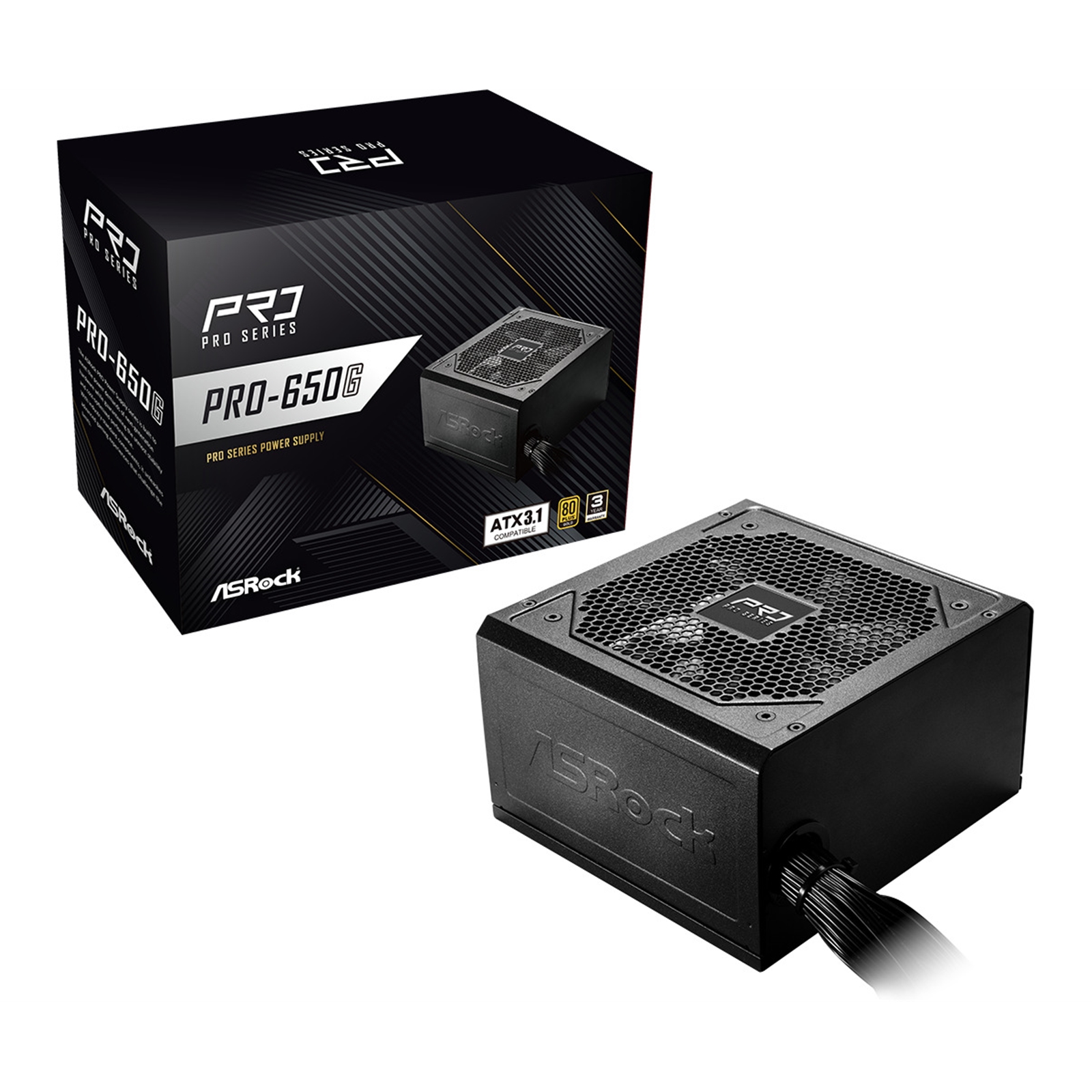

ASRock PRO-650G 650W ATX Power Supply Unit, 80 Plus Gold Certified, 120mm Silent Cooling Fan, High Efficiency PSU

PSASR-PRO650G
Key Specifications
Wattage650W
Size/VersionATX 3.1
ModularFully
SATA Connections4
CertificationGold
ColourBlack
/productImages/80/PSASR-PRO650G.JPG
/productImages/80/214031.JPG
/productImages/80/214032.JPG
/productImages/80/214033.JPG
/productImages/80/214034.JPG
/productImages/80/214035.JPG
/productImages/80/214036.JPG
Manufacturer : ASROCK
EAN : 4711581491687
Manufacturer Part Code : 90-UXR065-GNEAA2
Weight : 2.4 kg
Login For Pricing

Key Specifications
Wattage650W
Size/VersionATX 3.1
ModularFully
SATA Connections4
CertificationGold
ColourBlack
Manufacturer :
ASROCK

EAN :
4711581491687

Manufacturer Part Code :
90-UXR065-GNEAA2

Weight :
2.4 kg
Recommended Products
1281Cases
See details
1284Power Supplies
See details
1333Power Cables
See details
1349Mains Power & Extensions
See details

ASRock PRO-650G ATX Power Supply Unit

Native PCIe 12V-2x6 Cable Dual Color Design
With ASRock Classic Green connectors, users can easily see if the connector has been plugged properly.

80 PLUS CERTIFIED
The PRO series is created for value-focused users, offering 80 PLUS Gold models in 850W, 750W, and 650W options.

Safety First with ASRock
Full suite of protections to keep all components safe during normal to extreme power levels.
ASRock offers an outstanding 3 –Year warranty, guaranteeing long term reliable and peace of mind operation.

Specifications

80 Plus Efficiency
GOLD

ATX 12V Version
ATX 3.1

AC Input
100-240V~, 50-60Hz, 10-5A

Continuous 12V output
54.1 A

Warranty (Years)
3

Dimensions(L x W x H)
140mm x 150mm x 86mm

Fan
120mm Fan

iCOOL MODE
No

Protections
OCP, SCP, OVP, UVP, OTP, OPP

Capacitors
All Taiwanese

5V BOOST
No

PCIe 5.1 Cable TempGuard
No

Total Power Excursion
200%

MTBF (Hours)@25°C
100,000

Cable Type
Flat

Motherboard cable (24pin)
1

EPS 12V CPU connectors (4+4pin)
1

PCIe5.1 connectors(12+4pin) Dual Color
0

PCIe connectors (6+2pin)
1

4-pin Peripheral connectors
2

SATA 5-pin connectors
4
Manufacturer's Website:
www.asrock.com.tw
Warranty:
3 Year Return To Base Warranty

Return-to-Base warranty returns are processed within 14 business days of confirmed date of receipt - see our Returns Policy for more information.
DESIGN
Product colour Black
Number of fans 1 fan(s)
On/off switch Yes
Cooling type Active
Fan diameter 12 cm
ENERGY MANAGEMENT
Input current 10 - 5 A
Power protection features Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Combined power (+3.3V) 100 W
Combined power (+12V) 650 W
Combined power (+5V) 100 W
Combined power (-12V) 3.6 W
Combined power (+5Vsb) 15 W
Max output current (+3.3V) 20 A
Max output current (+12V) 54.1 A
Max output current (+5V) 20 A
Max output current (-12V) 0.3 A
Max output current (+5Vsb) 3 A
AC input frequency 50/60 Hz
AC input voltage 100 - 240 V
Total power 650 W
PACKAGING DATA
Package type Box
PERFORMANCE
Mean time between failures (MTBF) 100000 h
Purpose PC
ATX version 3.1
80 PLUS certification 80 PLUS Gold
Power supply unit (PSU) form factor ATX
PORTS & INTERFACES
Motherboard power connector 24-pin ATX
Number of SATA power connectors 4
Peripheral (Molex) power connectors (4-pin) 2
CPU power connector (4+4 pin) Yes
PCI Express power connectors (6+2 pin) 1
Motherboard power cable length 60 cm
SATA power cable length 450,120 mm
CPU power cable length 65 cm
EPS power connector (4+4 pin) Yes
WEIGHT & DIMENSIONS
Height 86 mm
Width 150 mm
Depth 140 mm
