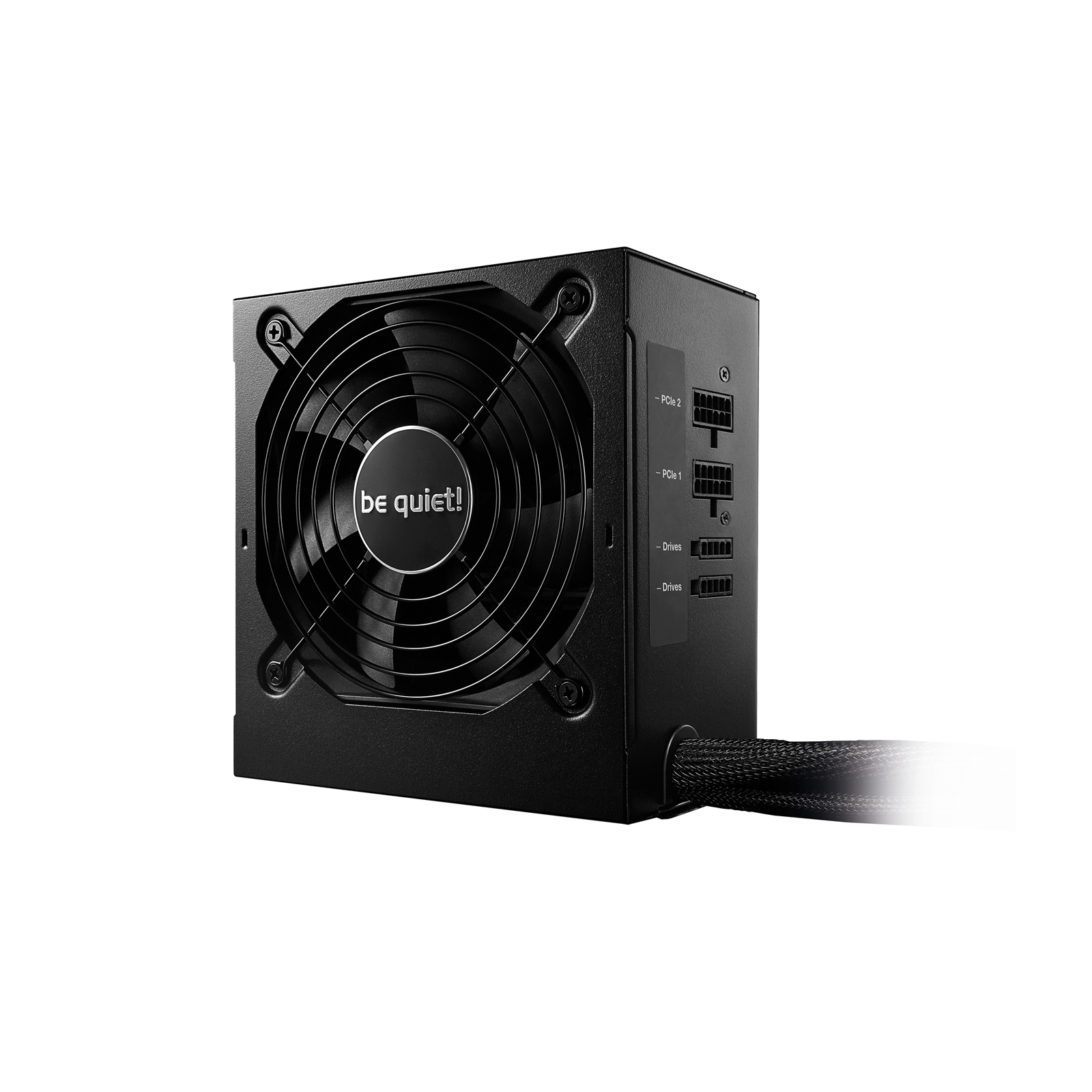

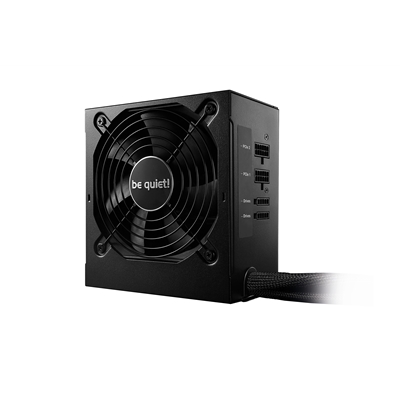

PROVEN RELIABILITY AND GOOD EFFICIENCY
be quiet! System Power 9 CM 500W offers renowned be quiet! reliability and quietness for cost-effective and reliable systems.
Key Features
Rock-solid stability with 2 strong 12V-rails
DC-to-DC technology for tight voltage regulation
2 PCIe connectors for powerful GPUs
Temperature-controlled 120mm fan reduces system noise
Stand-by drain of less than 0.15 watts
80 PLUS Bronze efficiency (up to 89%)
Semi-modular, high-quality sleeved and flat cables
All-in-one cable with S-ATA, HDD and FDD connectors
Complete suite of top safety features
Meets latest Intel C6/C7, ErP and Energy Star 6.1 guidelines
3-year manufacturer's warranty
VERY QUIET OPERATION - Attained by using a high-quality fan
System Power 9 CM 500W is equipped with a temperature-controlled 120mm fan. It provides you with the low noise operation that be quiet! is famous for, built into an entry-level system.
80 PLUS BRONZE CERTIFICATION
The 80 PLUS Bronze certification is convincing evidence of this PSU's efficient and power saving operation. It is a remarkable achievement for this class of PSU, realizing an efficiency rating of up to 89%.
HIGH PERFORMANCE FOR YOUR SYSTEM
System Power 9 CM 500W provides stable and dependable power for CPU and GPU. It is equipped with 2 independent 12V-rails and supports several graphics cards with 2 PCI express connectors for powerful GPUs.
INNOVATIVE DC-TO-DC CONVERSION
The PSU is equipped with DC-to-DC conversion for tight voltage regulation, even under heavy cross-loading conditions. This ensures reliable operation and makes it ready for the next generation of processors and graphics cards.
SEMI-MODULAR CABLE MANAGEMENT
System Power 9 CM 500W comes with full high-quality black sleeved cables that add a touch of class to any PC system. Thanks to the semi-modular cable management, cables that serve no purpose in the system are left out.
COMPREHENSIVE PROTECTION
Top component protection with a full suite of safety functions, including OCP, OVP, OPP, OTP UVP and SCP, which provide the ultimate in secure operation.
Specifications
Model
System Power 9 CM 500W
Connections -
ATX motherboard (20+4-pin) - 1
PCI express (6+2-pin) - 2
P8-/P4-connector - 1x P4+4
S-ATA - 5
P-ATA - 2
Continuous power (W)
500
Form factor
Version 2.51
Topology
DC/DC
Digitally controlled
No
Voltage (Vac)
200 - 240
Frequency (Hz)
50
Input current (A)
6
Power factor at 100% load
>0.95
Modern standby
No
P
Power consumption in standby (W)
<0.15
Average life time (h / 25°C)
100,000
Operating temperature up to (°C)
40
Warranty:
3 Year Return To Base Warranty
