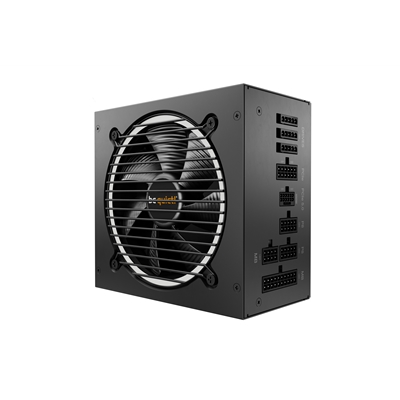

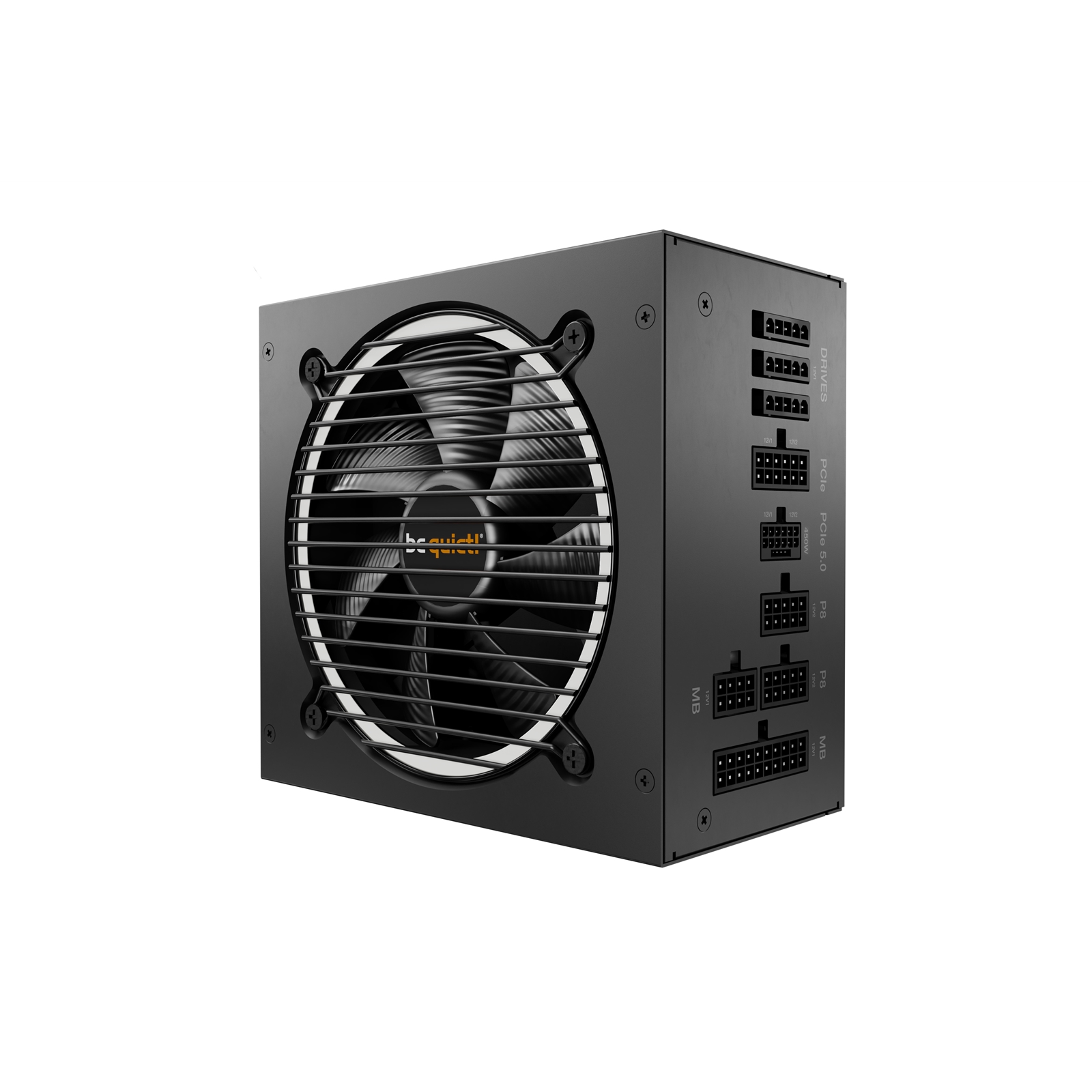

Be Quiet! 650W be quiet! Pure Power 12 M, Fully Modular, 80 PLUS Gold, Dual Rail, 54A, PCIe 5.0, 120mm Fan, ATX3.0 PSU

Key Specifications
/productImages/80/PSBEQ-BN342_108441139.JPG
/productImages/80/PSBEQ-BN342_71232417.jpg
/productImages/80/PSBEQ-BN342_71232425.jpg
/productImages/80/PSBEQ-BN342_71232434.jpg
/productImages/80/PSBEQ-BN342_71232439.jpg
Manufacturer :
EAN :
Manufacturer Part Code : BN342
Weight : 0 kg
Login For Pricing

Key Specifications
Manufacturer :

EAN :

Manufacturer Part Code :
BN342

Weight :
0 kg
Recommended Products
1284Power Supplies
See details
1333Power Cables
See details
1349Mains Power & Extensions
See details

EXCEPTIONAL QUIET, SUPERIOR FEATURES

Pure Power 12 M 650W is ATX 3.0 compliant and PCIe 5.0 compatible and offers peerless dependability with best-in-class features. Pure Power 12 M 650W offers the best combination of features with outstanding compatibility.

80 PLUS® GOLD CERTIFIED
Very high operating efficiency
Pure Power 12 M 650W is certified 80 PLUS Gold with an outstanding efficiency rating of up to 92.7%. The most compelling benefit: lower power consumption, consequently lower costs, and above all a cooler as well as quieter operation. Pure Power 12 M 650W is always the correct choice for quiet systems and gaming PCs!

FUTURE-PROOF YOUR SYSTEM
Fulfills all ATX 3.0 specifications
Pure Power 12 M 650W is an ATX 3.0 PSU and comes with both native integration of the 12VHPWR connector for next-generation PCIe 5.0 graphics cards, and PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful present systems.

THE NEW STANDARD OF POWER
For massive transient loads
Pure Power 12 M offers 650W of continuous power with 2 independent 12V rails. Even if the graphics card demands excessive power for a short time: Pure Power 12 M 650W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.

UNPRECEDENTED SILENT OPERATION
Achieved with a silence-optimized be quiet! fan
The exceptionally silent 120mm be quiet! fan is temperature-controlled to strike the best balance between effective cooling and quietness. Airflow-optimized fan blades reduce turbulence, enabling best-in-class
quiet functionality.

HIGH-CLASS TECHNOLOGIES
Rock-solid stability
With its LLC topology Pure Power 12 M 650W provides a best-in-class voltage regulation and efficiency. That makes it perfect for building or upgrading very quiet systems as well as gaming and media creation PCs.

MODULAR CABLES
Utmost convenience and compatibility
Thanks to their modularity, all unnecessary cables in the system are left out. Pure Power 12 M 650W simplifies cable management and routing for a tidy-looking system. A smoother airflow results from the uncluttered layout of the system, which means lower noise and temperatures inside the case.
Warranty:
DESIGN
Product colour Black
Number of fans 1 fan(s)
On/off switch Yes
Cooling type Active
Fan diameter 12 cm
Fan location Top
ENERGY MANAGEMENT
Peak power 720 W
Input current 10/5 A
Efficiency 92.7%
Power protection features Over current, Over power, Over voltage, Overheating, Short circuit
Power factor 0.98
Power Factor Correction (PFC) type Active
Combined power (+3.3V) 120 W
Combined power (+12V) 650 W
Combined power (+5V) 120 W
Combined power (-12V) 3.6 W
Combined power (+5Vsb) 15 W
Max output current (+3.3V) 20 A
Max output current (+5V) 20 A
Max output current (-12V) 0.3 A
Max output current (+5Vsb) 3 A
AC input frequency 50 - 60 Hz
AC input voltage 100 - 240 V
Max output current (+12V2) 28 A
Max output current (+12V1) 32 A
Total power 650 W
Power Good signal delay range 100 - 150 ms
LOGISTICS DATA
Warranty period 10 year(s)
OPERATIONAL CONDITIONS
Operating temperature (T-T) 0 - 40 °C
OTHER FEATURES
Number of screws 5
Screws included Yes
Noise level (quiet mode, 50%) 9.1 dB
Noise level (full-load mode, 100%) 19.9 dB
Noise level (silent mode, <30%) 8.1 dB
Cable ties included Yes
PACKAGING CONTENT
Cables included PATA, PCIe, Peripheral (Molex), SATA
PACKAGING DATA
Cables included PATA, PCIe, Peripheral (Molex), SATA
Package type Box
PERFORMANCE
Mean time between failures (MTBF) 100000 h
Noise level 19.9 dB
Purpose PC
ATX version 3.0
EPS version 2.92
80 PLUS certification 80 PLUS Gold
Power supply unit (PSU) form factor ATX
PORTS & INTERFACES
PCI Express connector Yes
Motherboard power connector 20+4 pin ATX
Number of SATA power connectors 5
Peripheral (Molex) power connectors (4-pin) 1
ATX power connector (20+4 pin) Yes
CPU P4 connector (4-pin) 1
PCI Express power connectors (6+2 pin) 2
Number of PATA power connectors 2
Motherboard power cable length 55 cm
SATA power cable length 500,650,800,950 mm
Peripheral (Molex) power cable length 550 mm
EPS power connector (4+4 pin) Yes
TECHNICAL DETAILS
Sustainability compliance Yes
Sustainability certificates ENERGY STAR, ErP, RoHS
Warranty period 10 year(s)
WEIGHT & DIMENSIONS
Height 86 mm
Width 160 mm
Depth 150 mm
