Target Components

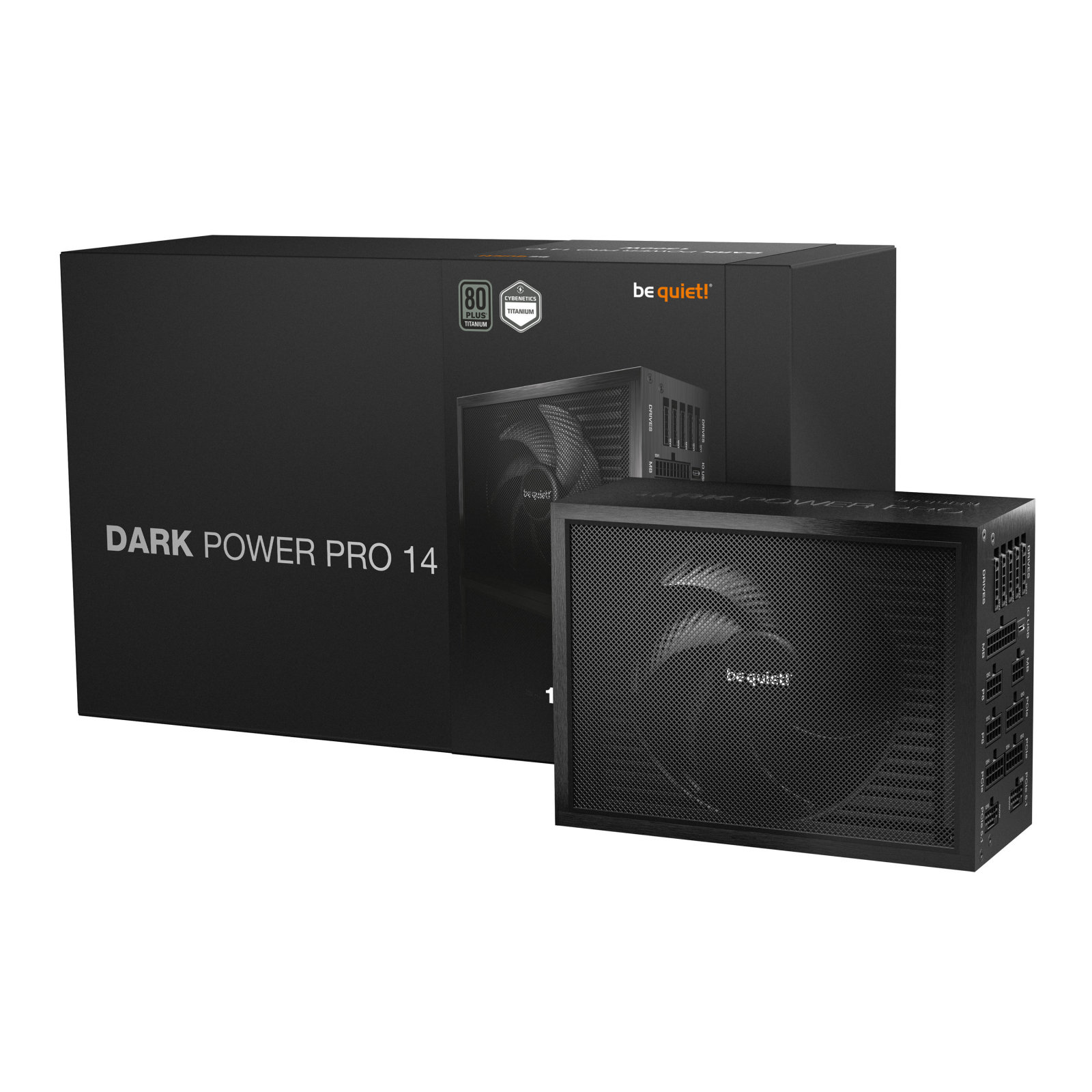

The be quiet! Dark Power Pro 14 IO 1300W 80+ Titanium Power Supply is engineered for extreme-performance gaming PCs, enthusiast builds, professional workstations and heavily overclocked systems. Delivering 1300W of continuous power with ATX 3.1 compliance and native PCIe 5.1 12V-2x6 connectivity, it provides the performance required by the latest high-end processors and graphics cards. Advanced digital control, premium Japanese capacitors and integrated be quiet! Silent Wings cooling combine exceptional electrical stability with remarkably quiet operation.

Key Features
80 PLUS Titanium & Cybenetics Titanium efficiency with up to 94.9% efficiency
1300W continuous power output with up to 1400W peak power
ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs using 6+2-pin connectors
2 x native 12V-2x6 PCIe 5.1 connectors supporting up to 600W each
6 x PCIe 6+2-pin connectors for extensive GPU compatibility
Selectable multi-rail or single-rail 12V operation
Software monitoring and configuration through be quiet! IO Center
Selectable active or semi-passive cooling
Integrated Silent Wings 4 135mm fan with fluid dynamic bearing
6-pole fan motor for exceptionally quiet and reliable operation
Fully digital power regulation for outstanding stability and low ripple
Full Bridge + LLC + SR + DC/DC topology
Fully modular individually sleeved cables for clean system builds
Premium Japanese capacitors rated to 105°C
Comprehensive electrical protection
10-year manufacturer's warranty

Full Specification

Model:
Dark Power Pro 14 IO | 1300W Titanium Power Supply

MPN:
BP022EU

EAN:
4260052192108

Output Power:
1300W continuous / 1400W peak

Efficiency:
80 PLUS Titanium & Cybenetics Titanium
Up to 94.9% efficiency

Efficiency at 230V:
2% load: 74.2%
10% load: 91.9%
20% load: 94.6%
50% load: 94.9%
100% load: 93.9%

Voltage Rails:
6 x 12V rails
Switchable to single-rail operation

12V Rail Output:
+12V1: 35A
+12V2: 35A
+12V3: 40A
+12V4: 40A
+12V5: 55A
+12V6: 55A

ATX Form Factor:
ATX 3.1

EPS Specification:
EPS 12V 2.92

PCI Express Support:
PCIe 5.1

Connectors:
1 x ATX 20+4-pin
1 x 4+4-pin CPU
1 x 8-pin CPU
2 x 12V-2x6 PCIe 5.1
6 x 6+2-pin PCIe
16 x SATA
2 x PATA / Molex
1 x USB 2.0 9-pin connection for IO functionality

12V-2x6 Output:
Up to 600W per 12V-2x6 connector
Up to 1200W combined

Fan:
135mm be quiet! Silent Wings 4
Fluid Dynamic Bearing (FDB)
6-pole fan motor

Maximum Fan Speed:
2600 RPM

Fan Speed Control:
Active or semi-passive cooling
Software configurable through be quiet! IO Center

Fan Noise:
8.5 dB(A) at 10% load
8.6 dB(A) at 20% load
8.7 dB(A) at 50% load
22.1 dB(A) at 100% load

Power Input:
100–240V AC, 50/60Hz
Input current: 15A / 9A

Power Factor:
Greater than 0.98 at 230V
Greater than 0.99 at 115V

Power Output:
12V DC: up to 1300W combined
3.3V + 5V combined: 150W
5VSB: 17.5W
-12V: 6W

Output Current:
+3.3V: 25A
+5V: 25A
+12V1: 35A
+12V2: 35A
+12V3: 40A
+12V4: 40A
+12V5: 55A
+12V6: 55A
-12V: 0.5A
+5VSB: 3.5A

Power Supply Technology:
Digitally controlled
Full Bridge
LLC converter
Synchronous Rectification (SR)
DC/DC conversion

Capacitors:
Premium Japanese capacitors rated to 105°C

Cable Set:
Fully modular individually sleeved cables
ATX, EPS, PCIe 5.1, PCIe 6+2, SATA and PATA connections

Cable Lengths:
ATX 20+4-pin: 600mm
CPU 4+4-pin: 700mm
CPU 8-pin: 700mm
PCIe 6+2-pin: 600mm
12V-2x6: 600mm / 700mm
SATA / PATA: up to 1050mm
USB 2.0 IO cable: 770mm

Software Support:
Compatible with be quiet! IO Center
PSU monitoring and configuration
Cooling mode configuration
Single-rail and multi-rail selection

Special Features:
Titanium efficiency
ATX 3.1 and PCIe 5.1 support
Dual 600W 12V-2x6 connectors
Software-controlled PSU functions
Selectable active or semi-passive cooling
Selectable single-rail or multi-rail operation
Advanced low-ripple power delivery
Premium Japanese capacitors
Silent Wings 4 cooling
Fully modular sleeved cabling

Protection:
OTP – Over Temperature Protection
OCP – Over Current Protection
OPP – Over Power Protection
SCP – Short Circuit Protection
OVP – Over Voltage Protection
UVP – Under Voltage Protection
SIP – Surge & Inrush Protection

Hold-Up Time:
16.5ms at 100% load
20.5ms at 80% load

Power Good Signal:
100–150ms

Modern Standby:
Supported

Standby Power Consumption:
Less than 0.11W

Operating Temperature:
Up to 40°C

Dimensions without cable (L x W x H), (mm)
200 x 150 x 86

Weight:
Approx. 2.67kg

MTBF:
More than 100,000 hours at 25°C

Colour:
Black

Warranty:
10-year manufacturer's warranty
