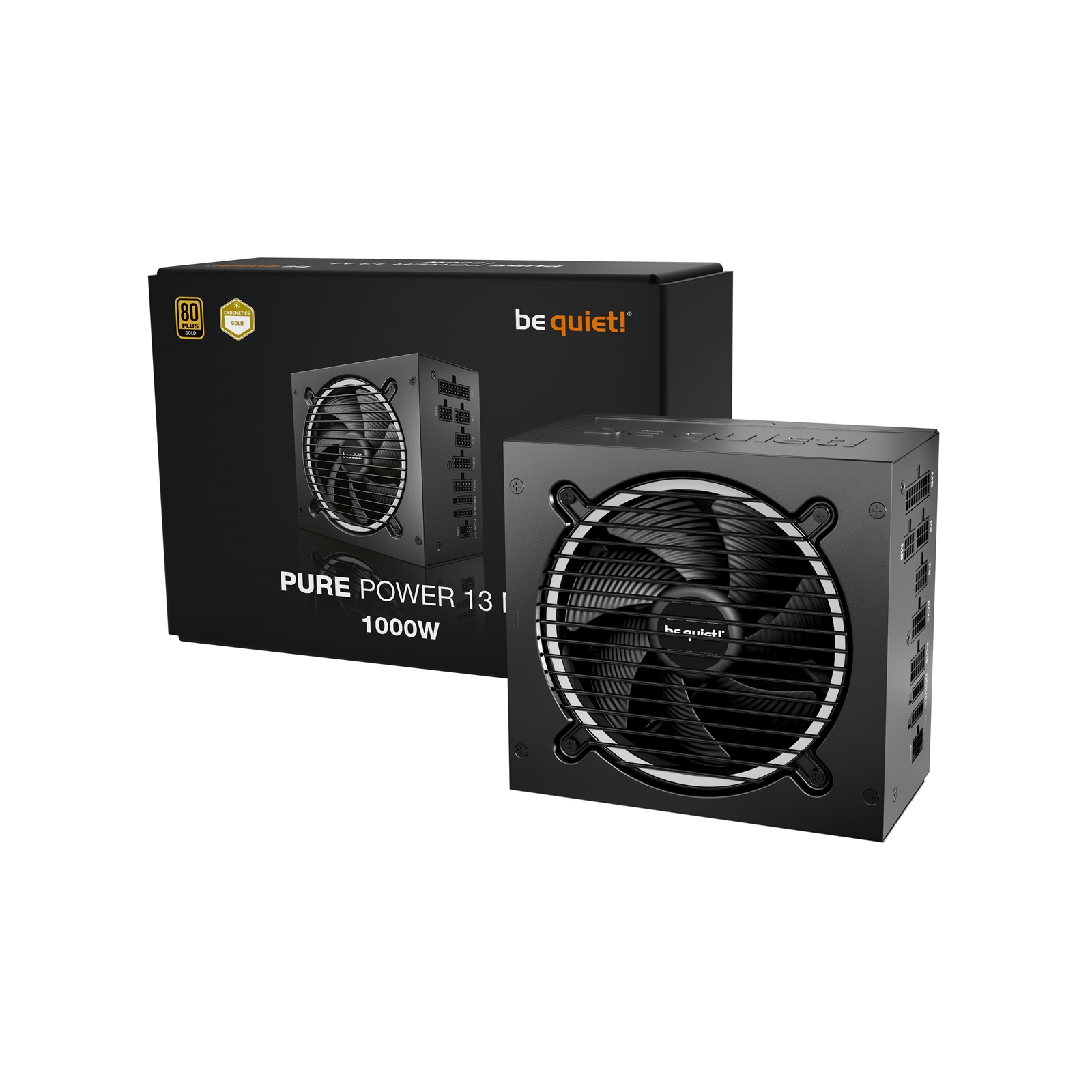

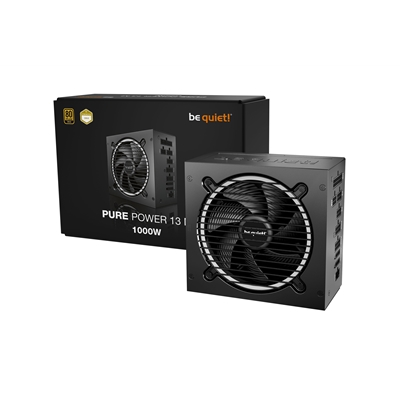

The be-quiet! Pure Power13M 1000W (MPNBP028EU) is a fully modular, high-efficiency PSU designed for advanced desktop systems. It meets ATX 3.1 standards and offers PCIe 5.1 compatibility, including a native 12V-2x6 connector for next-gen GPUs. Paired with 80 PLUS Gold certification and semi-passive (zero-RPM) cooling, it delivers whisper-quiet yet powerful performance, backed by robust protections and a 10-year warranty.
Key Features
Continuous / Peak Power: 1000W / up to 1050?W
Efficiency: 80 PLUS Gold, up to ~94.4% efficiency at 50% load
Compliance: ATX 3.1, EPS 12V v2.92
PCIe Support: 1 x 12V-2x6 connector (600?W), plus 4 x 6+2-pin PCIe connectors
Rail Design: Single massive 12V rail that handles power spikes reliably
Cooling: 120mm rifle-bearing fan with zero-RPM operation at low load
Topology: LLC with digital control for tight voltage regulation
Modularity: Fully modular flat and sleeved cables for clean build layout
Warranty: 10-year manufacturer's warranty, MTBF =100,000hours
Full Technical Specification
Model / MPN:
Pure Power 13 M 1000W (BP028EU)
Form Factor:
ATX 3.1 (EPS 12V v2.92)
Power Output:
1000W continuous / 1050W peak
Efficiency Rating:
80 PLUS Gold (up to ~94.4% at 50% load)
Input Voltage:
100–240VAC
Input Frequency:
50–60Hz
Input Current:
~6A @ 240VAC, ~12A @ 120VAC
Power Factor:
=0.98 at full load
Modern Standby:
Supported; <0.1W standby consumption
Operating Temperature:
Up to 40°C
MTBF:
=100,000 hours at 25°C
Rail Operation:
Single powerful 12V rail (up to 83A)
Additional Rails:
3.3V / 5V rails at 22A each; -12?V, +5VSB outputs supported
Hold-up Time:
~21ms at full load; ~28ms at 80% load
Protections:
OCP, OVP, UVP, OPP, OTP, SCP, surge/inrush protection
Fan:
120mm rifle-bearing, semi-passive zero-RPM at low load
Noise Levels:
~13.6dB(A) at ~20% load; ~30.3dB(A) at full load
Modularity:
Fully modular cables, flat and sleeved style
Cable Length:
Up to ~95cm total; ~55cm to motherboard
Connectors:
1 x 20+4-pin ATX
1 x 4+4-pin CPU (EPS)
1 x 8-pin CPU
1 x 12V-2x6 (600W)
4 x 6+2-pin PCIe
6 x SATA power
2 x Molex (PATA)
Dimensions:
~160x150x86mm (WxDxH)
Warranty:
10-year limited warranty
Warranty:
10 Year Return To Base
There are currently no data sheets available for this product.
