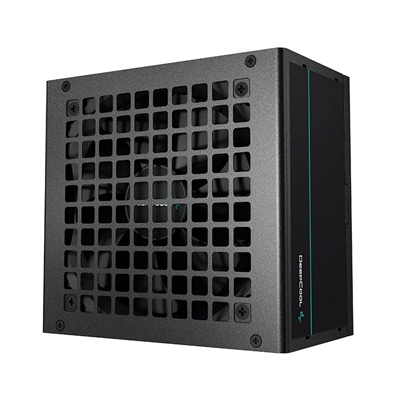

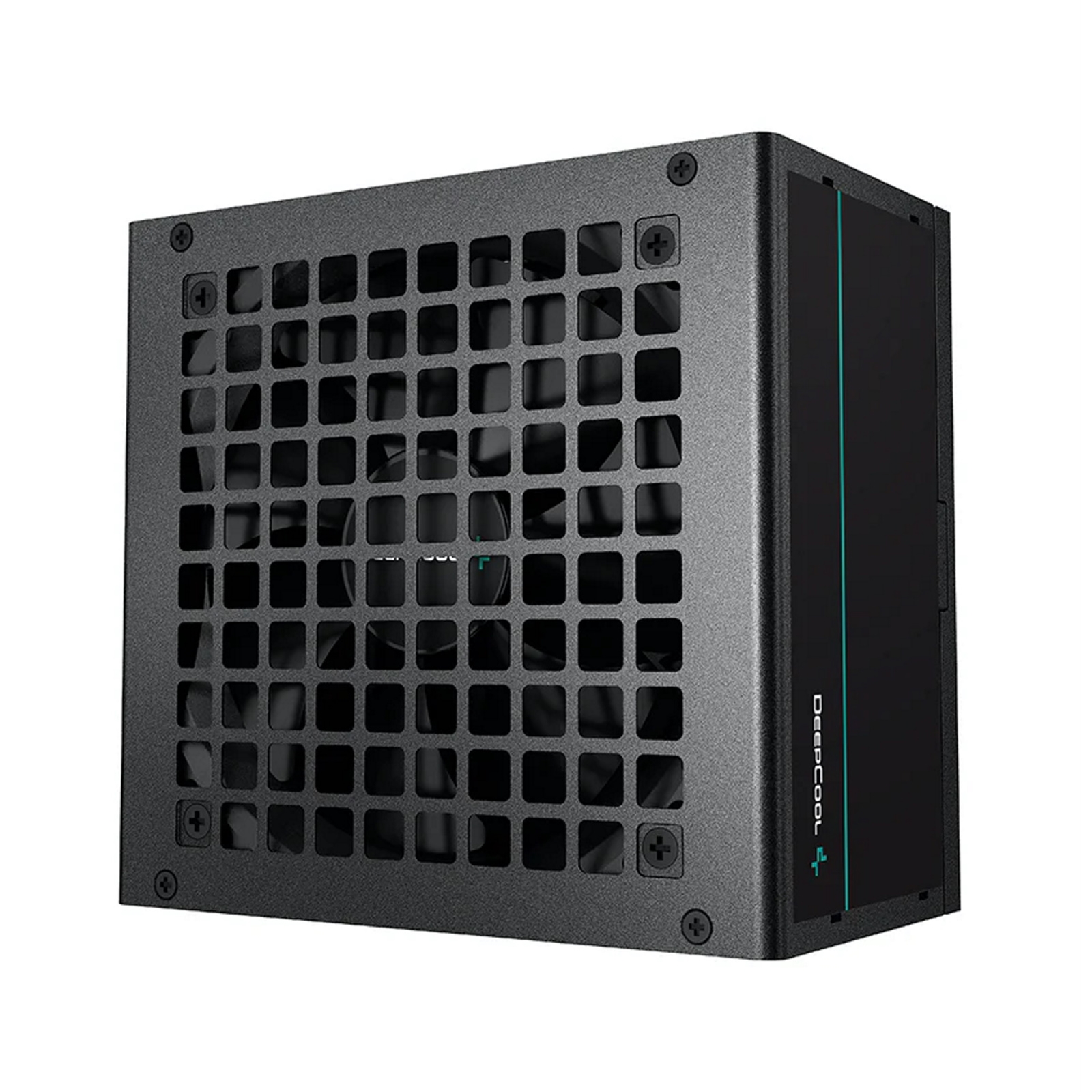

PF500
80 PLUS Standard Power Supply

The DeepCool PF Series Power Supply Unit offers safe and stable power performance with reliable 80 PLUS Standard efficiency and affordable pricing.

TO HIGHER STANDARDS
Certified for 80 PLUS 230V EU Standard efficiency that ensures 85% efficiency under typical loading of 50%. Better efficiency translates into lower energy waste and lower temperatures for more cost savings.

SILENT HYDRAULIC BEARING FAN
Optimally balanced for low-noise performance, the 120mm fluid bearing fan improves overall life expectancy and reduces friction and vibration.

FLAT BLACK CABLES
Stealthy and flexible, the fixed flat black cables are easy to maneuver for cable management while also taking up less space in your system.

RELIABLE PROTECTION
Shield against potential risk and damage with overpower, over voltage, and short circuit power protection.
OPP - Over Power Protection
OVP - Over Voltage Protection
SCP - Short Circuit Protection
UVP - Under Voltage Protection

Type
ATX 12V V2.4

80 PLUS Certifications
WHITE

Fan Size
120mm

Fan Bearing
Hydro Bearing

Topology
Active PFC + Double tube forward

Capacitors
Taiwan bulk capacitor

Power Good Signal
100-500ms

Hold Up Time
=16ms (75% Load)

Efficiency
=85% Under Typical Load (50% Loading)

Protection
OPP/OVP/SCP/UVP

Operation Temperature
0-40°C

Regulatory
CB/CCC/CE/UKCA/EAC/RCM/BIS

Regulation
ErP(2010)

MTBF
100,000 Hours

Connections
1 x Main Power Connector 24-Pin (20+4)
1 x EPS 12V Connector 8-Pin (4+4)
2 x PCIE 6+2 Pin (x1)
6 x SATA (x2)
2 x 4-Pin Peripheral (x2)

Product Dimension ( W x L x H )
150 x 140 x 86mm

Master Carton Quantity
5

Manufacturer's Website:

uk.deepcool.com

Warranty:

5 Years Return To Base Warranty

DESIGN
Product colour	Black
Fan diameter	12 cm
ENERGY MANAGEMENT
Input current	4 A
Efficiency	85%
Power protection features	Over power, Over voltage, Short circuit, Under voltage
Combined power (+3.3V)	100 W
Combined power (+12V)	480 W
Combined power (+5V)	100 W
Combined power (+5Vsb)	12.5 W
Max output current (+3.3V)	15 A
Max output current (+12V)	40 A
Max output current (+5V)	15 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	2.5 A
AC input frequency	50 Hz
AC input voltage	200 - 240 V
Total power	500 W
OPERATIONAL CONDITIONS
Operating temperature (T-T)	0 - 40 °C
PERFORMANCE
Mean time between failures (MTBF)	100000 h
Purpose	PC
Bearing technology	Sleeve
Supported motherboard form factors	ATX
ATX version	2.4
80 PLUS certification	80 PLUS White
Power supply unit (PSU) form factor	ATX
PORTS & INTERFACES
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	3
Peripheral (Molex) power connectors (4-pin)	1
PCI Express power connectors (6+2 pin)	2
Cabling type	Non-Modular
Motherboard power cable length	55 cm
SATA power cable length	450 mm
Peripheral (Molex) power cable length	150 mm
PCI Express power cable length	51 cm
TECHNICAL DETAILS
Sustainability certificates	ErP
WEIGHT & DIMENSIONS
Height	86 mm
Width	150 mm
Depth	140 mm
