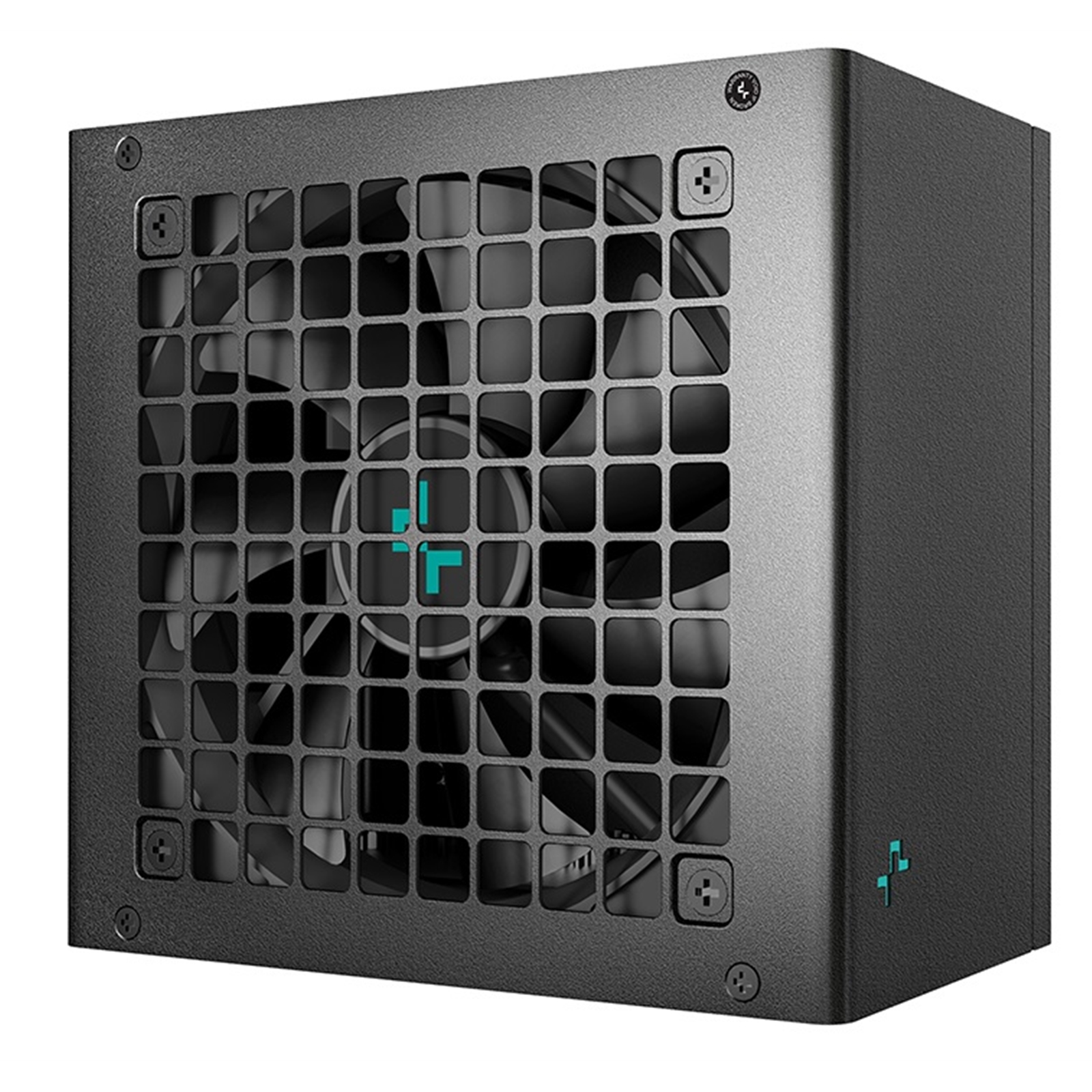

DeepCool PN750D 750W PSU, ATX 3.1, 120mm Silent High Performance Fan, 80 PLUS Gold, Non Modular, UK Plug, Flat Black Cables, Japanese Bulk Capacitors

PSDEE-PN750DUK
Key Specifications
Wattage750W
Size/VersionATX 3.1
ModularNo
SATA Connections8
CertificationGold
ColourBlack
/productImages/80/PSDEE-PN750DUK.JPG
/productImages/80/197420.JPG
/productImages/80/197421.JPG
/productImages/80/197422.JPG
/productImages/80/197423.JPG
/productImages/80/197424.JPG
/productImages/80/197425.JPG
/productImages/80/197426.JPG
/productImages/80/197427.JPG
Manufacturer : DEEPCOOL
EAN : 6933412718758
Manufacturer Part Code : R-PN750D-FC0B-UK
Weight : 2.1 kg
Login For Pricing

Key Specifications
Wattage750W
Size/VersionATX 3.1
ModularNo
SATA Connections8
CertificationGold
ColourBlack
Manufacturer :
DEEPCOOL

EAN :
6933412718758

Manufacturer Part Code :
R-PN750D-FC0B-UK

Weight :
2.1 kg
Recommended Products
1281Cases
See details
1284Power Supplies
See details
1333Power Cables
See details
1349Mains Power & Extensions
See details

PN750D NATIVE DIRECT ATX3.1
The DeepCool PN750D is a new non-modular power supply that meets the latest Intel ATX 3.1 and PCIe 5.1 standards. With a dedicated 12V-2x6, 2 EPS, and 3 PCIe connectors, the PN750D provides stable power for a wide range of modern high-power components.

GRACEFUL GOLD
80 Plus Gold certified to meet a high level of power efficiency under 90% of typical loads. Each unit is also rated Gold by Cybenetics.

POWER YOU CAN TRUST
Through the use of a premium main electrolytic capacitor, active PFC, full-bridge SRC LLC, and a DC-to-DC topology, the PN750D can keep the hold-up time to = 16 ms under a high load of 80%.

PCI-E 5.1 POWER
Equipped with a high-grade 105C-resistant 16AWG copper-core embossed 12V-2x6 cable, the PN750D provides up to 450W for modern GPUs.

DYNAMIC HYDRO BEARING FAN
The PN750D comes equipped with a dynamic 120mm hydro bearing fan that will adjust its speed based on the cooling needs of the PSU.

PEACE OF MIND
The PN750D comes standard with a slew of well-rounded safeguards, including OPP, OVP, SCP, OTP, OCP, UVP, NLO, and SIP.
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Over Temp Protection
Over Current Protection
Under Voltage Protection
No Load Operation
Surge & Inrush Protection

EXCELLENT COVERAGE
The PN750D is engineered and manufactured at such a high level that DeepCool is offering a lengthy 10 years of trouble-free limited warranty coverage.

Specifications

Type
ATX12V V3.1

Product Dimensions
150 x 140 x 86mm (W x L x H)

Efficiency certification
80Plus Gold

Fan Size
120mm

Fan Bearing
HYB (Hydro Bearing)

Topology
Active PFC + Full Bridge SRC LLC + DC to DC

Capacitors
Chinese Electrolytic Capacitors

Power Good Signal
100-150ms

Hold Up Time
=16ms(80% Load)

Efficiency
=90% Under Typical Load(50% Loading)

Connections
Power 20+4 Pin x1
EPS 8-Pin x 2
PCIe 12+4-Pin 12VHPWR x 1
PCIe 6+2-Pin x 3
SATA x 8
Molex 4-Pin x 2

Protection
OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO

Operation Temperature
0 - 40?

Regulatory
CE/FCC/CCC/TUV-RH/cTUVus/RCM/EAC

Erp Regulation
ErP 2014

Environment Protection
WEEE/?? RoHS/Triman/P65

MTBF
100,000 Hours
Manufacturer's Website:
uk.deepcool.com
Warranty:
10 Year Return To Base

Return-to-Base warranty returns are processed within 14 business days of confirmed date of receipt - see our Returns Policy for more information.
CERTIFICATES
Compliance certificates CCC, CE, EAC, Federal Communications Commission (FCC), RCM, RoHS, WEEE
DESIGN
Product colour Black
Number of fans 1 fan(s)
On/off switch Yes
Cooling type Active
Fan diameter 12 cm
Fan location Top
ENERGY MANAGEMENT
Input current 10 - 5 A
Efficiency 90%
Power protection features No load operation, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Surge protection, Under voltage
Power Factor Correction (PFC) type Active
Combined power (+3.3V) 110 W
Combined power (+12V) 750 W
Combined power (+5V) 110 W
Combined power (-12V) 3.6 W
Combined power (+5Vsb) 15 W
Max output current (+3.3V) 20 A
Max output current (+12V) 62.5 A
Max output current (+5V) 20 A
Max output current (-12V) 0.3 A
Max output current (+5Vsb) 3 A
AC input frequency 50/60 Hz
AC input voltage 100 - 240 V
Total power 750 W
LOGISTICS DATA
Warranty period 10 year(s)
OPERATIONAL CONDITIONS
Operating temperature (T-T) 0 - 40 °C
PACKAGING CONTENT
Cables included AC
Cable tie(s) included Yes
PACKAGING DATA
Cables included AC
Package type Box
PERFORMANCE
Mean time between failures (MTBF) 100000 h
Purpose PC
Bearing technology FDB
ATX version 3.1
80 PLUS certification 80 PLUS Gold
Power supply unit (PSU) form factor ATX
PORTS & INTERFACES
Motherboard power connector 20+4 pin ATX
Number of SATA power connectors 8
Peripheral (Molex) power connectors (4-pin) 2
ATX power connector (20+4 pin) Yes
CPU power connector (4+4 pin) Yes
PCI Express power connectors (6+2 pin) 3
Cabling type Non-Modular
Motherboard power cable length 55 cm
SATA power cable length 550,750,450,650 mm
CPU power cable length 70 cm
Peripheral (Molex) power cable length 450 mm
PCI Express power connectors (16-pin) 1
TECHNICAL DETAILS
Sustainability certificates ErP, Triman
Warranty period 10 year(s)
Compliance certificates CCC, CE, EAC, Federal Communications Commission (FCC), RCM, RoHS, WEEE
WEIGHT & DIMENSIONS
Height 86 mm
Width 150 mm
Depth 140 mm
