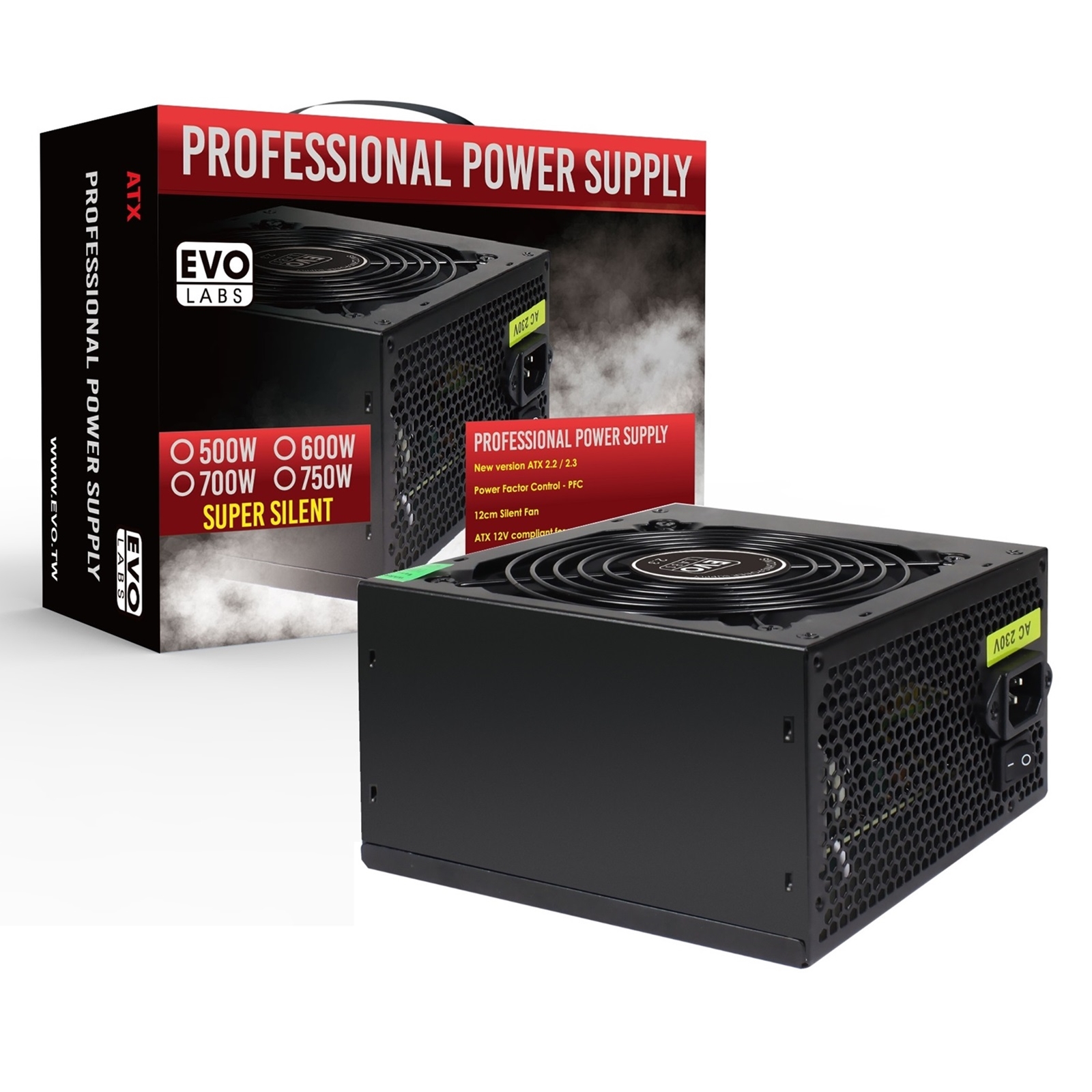

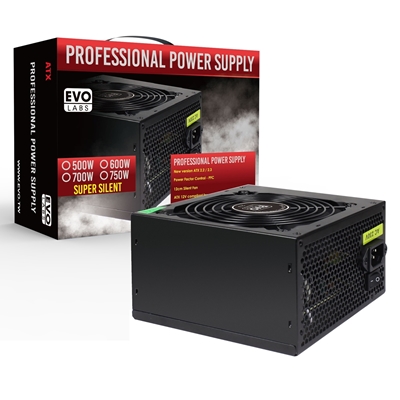

Introducing the Evo Labs E-750BL ATX 750W Power Supply, designed to elevate your PC system's performance with unparalleled efficiency and reliability. Boasting a sleek black exterior and equipped with a powerful 120mm silent cooling fan, this PSU ensures optimal airflow and ventilation while operating silently, perfect for maintaining a cool and quiet computing environment.

Key Features:

Compliant with the latest ATX 2.2/2.3 standards
Features a 120mm Black Silent Cooling Fan for enhanced ventilation
Utilizes Power Factor Control (PFC) for improved efficiency
ATX 12V compliance ensures compatibility with most CPUs and mainboards
Offers ample connectivity with 3 SATA connectors, 2 4-pin Molex connectors, and 1 FDD connector
Stable and reliable performance for uninterrupted use

Specifications:

Model:
BR750-12BL

Wattage:
750W

Input Voltage:
230Vac

Input Current:
10A

Input Frequency:
50~60Hz

Color:
Black

Dimensions (W x H x D):
150 x 85 x 140 mm

Weight:
1.2kg

Certifications:
CE / ROHS

Cooling:
120mm Black Silent Cooling Fan

Additional Features:
Noise <17 dBA, MTBF: 100,000 Hours

Master Carton Quantity:
10

Experience the next level of power supply performance with Evo Labs E-750BL, setting new standards for efficiency, reliability, and quiet operation.

Warranty:

1 Year Return To Base Warranty

DESIGN
Product colour	Black
Cooling type	Active
Fan diameter	12 cm
ENERGY MANAGEMENT
Input current	10 A
AC input frequency	50 - 60 Hz
AC input voltage	115 - 230 V
Total power	750 W
LOGISTICS DATA
Harmonized System (HS) code	84733020
OTHER FEATURES
Harmonized System (HS) code	84733020
PERFORMANCE
Certification	CE, ROHS
Mean time between failures (MTBF)	100000 h
Noise level	17 dB
Purpose	PC
ATX version	2.3
Silent mode	Yes
Power supply unit (PSU) form factor	ATX
PORTS & INTERFACES
Floppy disk drive connector	Yes
PCI Express power connectors (6-pin)	1
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	4
Peripheral (Molex) power connectors (4-pin)	3
CPU P4 connector (4-pin)	1
Cabling type	Non-Modular
WEIGHT & DIMENSIONS
Weight	1.5 kg
Height	85 mm
Width	150 mm
Depth	140 mm
