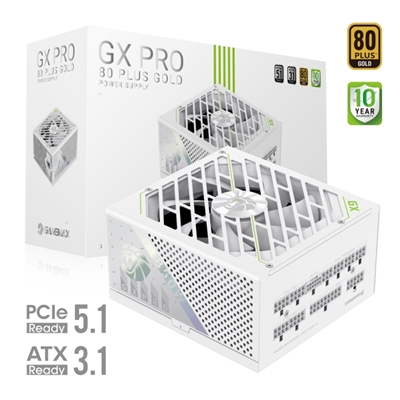

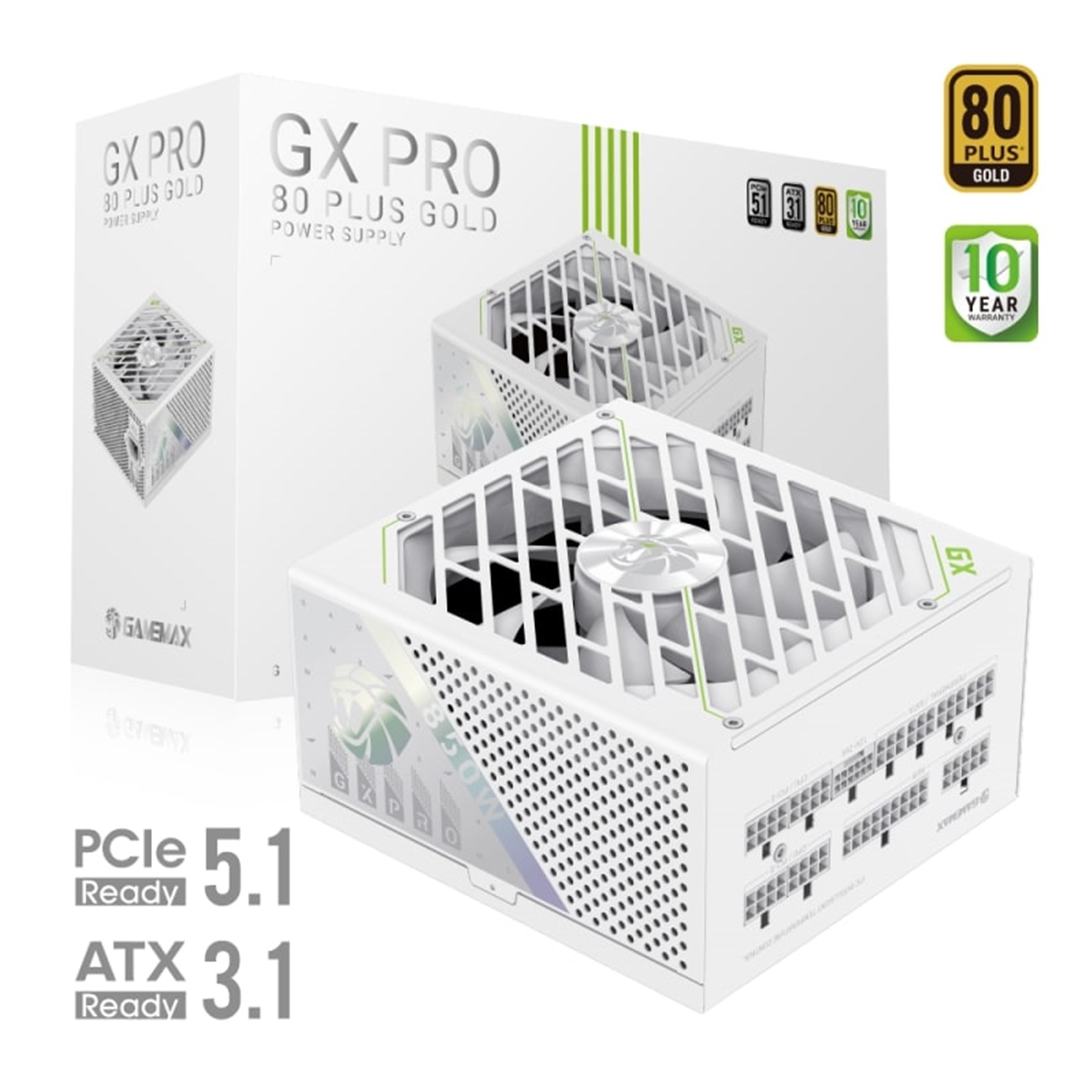

Gamemax GX PRO 850G 80 Plus Gold Modular Power Supply

Features
GX PRO 850G 80 Plus Gold Modular Power Supply: ATX3.1 Ready, Silent Cooling, & Premium Durability
80 Plus Gold Efficiency & Quiet Operation: Achieves 90% efficiency under typical loads with APFC+LLC+DC-DC design, minimizing power waste and noise.
Premium Durability & Reliability: Built with Japanese 105°C capacitors and solid capacitors for long-term stability and performance.
ATX3.1 & PCIe5.1 Ready: Features a native 12V-2x6 connector for seamless RTX 40/50 GPU compatibility and efficient power delivery.
Advanced Thermal Management: 13.5cm FDB fan with intelligent temperature control ensures quiet cooling and optimal heat dissipation.
Modular Design & Robust Protection: Fully modular layout with dual-stage EMI filtering and NTC thermistor safeguards against surges, while gold-plated cables ensure durable, high-conductivity connections

80 PLUS GOLD CERTIFIED
GX PRO 850G WH fully modular power supply is 80 PLUS Gold certified, with a conversion efficiency exceeding 90%.

13.5CM FDB FAN AND INTELLIGENT TEMP CONTROL
FDB fans utilize intelligent temperature control technology to automatically slow down at low loads to reduce wind noise.

ATX 3.1 READY FOR NEXT-GEN GPUS
Built for next-gen GPUs with a native 12V-2x6 connector for RTX" 40/50 series.The high-efficiency,low-loss transformer handles 2xpower excursions with ease.

COMPREHENSIVE CIRCUIT PROTECTION
Provides safety measures with multiple protection technologies including overload, overvoltage, undervoltage, overcurrent, short circuit, over-temperature protection, and so on. Ensure the stability of computers and hardware while preventing damage and interference.

HIGH-QUALITY JAPANESE MAIN CAPACITORS
The GX PR0 850G uses high-quality Japanese main capacitors with a high temperature tolerance of up to 105°C.

EMI PROTECTION & ANTI-BURN CIRCUIT
Robust EMl filtering in two stages protects against spikes, surges, noise,and interference. An NTC thermistor and relay safeguard against short circuits and abnormal currents.

WIRELESS TECHNOLOGY
The fully modular design uses wireless technology with pin and high-density copper pillars for wireless connections on the PCB.This reduces internal wiring, enhances connection reliability and space utilization, increases cooling airflow, and extend scomponent lifespan.

FULLY MODULAR DESIGN & EMBOSSED FLAT CABLES
Fully modular design with ample power connectors supports dual CPUs or three 8-pin connectors for flagship GPUs. Embossed flat cables ensure neat and aesthetically pleasing cable management.

Specifications

Dimensions: 160mm x 85mm x 150mm (W x H x D)
Input Voltage: 110-240 VAC
Input Current: 15-8A
Input Frequency Range: 50-60Hz
PFC: Active PFC (>.99)
Power Good Signal: 100-150 ms
Hold Up Time: >10ms
Efficiency: > 87% (92% max)
MTBF: > 100,000 Hours
Protection: OPP / OVP/ UVP / OCP/ SCP / OTP / NLP / SIP / OLP / NLO
Power: 850W
Operation Temperature: 0-40C
Safety: CE / FCC / CB/ROHS/TUV/cTUVus
Cooling: 135mm Ultra Silent Fan
Noise: <25dBa
80 Plus Certified: Yes - 80 Plus Gold
