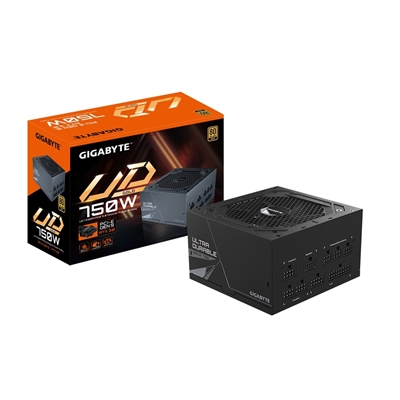

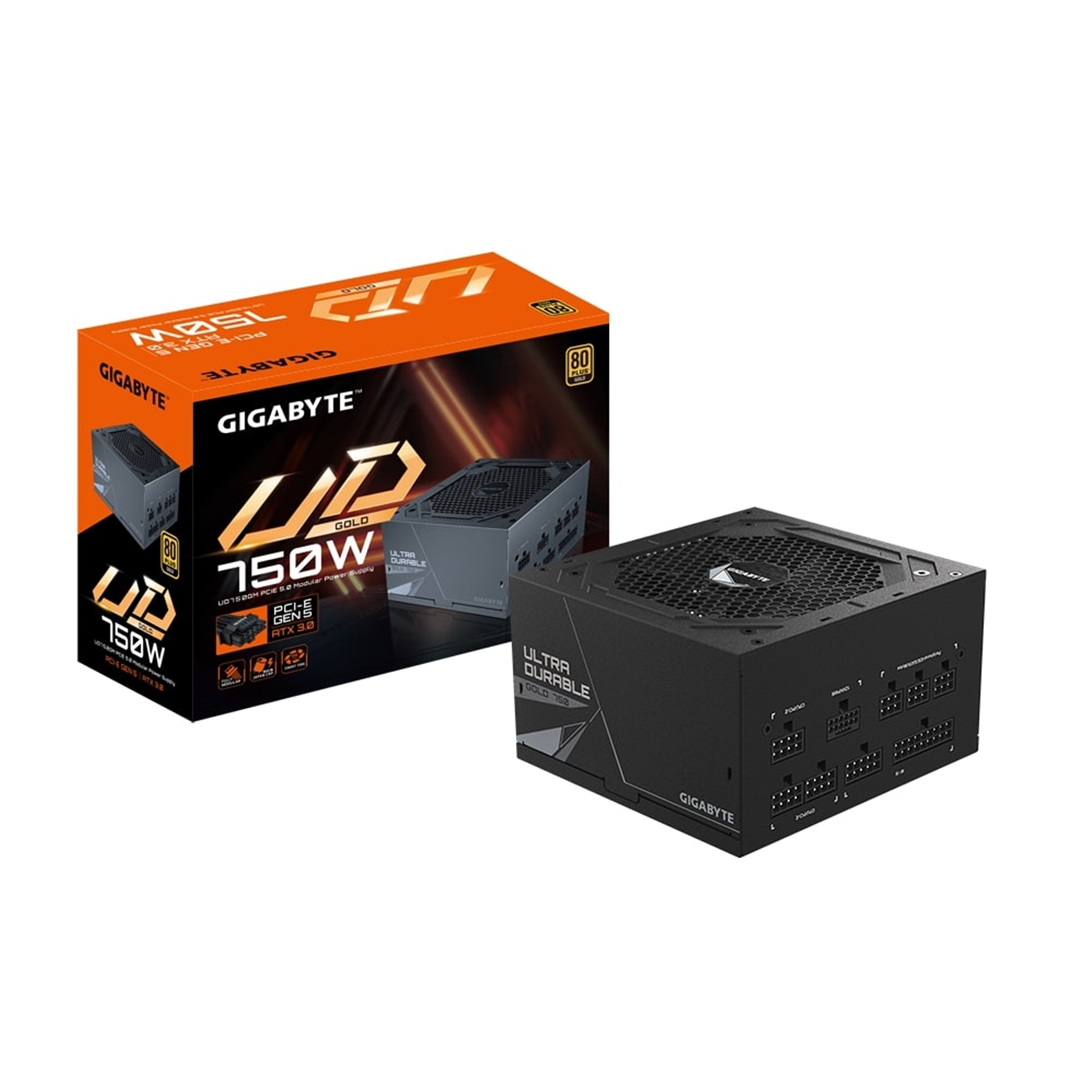

The Gigabyte GP-UD750GM PG5 is a high-performance power supply unit designed to meet the needs of modern PC builds. It features a fully modular design, 80 PLUS Gold certification, and support for PCIe Gen 5.0 graphics cards, making it ideal for high-end gaming and professional applications.

Key Features
Ultra Durable
Main Japanese capacitors
Enhanced thermal solution
120mm smart hydraulic bearing (HYB) fan
OVP/OPP/SCP/UVP/OCP/OTP protection
Support PCIe Gen 5.0 graphics cards
Support Intel ATX 3.0 standard
80 PLUS Gold certified
Fully modular design
Compact design
5 years warranty (Adjusted according to different regions)

Specifications

Type
Intel Form Factor ATX 12V v3.0

PFC
Active PFC (>0.9 typical)

Input Voltage
100-240 Vac (full range)

Input Current
12-6A

Input Frequency
60-50 Hz

Output Capacity
750W

Fan Type
120mm smart hydraulic bearing (HYB) fan

Efficiency
90% at typical load

MTBF
100,000 hours

Protection
OVP, OPP, SCP, UVP, OCP, OTP

Certifications
80 PLUS Gold

Dimensions
150 x 140 x 86 mm

Power Good Signal
100-150ms

Hold Up Time
>16ms

Cable Type
Flat, All black

Connectors
ATX/MB 20+4 Pin x 1: 610 mm x 1
CPU/EPS 4+4 Pin x 2: 600 mm + 200mm x 1
PCIe 16 Pin x 1: 700 mm x 1
PCIe 6+2 Pin x 4: 600 mm + 150 mm x 2
SATA x 8:
600 mm +150 mm +150 mm +150 mm x 2
4 Pin Peripheral x 3+4-Pin floppy x 1: 500 mm +120 mm +120 mm +150mm x 1

Manufacturer's Website:

www.gigabyte.com

Warranty:

5 Years Return To Base Warranty

DESIGN
Product colour	Black
Number of fans	1 fan(s)
On/off switch	Yes
Cooling type	Active
Fan diameter	12 cm
Fan location	Top
ENERGY MANAGEMENT
Input current	12 A
Efficiency	90%
Hold time	16 ms
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	105 W
Combined power (+12V)	732 W
Combined power (+5V)	105 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	20 A
Max output current (+12V)	61 A
Max output current (+5V)	20 A
Max output current (-12V)	2.3 A
Max output current (+5Vsb)	3 A
AC input voltage	100 - 240 V
Total power	750 W
LOGISTICS DATA
Harmonized System (HS) code	84733020
OTHER FEATURES
Harmonized System (HS) code	84733020
PACKAGING CONTENT
Cables included	CPU, PCIe, Peripheral (Molex), SATA
PACKAGING DATA
Cables included	CPU, PCIe, Peripheral (Molex), SATA
PERFORMANCE
Mean time between failures (MTBF)	100000 h
Purpose	PC
Bearing technology	HYB
ATX version	2.31
80 PLUS certification	80 PLUS Gold
Power supply unit (PSU) form factor	ATX
PORTS & INTERFACES
Floppy disk drive connector	Yes
Motherboard power connector	20+4 pin ATX
Floppy drive power connector	1
Number of SATA power connectors	8
Peripheral (Molex) power connectors (4-pin)	3
ATX power connector (20+4 pin)	Yes
CPU power connector (4+4 pin)	Yes
PCI Express power connectors (6+2 pin)	4
Cabling type	Fully-Modular
Motherboard power cable length	61 cm
SATA power cable length	150,300,450,600 mm
CPU power cable length	60 cm
Peripheral (Molex) power cable length	120,500 mm
PCI Express power cable length	60 cm
Floppy disk drive cable length	15 cm
EPS power connector (4+4 pin)	Yes
WEIGHT & DIMENSIONS
Height	86 mm
Width	150 mm
Depth	140 mm
