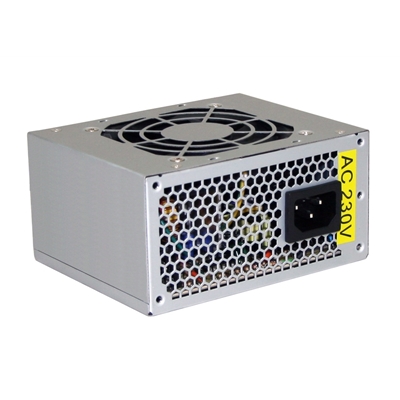

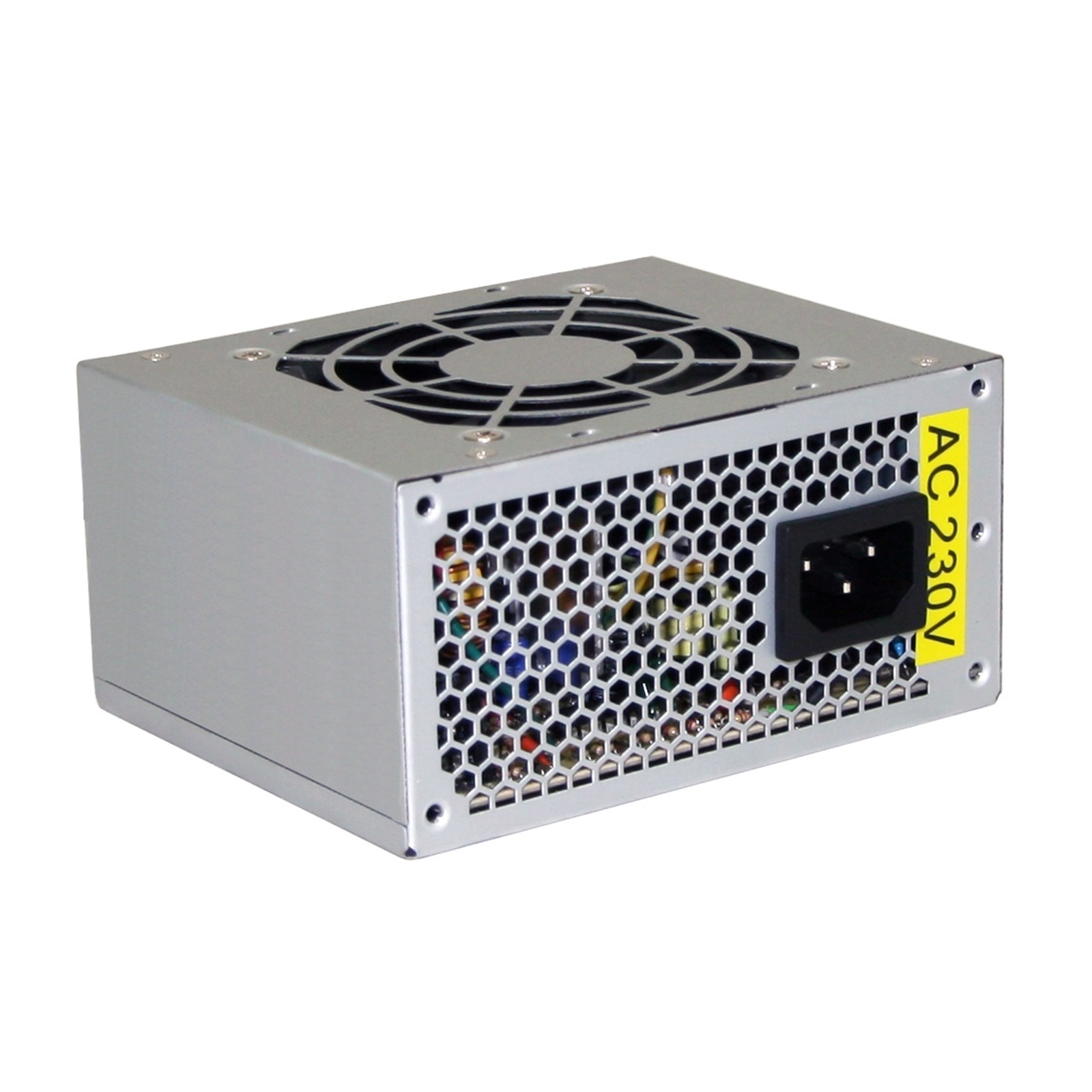

Target M-400U 400W Ultra-Quiet Micro ATX Power Supply, Reliable SFX Replacement PSU for Compact Home & Office Desktop PCs, Silent 8cm Temperature Control Fan, Grey

PSTAR-400MICRO
Key Specifications
Wattage400W
Size/VersionSFX
ModularNo
SATA Connections2
CertificationNone
ColourGrey
Manufacturer : TARGET
EAN : 5053118548723
Manufacturer Part Code : M-400U
Weight : 0.75 kg
Login For Pricing

Key Specifications
Wattage400W
Size/VersionSFX
ModularNo
SATA Connections2
CertificationNone
ColourGrey
Manufacturer :
TARGET

EAN :
5053118548723

Manufacturer Part Code :
M-400U

Weight :
0.75 kg
Recommended Products
1281Cases
See details
1284Power Supplies
See details
1333Power Cables
See details
CLTAR-RB-250Power Cables
See details


Key Features:
•Silent PSU with Temperature Control Fan
•ATX 12V Compliant for all kinds of CPU and mainboard
•MTBF 50,000 Hours @ 25 degrees C
•2 x SATA Connectors
•4 x 4-Pin Molex Connectors

Model
M-400U

Type
Intel ATX12V 2.31VER

Dimension (W / H / D)
125mm x 65mm x 100mm

Input Voltage
230Vac

Input Current
4A

Input Frequency Range
50 ~ 60 Hz

PFC
Yes - Passive Power Factor Control

Power Good Signal
150-450 ms

Hold Up Time
1ms-40ms

Efficiency
>75% Typically

MTBF
>100,000 hrs

Protection
OVP / UVP/ OPP

Output Capacity
400W

Operation Temperature
45°C

Fan
80mm

Certifications
CE / FCC / RoHS

Connector
20+4 Pin Main Connectors x 1
P4 4-Pin 12V Connectors x 1
4-Pin Molex Peripheral Connectors x 4
SATA Connectors x 2
Floppy Drive Connectors x 1
Warranty:
1 Year Return To Base Warranty

Return-to-Base warranty returns are processed within 14 business days of confirmed date of receipt - see our Returns Policy for more information.
CERTIFICATES
Certification CE / FCC / RoHS
DESIGN
Product colour Grey
Number of fans 1 fan(s)
Cooling type Active
Fan diameter 8 cm
ENERGY MANAGEMENT
Input current 4 A
Efficiency 75%
Hold time 40 ms
Power protection features Over voltage, Under voltage, Over power
Power Factor Correction (PFC) type Passive
AC input frequency 50/60 Hz
AC input voltage 230 V
Total power 400 W
PERFORMANCE
Certification CE / FCC / RoHS
Mean time between failures (MTBF) 100000 h
Purpose PC
Power supply unit (PSU) form factor SFX
PORTS & INTERFACES
Floppy disk drive connector Yes
Motherboard power connector 20+4 pin ATX
Number of SATA power connectors 2
Peripheral (Molex) power connectors (4-pin) 4
ATX power connector (20+4 pin) Yes
CPU power connector (4+4 pin) Yes
WEIGHT & DIMENSIONS
Weight 750 g
Height 65 mm
Width 125 mm
Depth 100 mm
